Super High-Pressure Hydraulic Pump Station

Super High-Pressure Hydraulic Pump Station made in China Ningbo Lingkai Machinery is especifically designed to cater to cutting tools, hydraulic compressors, punching machines, and other construction machinery that operate in the field.

Send Inquiry

Product Description

Ningbo Lingkai Machinery now offer the high quality new Super High-Pressure Hydraulic Pump Station, which is three times faster than the old one and weighs less than 10 kg, for your added convenience. This pump station's aluminum alloy oil tank dissipates heat more quickly than it did previously. It requires little effort to operate and yields fast results.

Support and Services:

Our Super High-Pressure Hydraulic Pump Station is a high-quality product designed to meet the needs of professionals and DIY enthusiasts alike. We offer a range of technical support and services to ensure that our customers get the most out of their investment.

Our team of experts is available to answer any questions you may have about our products and provide assistance with installation, troubleshooting, and maintenance. We also offer training sessions for users who want to learn how to use our Super High-Pressure Hydraulic Pump Station safely and efficiently.

In addition, we provide repair and calibration services to ensure that your Super High-Pressure Hydraulic Pump Station is always working at its best. Our technicians are highly skilled and use the latest tools and equipment to get the job done quickly and efficiently.

At our company, we pride ourselves on providing excellent customer service and support. We are committed to ensuring that our customers are satisfied with their purchase and have a positive experience using our products.

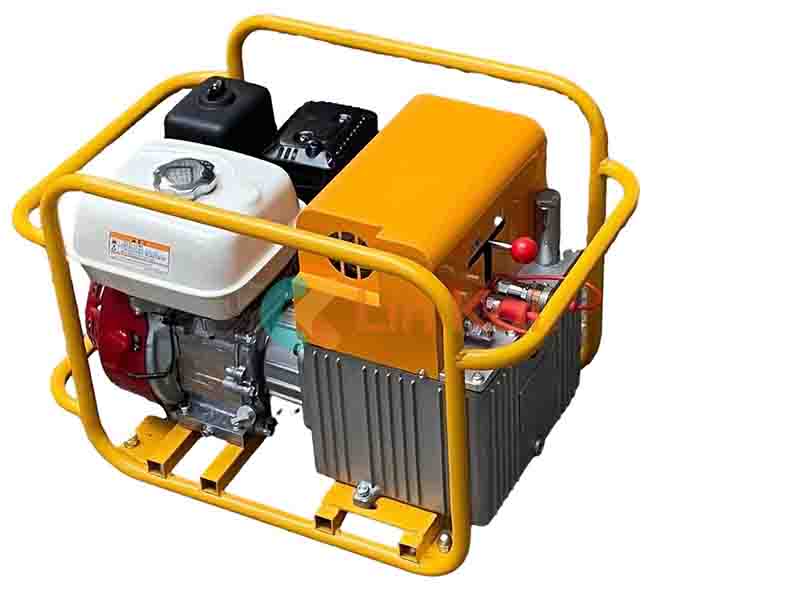

Super High-Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.

Description

Hydraulic Pressure (MPa)

Max

Pressure

(Mpa)

Oil Flow (L/min)

Power (HP)

Weight (kg)

16146

Gasoline motor driven hydraulic pump station mounted on hand cart

11.02-2.05

5.0

It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.

A normal hydraulic hose is three meters long. Extended Hose is not required.

Hydraulic Conductor Compressor Machine For ACSR Conductors

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Hexagon Compression Die Sets for Conductor Earthwire

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
