Hexagon Compression Die Sets

LingKai offers customized hexagon compression die sets that may be manufactured to fit the specifications of client designs. Durable hexagon compression die sets at the best price come with warranties extending beyond three years. Our specially made dies feature an outside compression terminal diameter (L for aluminum and G for steel) that corresponds to the compressor type.

Send Inquiry

Product Description

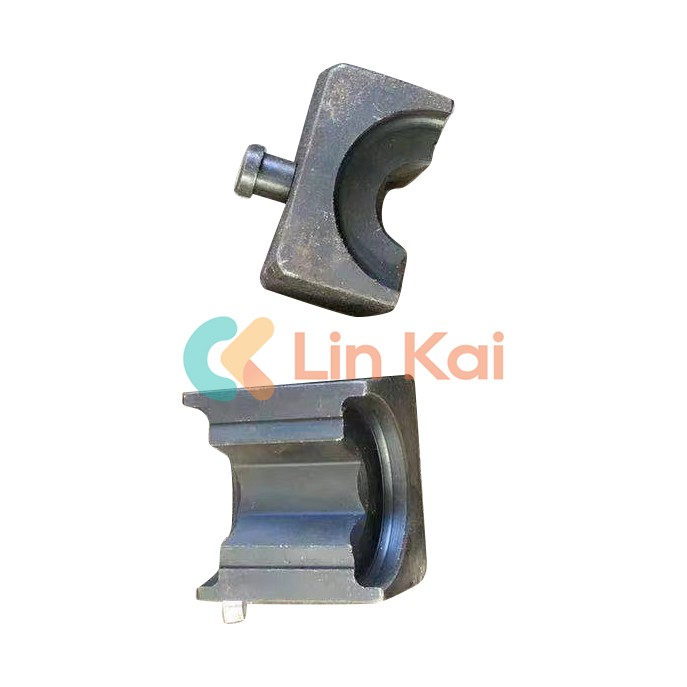

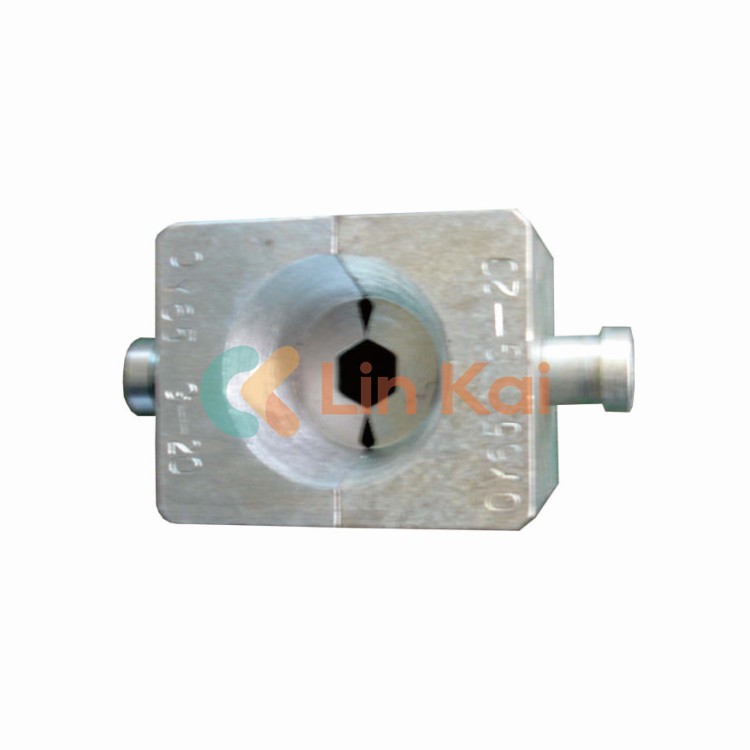

LingKai's customized hexagon compression die sets are accessories for the hydraulic compressor head with a motorized hydraulic pump for compression of the conductor joint or earth wire joint. It is cast from high-strength steel. The moveable dies could assist operators in taking out dies after crimping very easily.

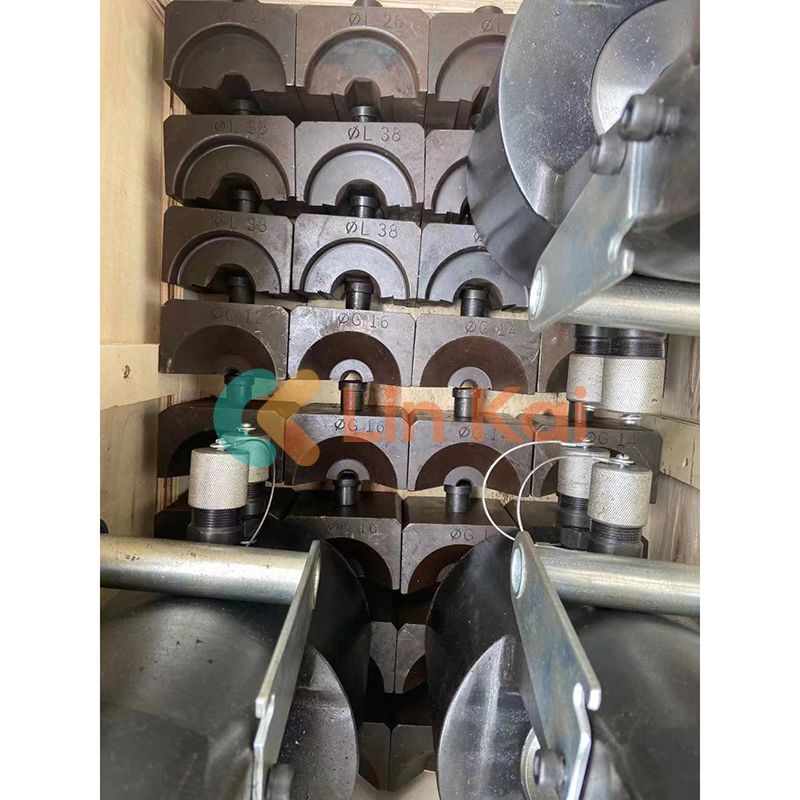

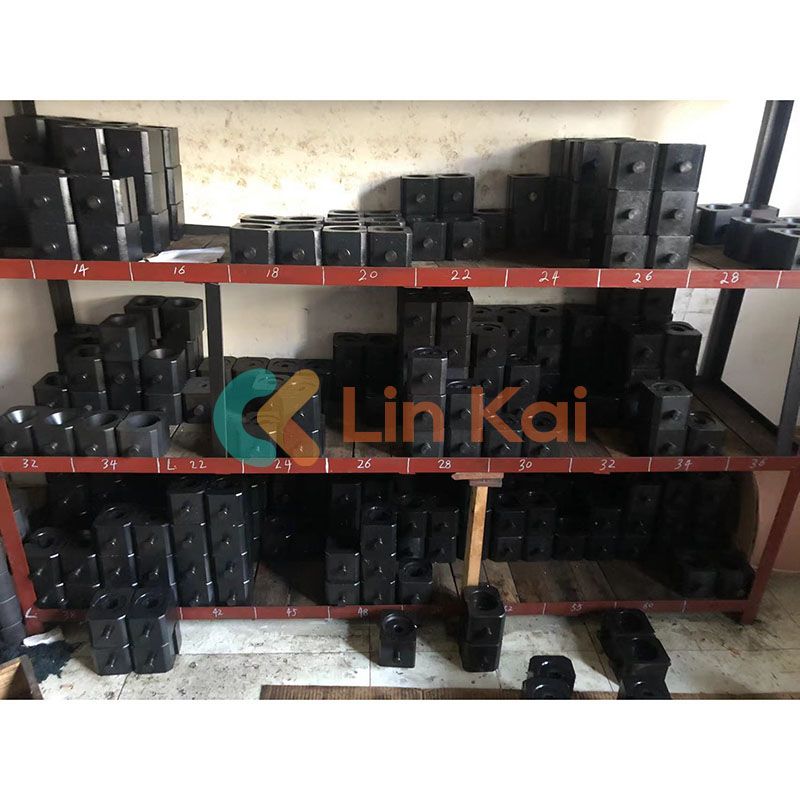

hexagon compression die sets in stock has the Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)

And the Hexagonal Die sets could be made according to the requirement of customer.

Parameters on hexagon compression die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mmG -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mmG -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm

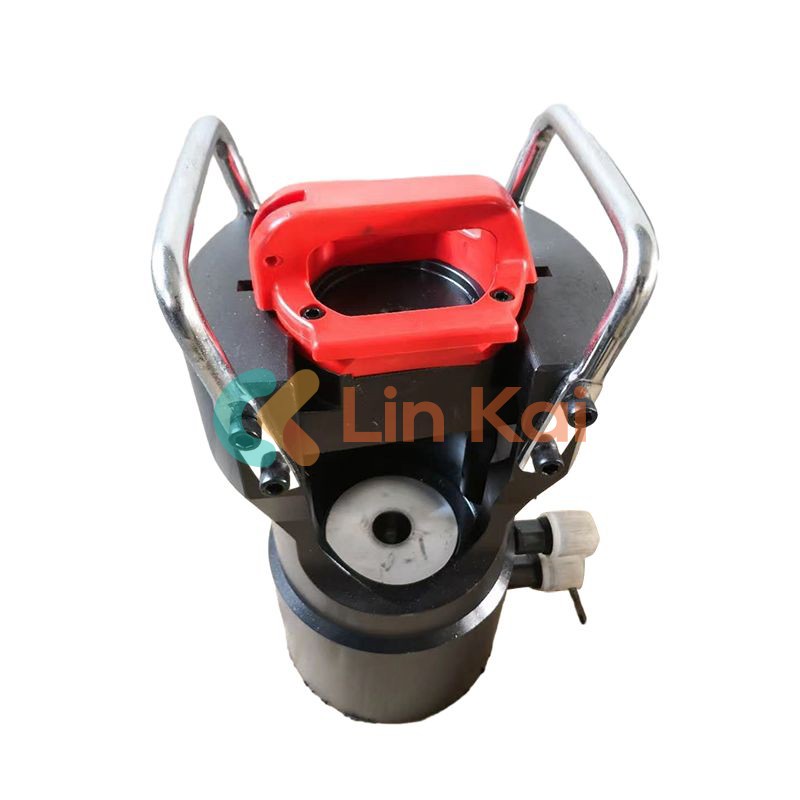

Hydraulic Conductor Press Machine for Conductor Joints

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

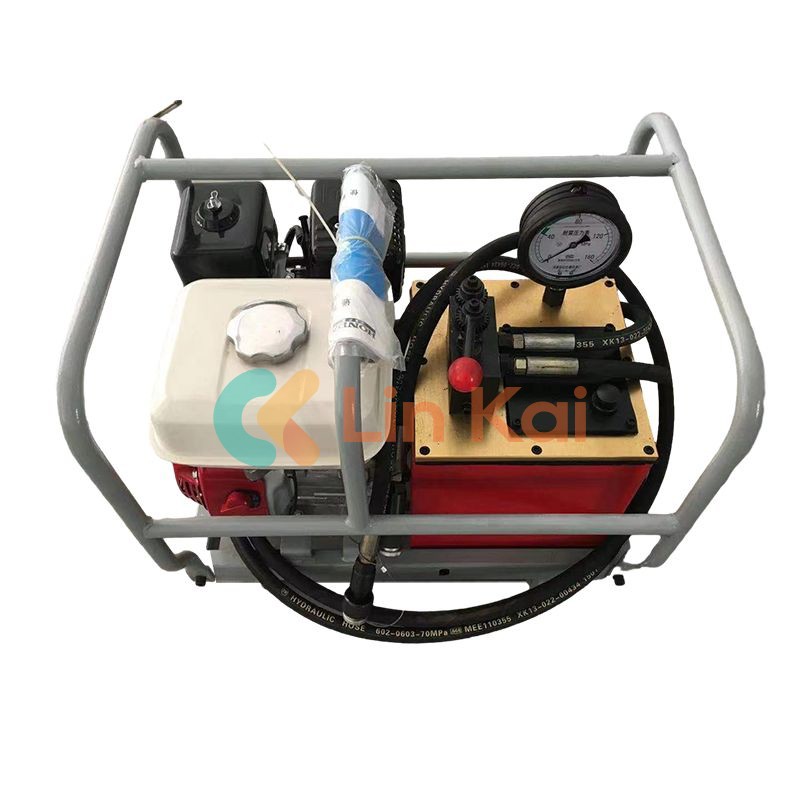

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	2.05	5.0	68

Note: The pump stations only act as power sources for hydraulic compressors or other equipment. The Gasoline motor is HONDA GX160.The length of standard hydraulic Hose is 3 meters. Longer Hose is optional.
