Hydraulic Puncher

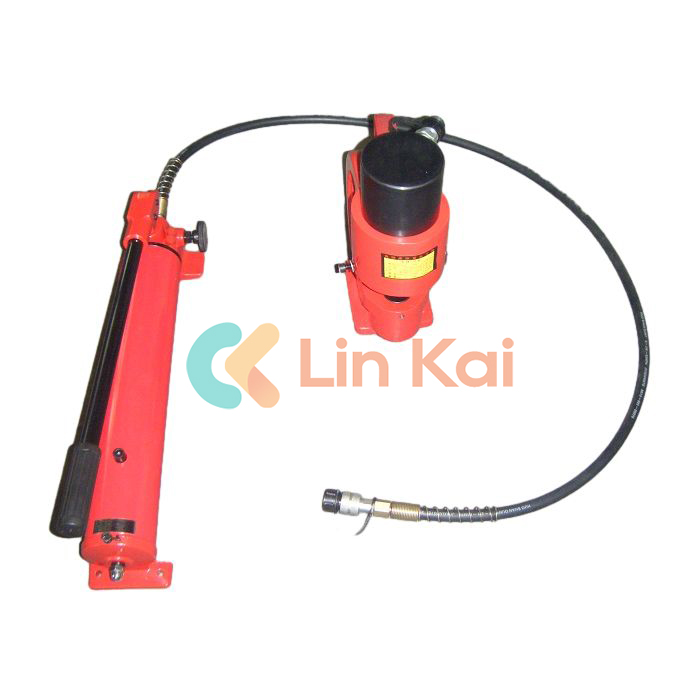

The hydraulic puncher that LingKai has on hand is made to punch holes in Cu/Al bus bars; it has an output of 30 and 35 tons. The Hydraulic Puncher comes with free die sets in a wooden container; it requires either an electric or manual hydraulic pump.

Send Inquiry

Product Description

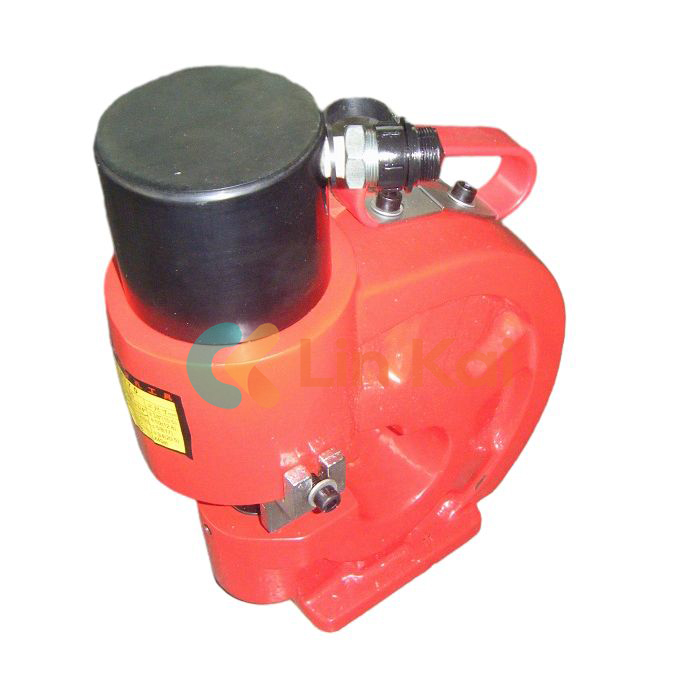

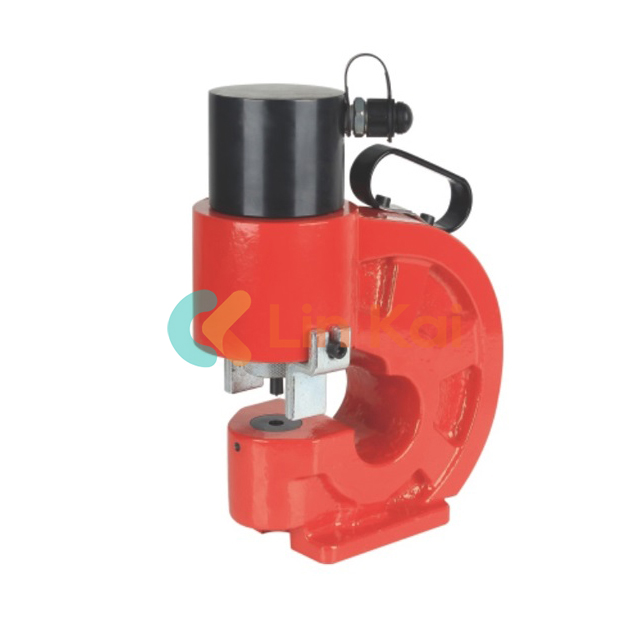

Hydraulic Puncher made in China by LingKai Manufacturer is designed for punching holes in Cu or Al bus bars. It is also used for drilling a supplemental hole in an erected tower.

The Hydraulic Puncher is very fast-speeding, punching in an accurate position without deviation. All kinds of punching dies could be ordered. The tools are useful for working on towers, are light in weight, and are easy to operate.

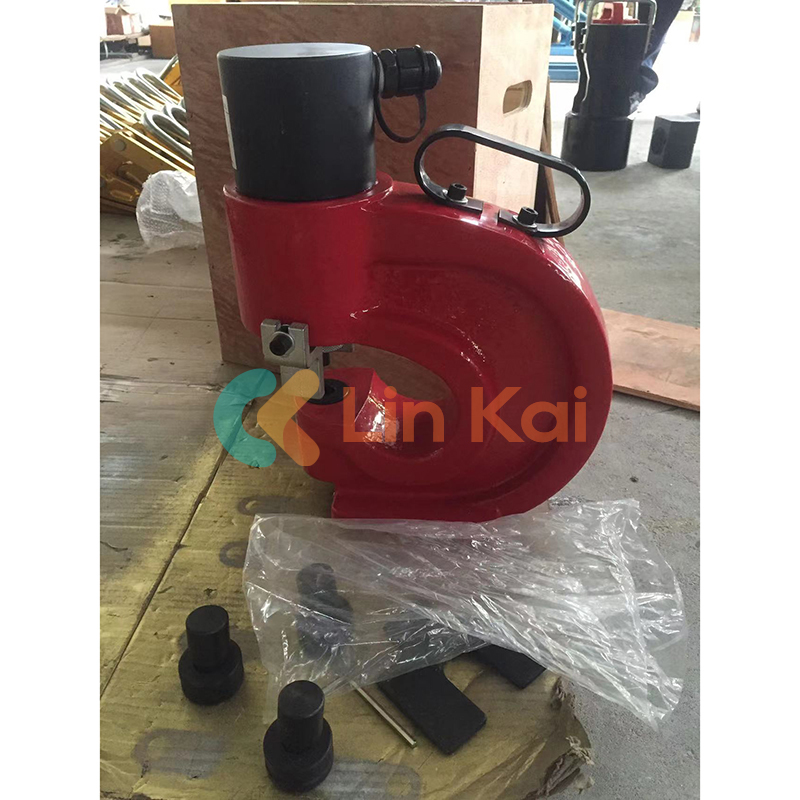

Whole sale Hydraulic Puncher could avoid cutting scraps while punching holes. It is much safer and clearer during operation. A portable unit could be taken to the site or fixed in the factory for batch punching work. Standard assembly of four dies in 10.5, 13.5, 17, 18, and 20.5 mm is supplied with the puncher. We packed in a wooden box, one fixing spanner, and one hexagon spanner assembled.

Hydraulic Puncher data sheet

Model	Output (T)	Working range(mm)	Die	Throat depth (mm)	Weight (kg)
CH60	30T	D 20.5x8mm	10.5;13.5;17.5;20.5	90	14
CH70	35T	D 20.5x12mm	10.5;13.5;17.5;20.5	110	28
CH70B	31T	D 20.5x10mm	10.5;12;17.;20.5	75	10

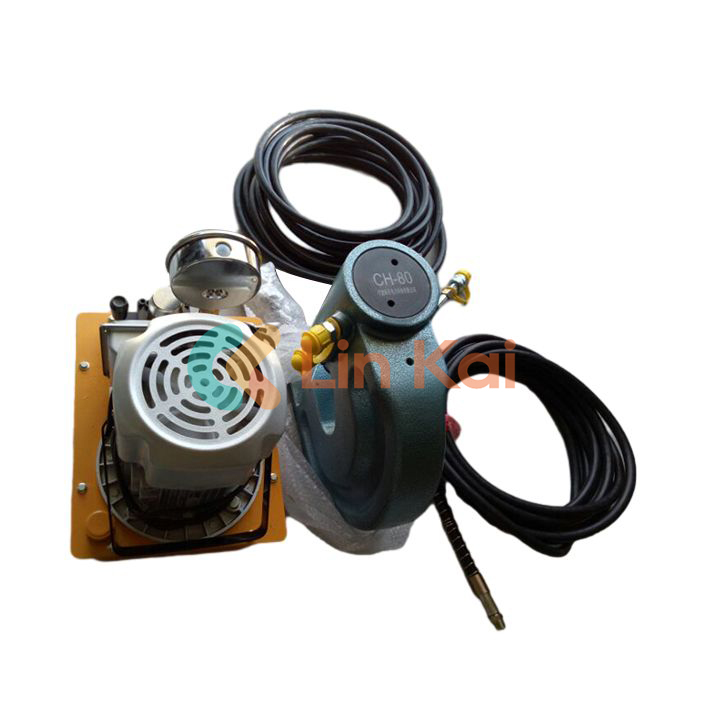

CH80	35T	D 25x16mm	16;118;22;25	115	30
