Hydraulic Conductor Press Machine

China-made Lingkai bulk hydraulic conductor press machine with capacities of 25T, 45T, 65T, 125T, 200T, and 300T. For the power transmission line, they are hydraulic compression tools with a motorized hydraulic pump. Copper aluminum terminals, earth wires, and conductors may all be compressed with the Boom hydraulic compressor. With a Honda engine that runs quickly and steadily, this high pressure hydraulic pump is simple to use and maintain.

Send Inquiry

Product Description

Wholesale high-quality Hydraulic Conductor Press Machine be made by Ningbo Lingkai Manufacture, it is designed for crimping overhead tension sleeve on 110LV or above, also for underground cable crimping. Hydraulic Conductor Press Machine in stock, it has the range from 25T to 300T, and it wide crimping range and less crimping times could reduce crimping distortion and control elongation.

Hydraulic compressor with a hydraulic conductor press machine is used for conductor jointing in transmission line stringing operations. Duel active hydraulic cylinders could prevent spring from elastic fatigue and avoid the trouble of slow reset.

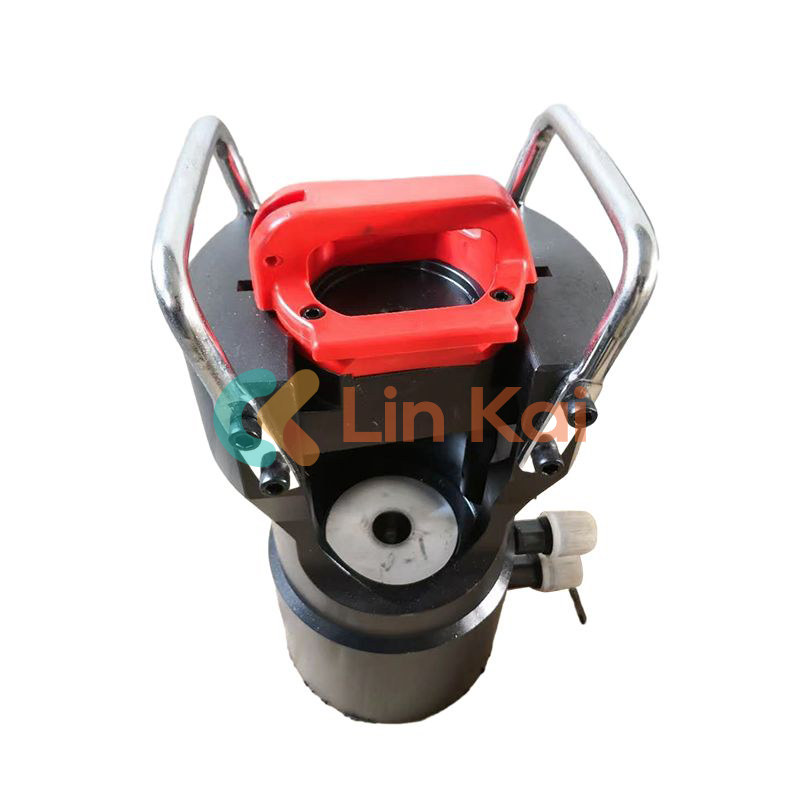

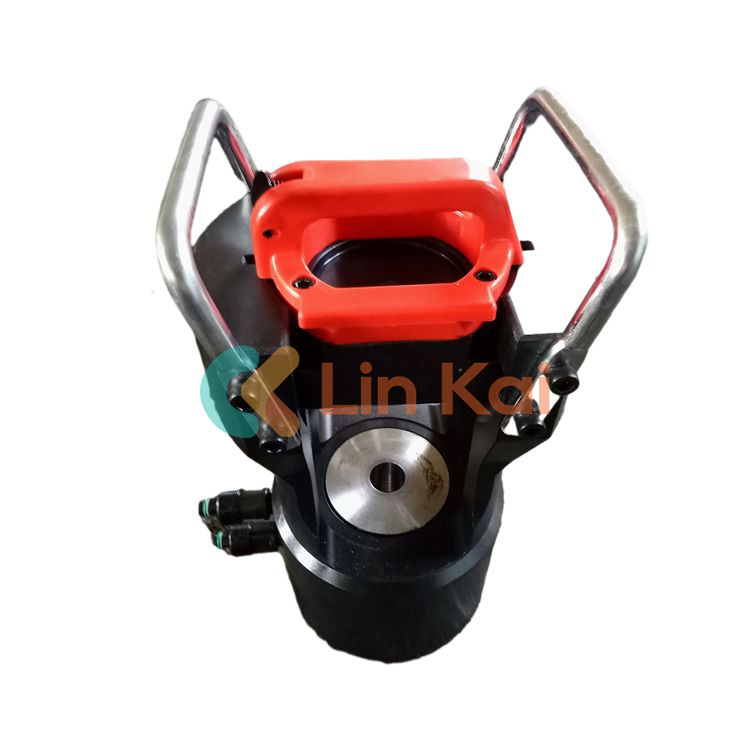

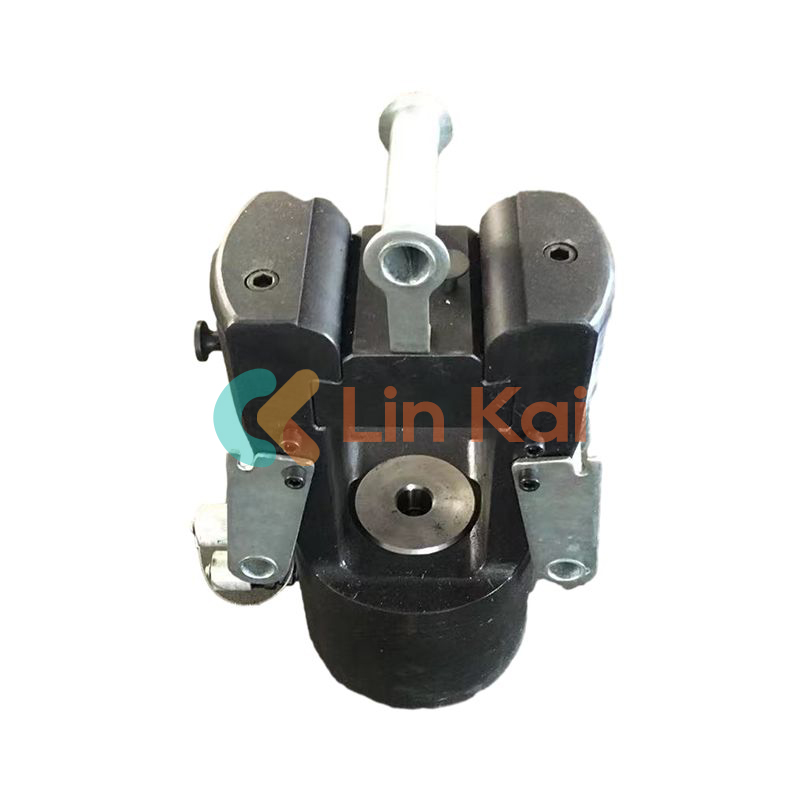

The moveable dies of Hydraulic Conductor Press Machine could assist operator taking out dies after crimping. Rotating die cover could open and close quickly to make operation and position much easier.

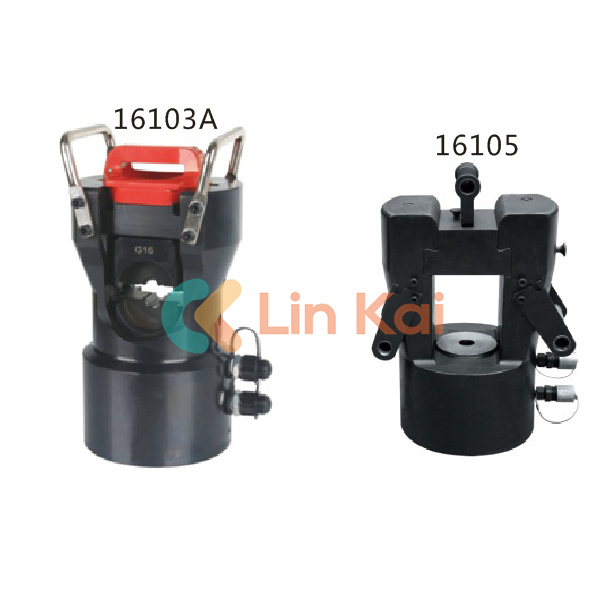

Hydraulic Conductor Press Machine for Conductor Joints

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

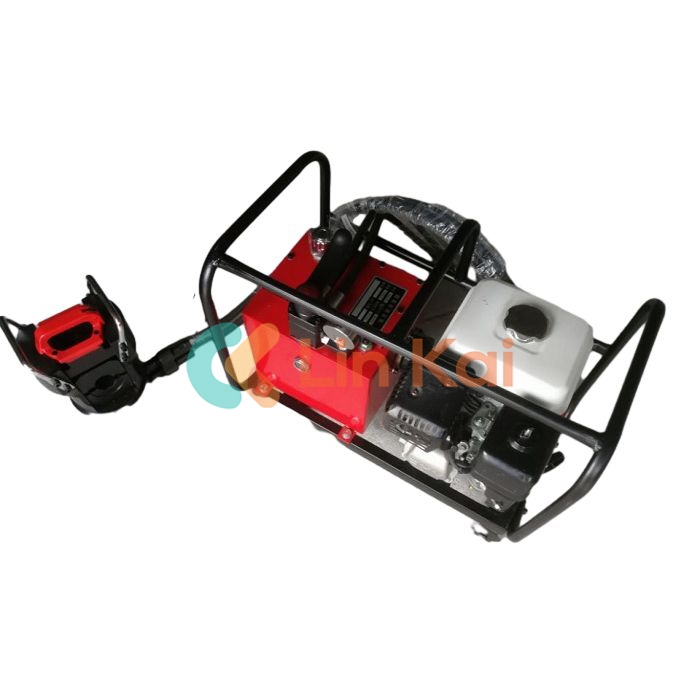

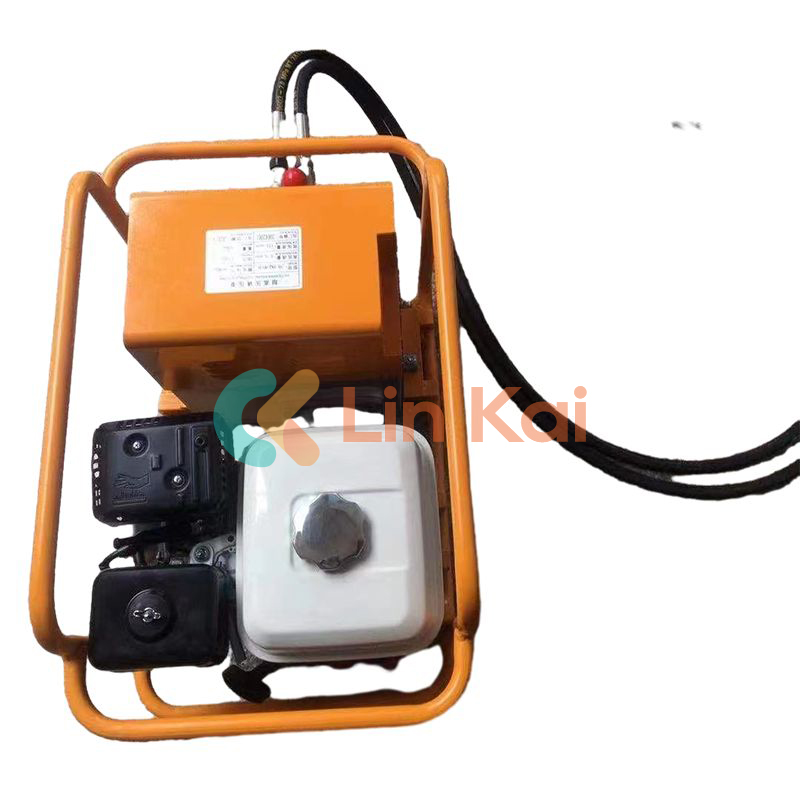

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	2.05	5.0	68

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mmG -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mmG -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
