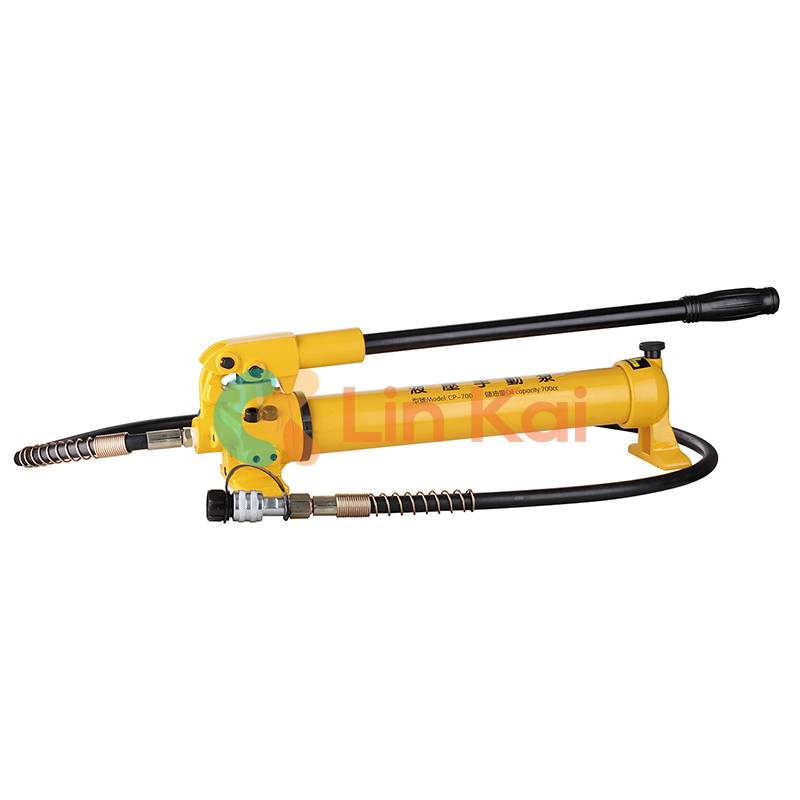

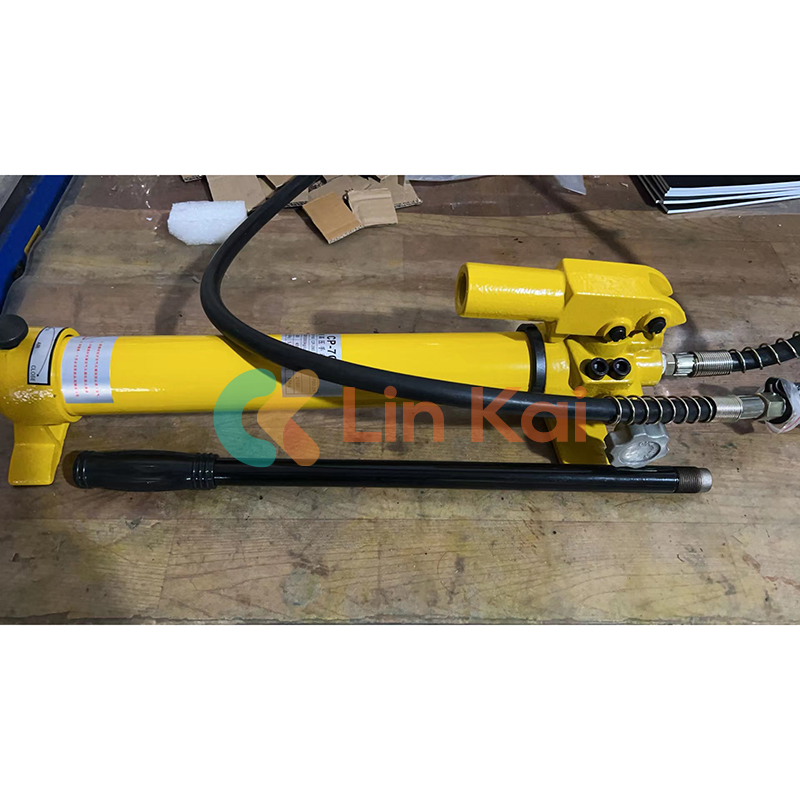

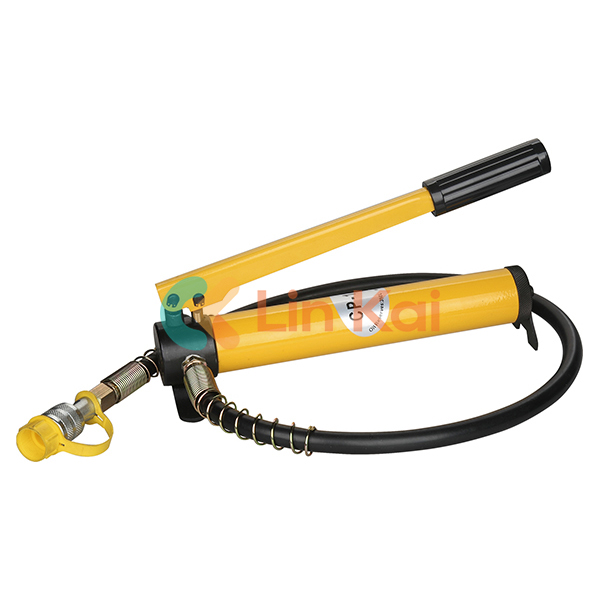

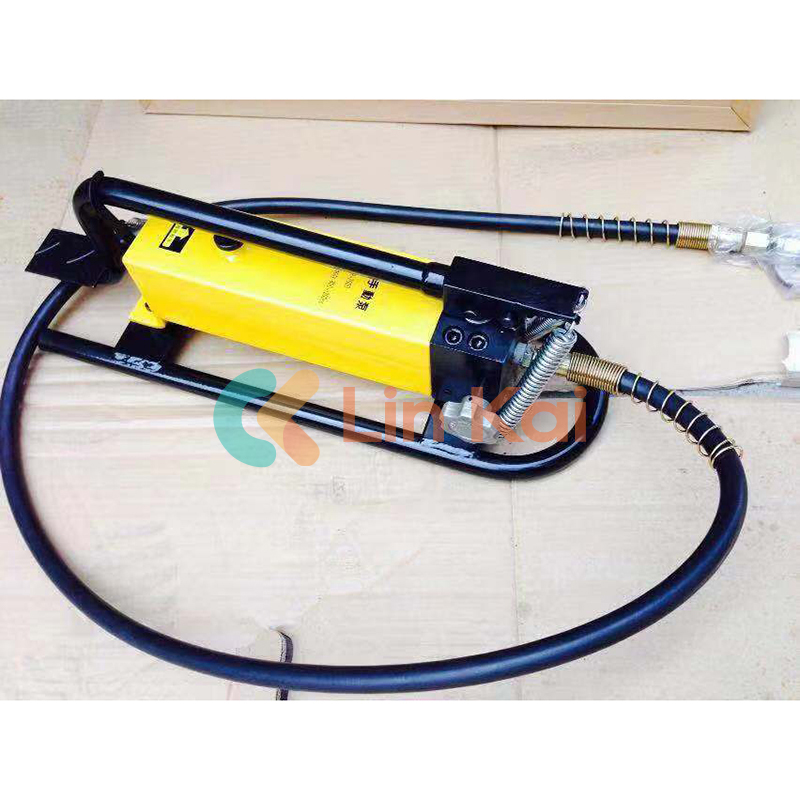

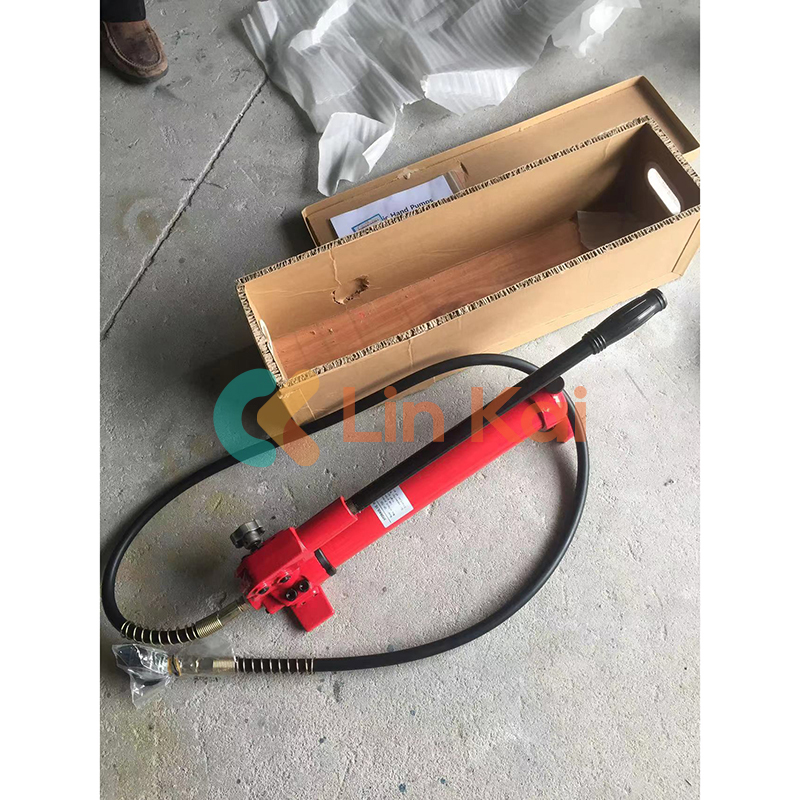

Manual Hydraulic Pump

With two different types of foot and hand pumps, LingKai's Manual Hydraulic Pump is available in China and serves as the source power unit for hydraulic cutters, crimping tools, punchers, and other hydraulic equipment. This set is utilized for both underground cable crimping sites and overhead line power operations. The Low Cost Manual Hydraulic Pump features a low and high oil delivery stroke with a maximum pressure rating of 700 kgf/cm2/psi.

Send Inquiry

Product Description

Manual Hydraulic Pump manufacture name Ningbo Lingkai in China making various hydraulic pumps, such as the foot pump, hand pump, electric pump and super high pressure gas pump.

The Whosale Manual Hydraulic Pump is designed in two stages: high and low speed, for quick oil output. Even if the site lacks electric power, operations could still be carried out conveniently. The function is the same as that of an electric pump at any working pressure. Manual hydraulic pump is the pedal operation type; the operator could work while hand-gripping a tool or object. The pressure could be stopped in the middle, and the inner high-pressure safety unit protects the hydraulic valve.

Manual Hydraulic Pump one-year warranty has a wide hydraulic pump base for fixing frames, which could improve the stability of operation at work. The oil pipe is fitted with quick coupling and can be ordered in any length.

Manual Hydraulic Pump data sheet

Model	Pressure rating(kgf/cm2/psi)	Oil delivery(CC/stroke)		Reservoir capacity(cc)	Weight (kgs)
CFP-800-1	700	Low:13	High2.3	800	10
CP-700C	700	Low:13	High2.3	900	3.8
CP-700D	700	Low:9.8	High1.9	3000	15
CP-180	700	Low:13	High2.3	400	5.4
CP-700	700	Low:13	High2.3	1100	11
CP-700-2	700	Low:13	High2.3	2700	14.5
