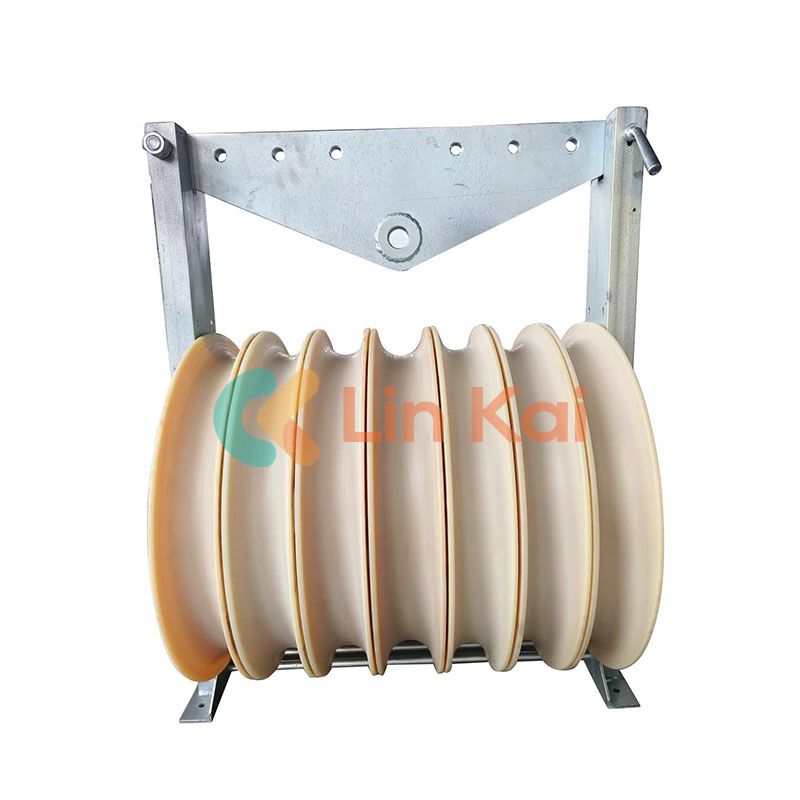

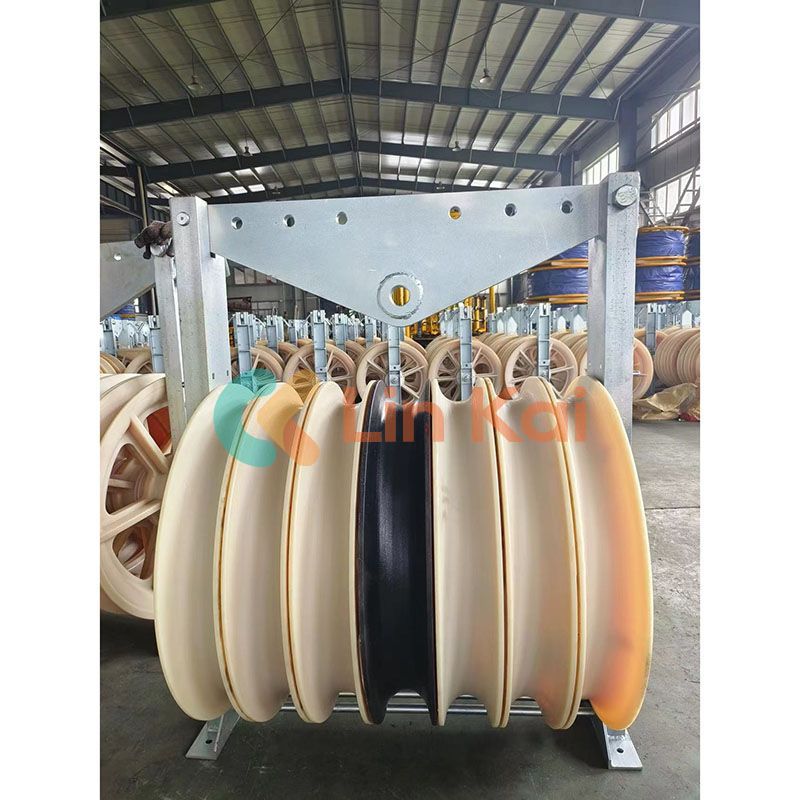

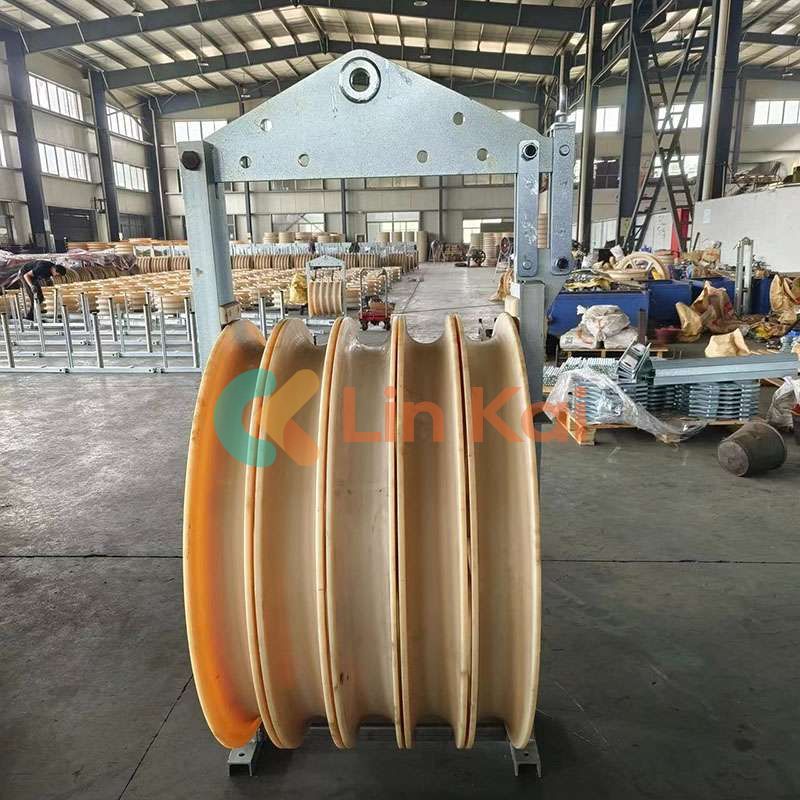

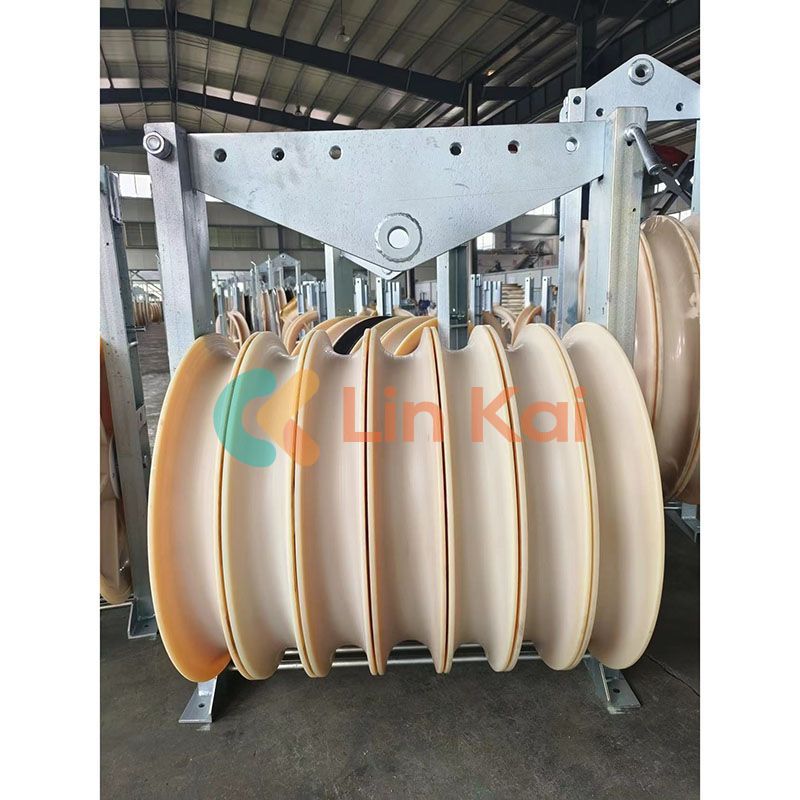

Bundle Conductor Stringing Blocks

Medium-sized conductors (17–25 mm) are typically strung in overhead transmission line construction using the wholesale Bundle Conductor Stringing Blocks 1 Years Warranty, which are developed by Ningbo Lingkai Transmission Equipment Co., Ltd. with over 20 years of expertise. The heads of the three different connection types—fixed (B), swivel-type (C), hook with safety lock (D), and others—can be customized with our assistance. We get a lot of business and a good reputation from Lingkai's 2-year guarantee on Durable Bundle Conductor Stringing Blocks.

Send Inquiry

Product Description

Stringing Bundle Conductors Typically, the utility industry uses Bundle Conductor Stringing Blocks Made in China manufactured at the Lingkai Transmission facility in China for overhead power line construction and maintenance. They are intended to support and direct cables when they are being strung or dragged between structures.

Parameters of Bundle Conductor Stringing Blocks

Item Number	Model	Number of Sheave	Rated Load (kN)	Weight (kg)	Features of Sheave
10101	SHD508	1	20	18	Rubber coated aluminum sheave
10102	SHS508	3	40	61	Middle: cast steel sheave Conductor: Rubber coated aluminum sheave
10103	SHW508	5	60	93
10104	SHDN508	1	20	16	MC nylon sheave
10105	SHSLN508	3	40	47	Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel
10106	SHWLN508	5	60	79
10107	SHSQN508	3	40	43	MC nylon sheave
10108	SHWQN508	5	60	70	MC nylon sheave

Block dimension Φ508×Φ408×100(mm) can be customized

Lingkai Transmission's Bundle Conductor Stringing Blocks 1 Years Warranty are capable of handling heavy loads and can be used in transmission line construction, distribution line construction, and substation projects. They are made from high-strength aluminum alloy sheave, cast steel sheave, and MC Nylon. All the sheaves are mounted on ball bearings to help reduce friction and increase efficiency during the stringing process.
