High pressure Hydraulic Pump Station

：The superior High Pressure Hydraulic Pump Station from LingKai powers hydraulic compressors and other machinery and is the ultimate high pump. The large, extremely tall hydraulic pump station is outfitted with a Honda gasoline motor and engine. Fast speed, great stability, ease of use, and maintenance benefits characterize the Honda GX160. Extended hydraulic hose is available upon request, while the normal length is 3 meters.

Send Inquiry

Product Description

The high-quality motorized High Pressure Hydraulic Pump Station manuactured by LingKai is used with a hydraulic compressor head that is cast from high-strength steel for compression of the conductor joint or earth wire joint. The super High Pressure Hydraulic Pump Station has a double-stage pump output. The high and lower speeds have two stages for quick oil output. The turbine's oil absorption could ensure maximum, effective oil volume. High pressure is for driving pistons, and low pressure is for piston reset. The oil pipe fitted with quick coupling could be ordered at any length.

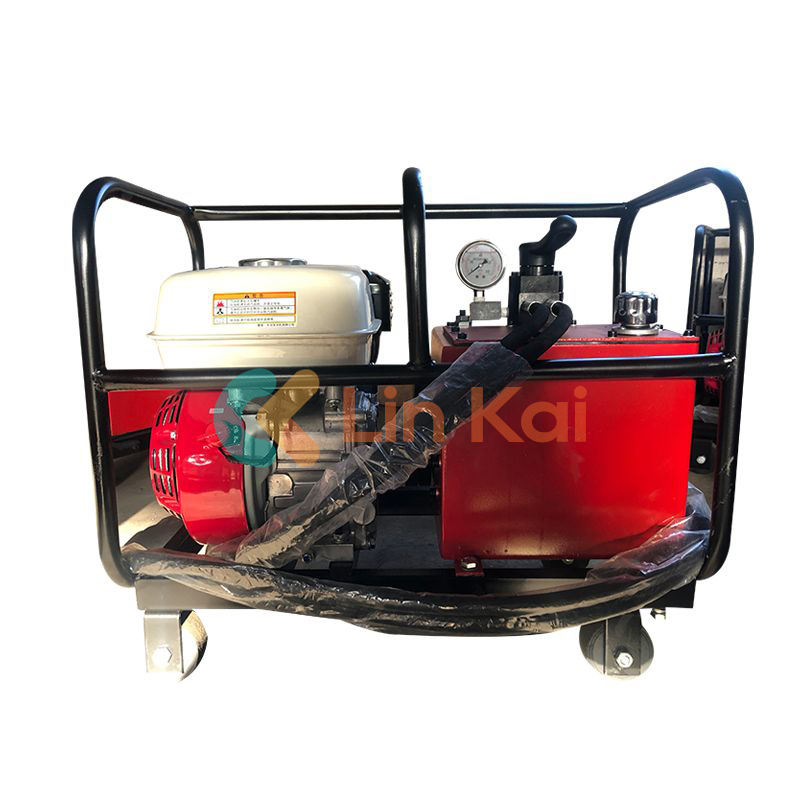

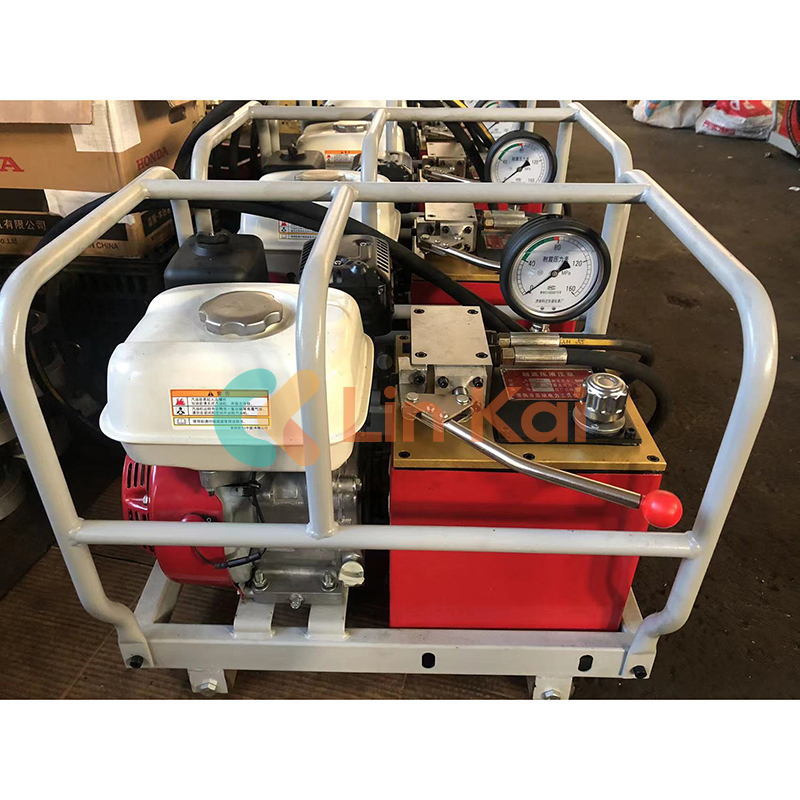

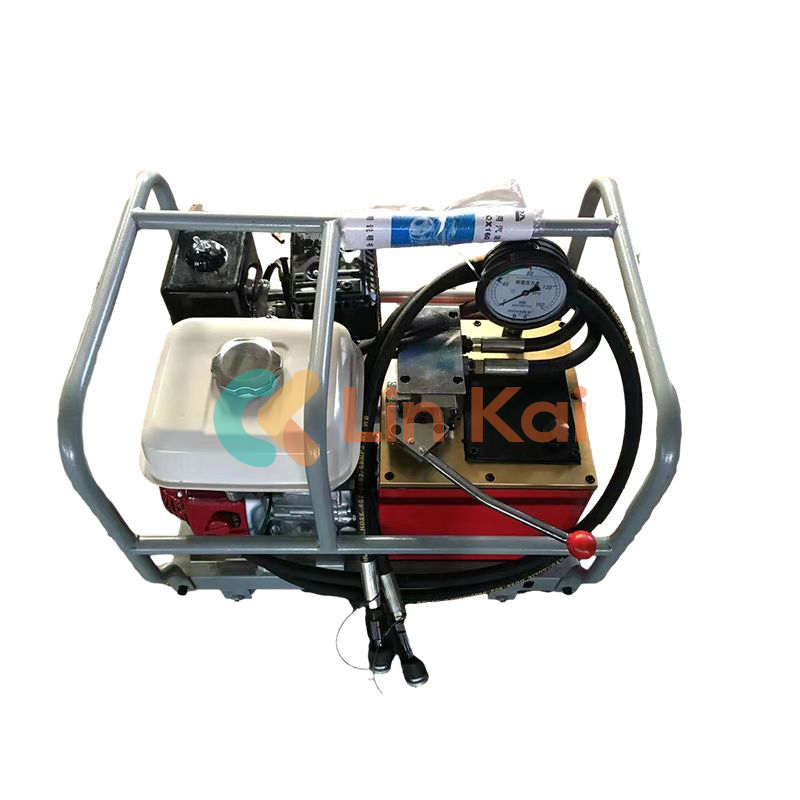

Our High Pressure Hydraulic Pump Station is in stock and has three different engines: gasoline, diesel, and electric. So if you want to get more information about the High Pressure Hydraulic Pump Station, you can contact us. Here below is a gasoline motor-driven hydraulic pump station mounted on a hand cart, the best sold with the hydraulic conductor press machine.

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (Hp)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	2.05	5.0	68

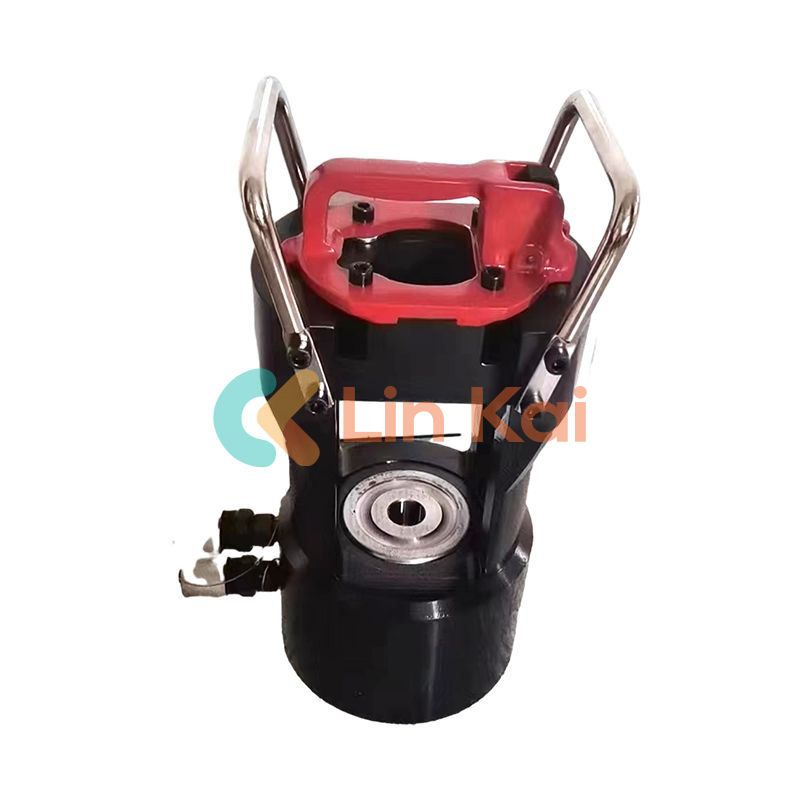

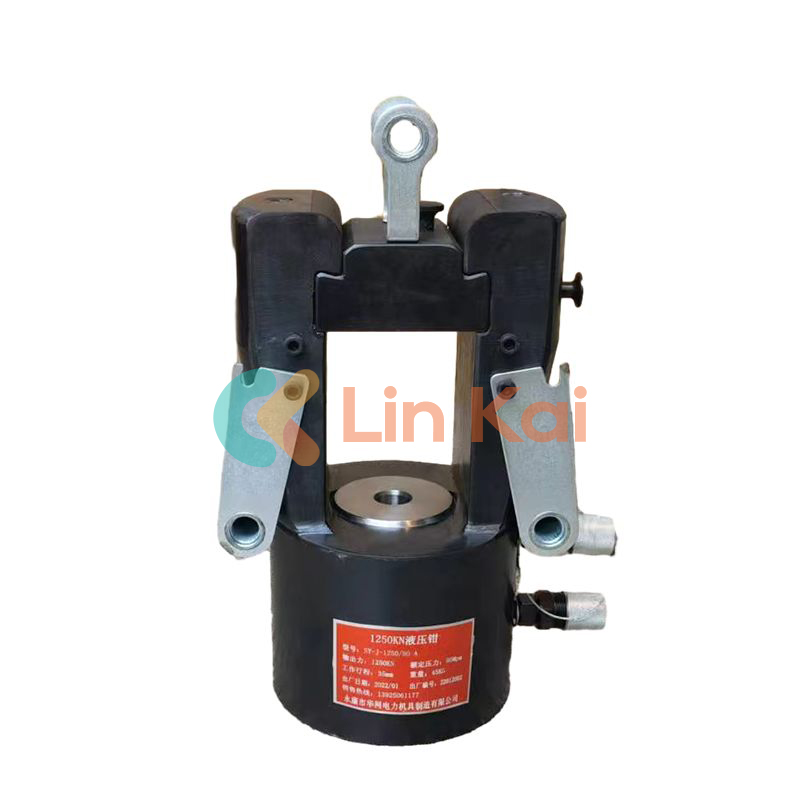

Hydraulic Conductor Press Machine for Conductor Joints

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Note: QY-25, QY-45 operated by hand or electric power pump; QY-65, QY-125, QY-200 operated by motorized hydraulic pump station with high pressure.

Please refer to Item No.16141-16153 for hydraulic pump stations; Item No. 16161-16163 for hand operated pumps.

Supplied with compression die sets. (See Item No. 16121-16126 and 16131-16134 for dies.)

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mmG -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mmG -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mmG -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
