Battery Powered Hydraulic Crimping Tools

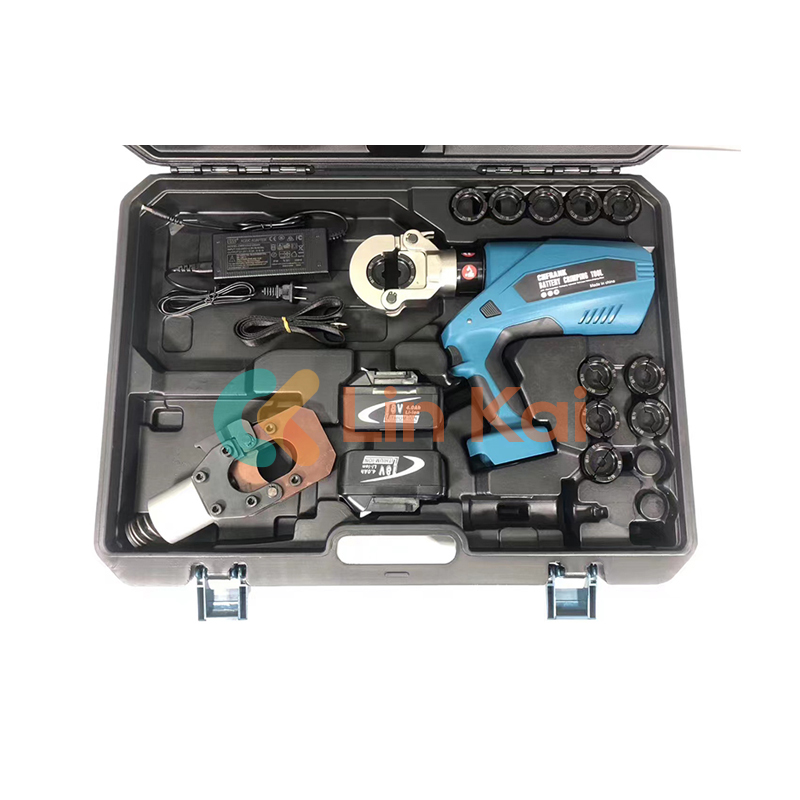

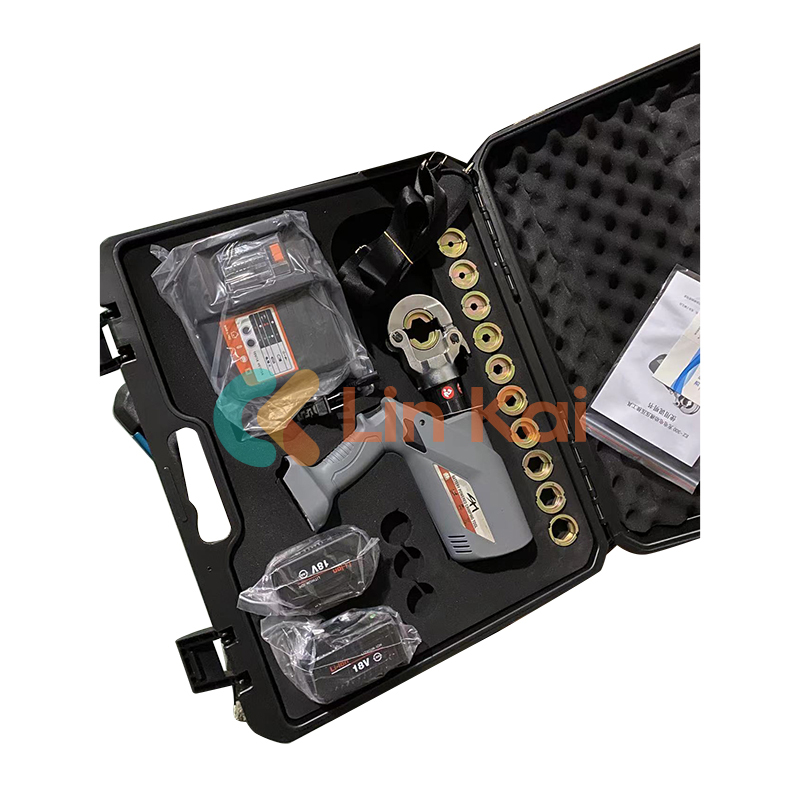

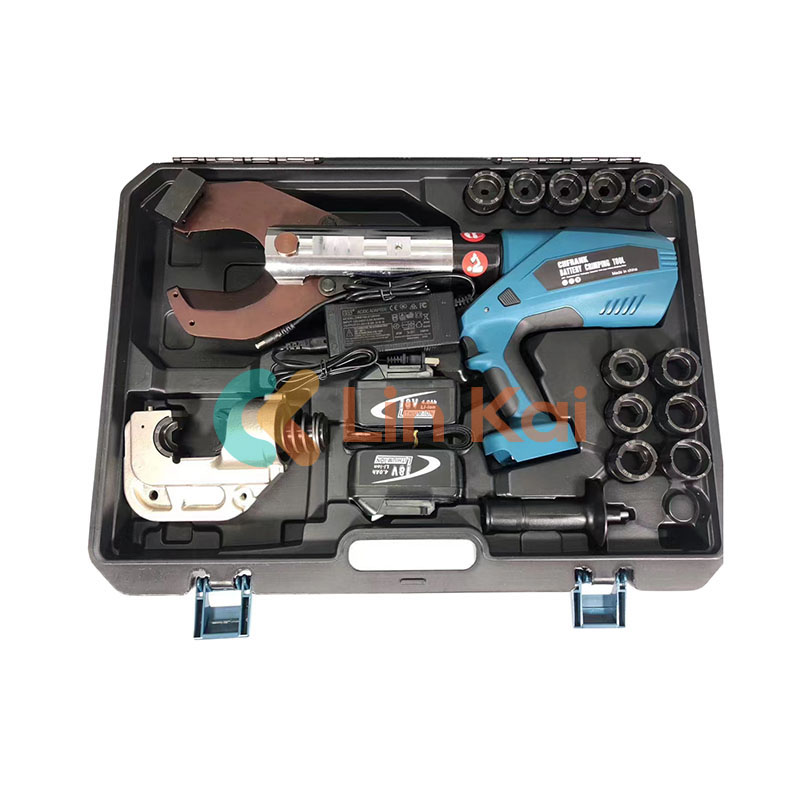

LingKai Factory offers battery powered hydraulic crimping tools that are designed to crimp Cu 10-300 mm2 and Cu 16-400 mm2. Superior quality accessories for battery powered hydraulic crimping tools include 12 sets of die, 2 batteries, 1 charger, and sealing rings for the safety valve and cylinder. Better balance and easier handling are features of our battery powered hydraulic crimping tools.

Send Inquiry

Product Description

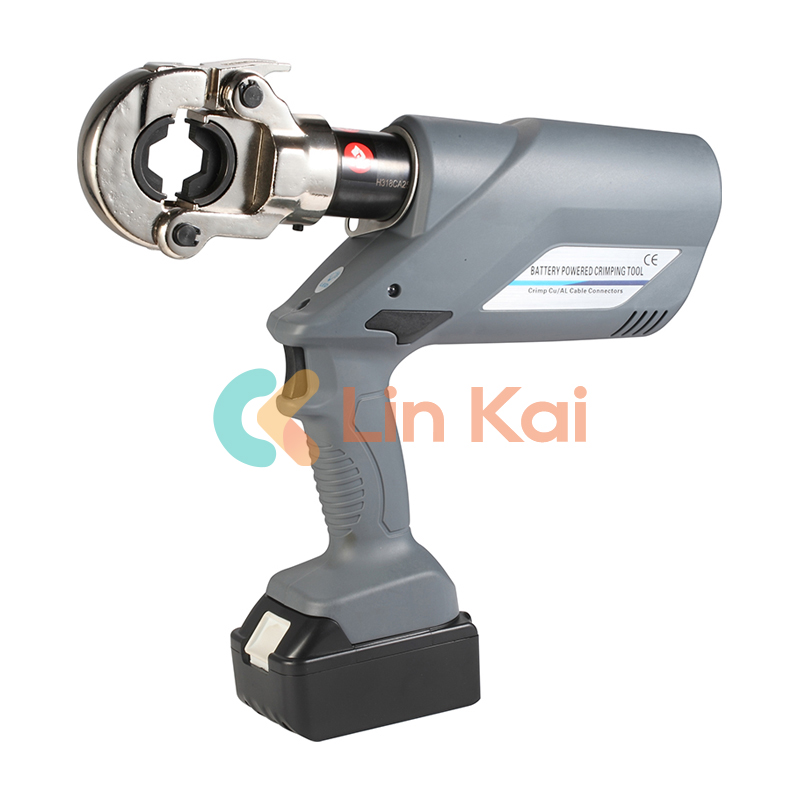

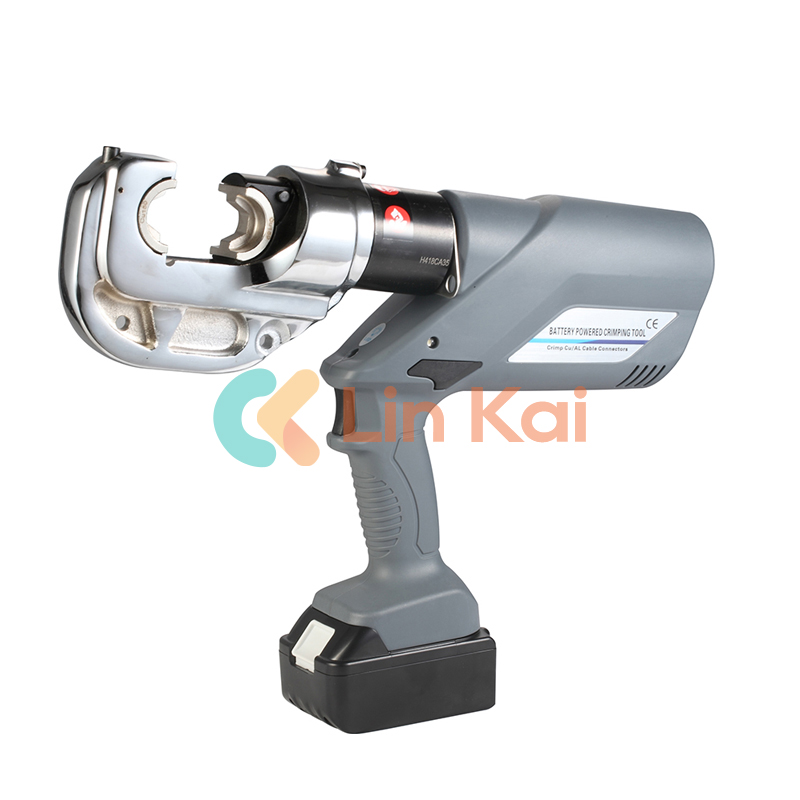

Battery Powered Hydraulic Crimping Tools made in China by LingKai, the head can be rotated at 360°, the flip-top latch crimping head, can work at any site. When the joint is completed, the machine will stop and return to the position automatically, it can be manually returned when necessary. And Battery Powered Hydraulic Crimping Tools has the automatic power off function.

Our double piston pump and powerful motor ensure quick crimp, automatically fully retract ram and stop motor when complete crimp. Manually retract ram in casa of need LED illuminate work area, low battery charges or li-ion battery with high capacity and requires short charging time. When the temperature over 60 ° under long time working ,our Battery Powered Hydraulic Crimping Tools sensor makes the tool stop working automatically.

Battery Powered Hydraulic Crimping Tools data sheet

BZ 300

Output force	60KN
Stroke	17mm
Crimping range	Cu 10-300mm2
Battery	18v DC 4.0 Ah Li-ion
Charging time	2 hours
Voltage of charger	110-240 V AC
Crimping dies	10,16,25,35,50,70,95,120,150,185,240,300mm2
Standard accessories	Crimping tool :1 set; crimping die:12 sets; Battery:2 pcs; Charger:1pcs; Shoulder strap:1pcs;Plastic case:1 pcs

BZ 400

Output force	120 KN
Stroke	42mm
Crimping range	Cu 16-400mm2
Battery	18v DC 4.0 Ah Li-ion
Charging time	2 hours
Voltage of charger	110-240 V AC
Crimping dies	16,25,35,50,70,95,120,150,185,240,300,400mm2
Standard accessories	Crimping tool :1 set; crimping die:12 sets; Battery:2 pcs; Charger:1pcs; Shoulder strap:1pcs;Plastic case:1 pcs
