Split Type Cable Cutter

The China-made Ningbo Lingkai Manufactured Bulk Split Type Cable Cutter is designed to operate with pedal, manual, and electric-driven hydraulic pumps. An excellent split type cable cutter may be used to cut armored cable, Cu/Al cable, ACSR, steel strands, and rebar steel. In order to serve more clients, we have created the new Open type C shear blade in recent years. Please contact us if you require more specific information.

Send Inquiry

Product Description

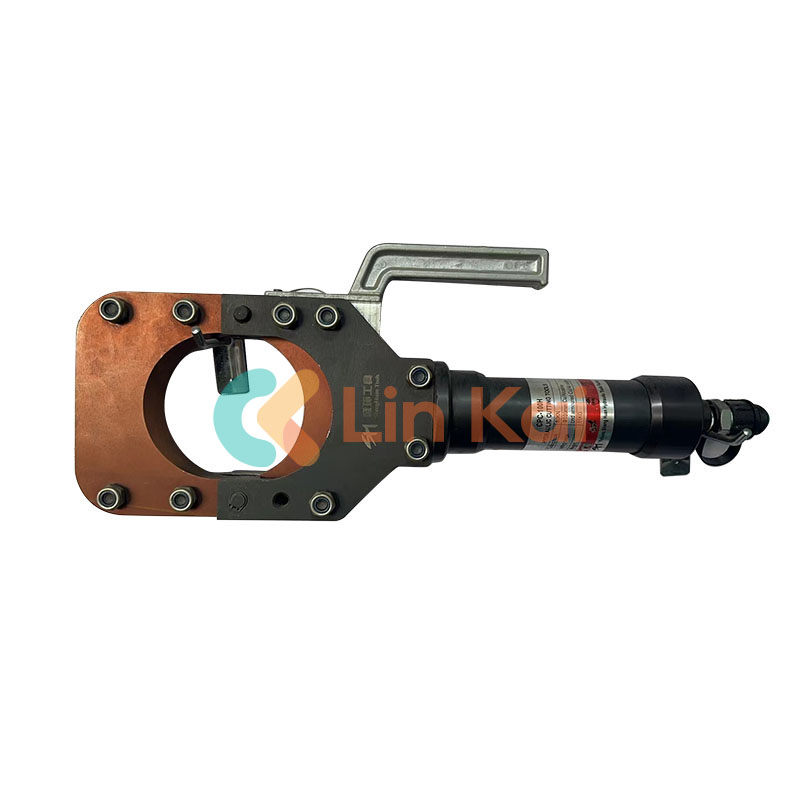

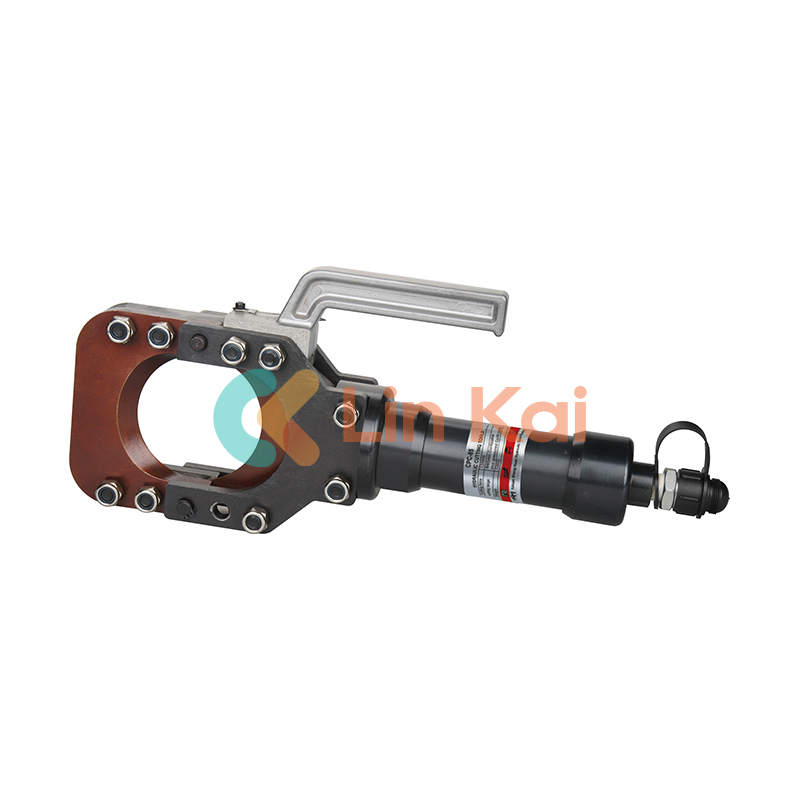

With the hook-style cutter head on Lingkai's wholesale Split Type Cable Cutter, you can easily open and shut the wire and position it in any desired position. The oil pipe connection on the Split Type Cable Cutter has a PT3/8" thread. Please feel free to request a quote for the Split Type Cable Cutter from us. In addition, please let us know the cutting wire and range you need to work with. This tool requires the use of an electric powered hydraulic pump, a manual pump, and a pedal pump.

The same time, we have the hydraulic cable cutter, without pump needed.

Split Type Cable Cutter Datasheet

Model	Cutting force(T)	Cutting range	Length
CPC-20H	4	D 18mm ACSR,D 20mm Cu/al, D 12mm armored cable D 20 mm steel wire, D 12mm Rebar (all above is suit to below )	210mm; 2 kgs
CPC-30H	7	D 30mm Cu/Al cable	350mml 3.5 kgs
CPC-50H/50S	7	D 50mm Cu/al cable, D 32mm steel wire rope	350mm, 3.5kgs
CPC-75H	7	D 75mm Cu/al cable	430mm, 4.5 kgs
CPC-85H/SC	8	D 85mm Cu/al cable.D60 steel strands	480mm, 7.4 kgs
CPC-100H/SC	10	D 100mm Cu/al cable/ D 85mm steel strands	550mm,10kgs
CPC-132H/SC	15	D132mm Cu/al /D120mm steel strands	680mm, 17kgs
CPC-150H/SC	15	D150mm Cu/al /D130mm steel strands	700mm, 19kgs

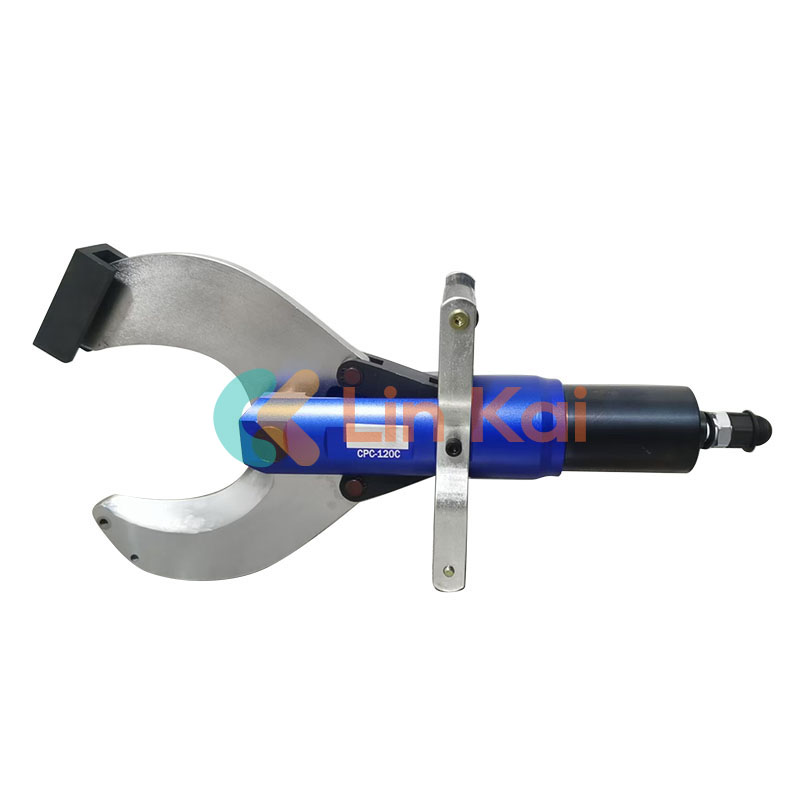

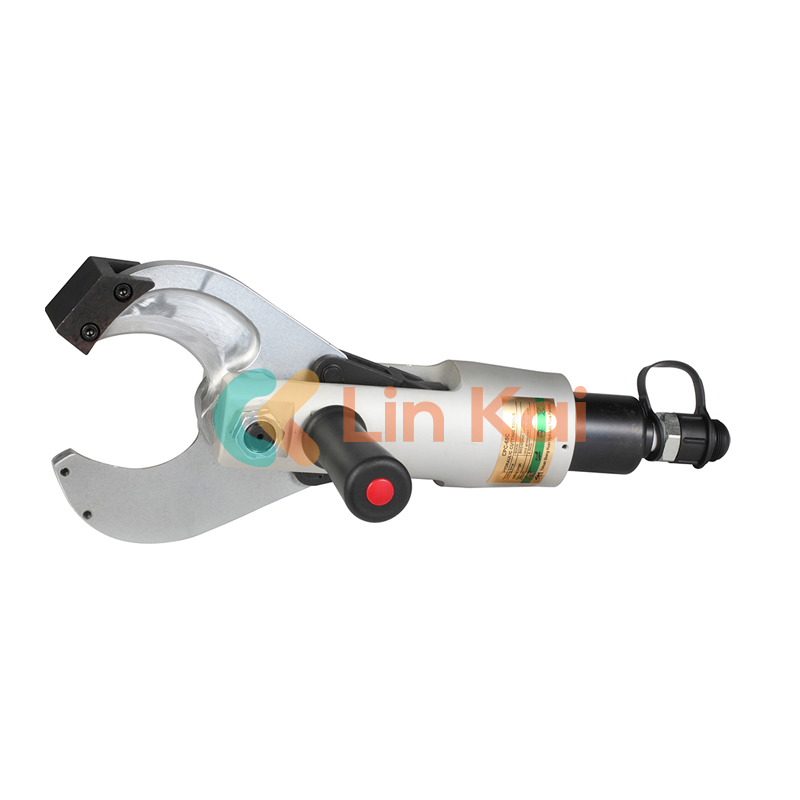

Newest Split Type Cable Cutter we developed it is the open type C shear blade, this makes cutting operation more simple and convenient. The better alternating type two stage hydraulic pump makes the blade closer to the cable, and the operation is easier. We develop the design of the blade guide block to prevent blade displacement during shearing.

Model	Copper wire	AL/Cu wire	Rated Output	Rated pressure	Oilrequired	Max pressure	Hydraulic oil	Tem
CPC-65C	D65mm	D65mm	60kn	46 Mpa	46ml	70Mpa	Shell tellus T 15	-20 degree~ 50 degree
CPC-85C	D85mm	D85mm	60kn	52Mpa	52ml
CPC-105C	D105mm	D105mm	120kn	95Mpa	95ml
CPC-120C	D120mm	D120mm	120kn	95Mpa	95ml
