Jointing ACSR Hydraulic Compressor Machine

Jointing ACSR Hydraulic Compressor Machine one year warranty made in China Ningbo Lingkai Manufacture, it is designed for Efficiency and Durability, due to the high-quality materials and advanced components; This Jointing ACSR Hydraulic Compressor Machine is also wide range of application, suitable for various types of power transmission and distribution projects.

Send Inquiry

Product Description

Jointing ACSR Hydraulic Compressor Machine can be used, for example, to crimp wire grips, high-voltage cable sleeves, and hexagon and insulated terminals. Jointing ACSR Hydraulic Compressor Machine can handle a variety of conductor sizes and shapes thanks to its adjustable pressing force and crimping dies, offering adaptability and flexibility for a range of applications. Additionally, the Lingkai factory's Jointing ACSR Hydraulic Compressor Machine can be used with a range of attachments, including hoses, adapters, and hydraulic pumps, all of which can improve its efficiency and functionality.

Jointing ACSR Hydraulic Compressor Machine data sheet

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in Jointing ACSR Hydraulic Compressor Machine’s casting.

Shipment

1. The Jointing ACSR Hydraulic Compressor Machine will be sent in a container or via air.

2. We typically dispatch the items within one month of receiving payment.

3. Standard products are currently in stock.

How to Use the Jointing ACSR Hydraulic Compressor Machine?

Using the Jointing ACSR Hydraulic Compressor Machine is relatively simple and straightforward, although it requires some training and safety precautions. Before operating the machine, the user must inspect it for any damage or malfunction, as well as ensure that the work area is clean and free of obstacles. The user should also wear appropriate personal protective equipment when using the Jointing ACSR Hydraulic Compressor Machine, including safety glasses, gloves, and boots, to avoid any potential hazards.

Once the Jointing ACSR Hydraulic Compressor Machine is ready, the user should select the appropriate crimping die and adjust the pressing force according to the conductor's size and material. The user should then place the conductor or sleeve in the die and activate the hydraulic pump to apply the pressure. The Jointing ACSR Hydraulic Compressor Machine will then perform the crimping operation, and the user can release the pressure and remove the conductor or sleeve. The user should verify the quality of the crimping by checking its dimensions, shape, and electrical conductivity.

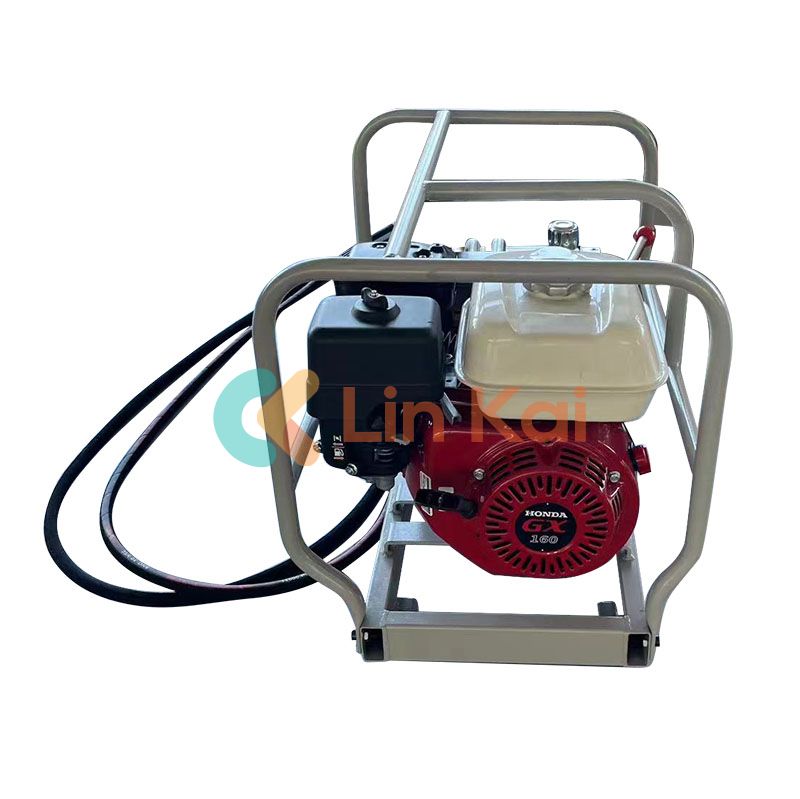

Parameters on High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	11.02-2.05	5.0	55

It should be noted that the pump stations of the Jointing ACSR Hydraulic Compressor Machine only provide electricity to other devices or hydraulic compressors. The Honda GX160 features a gasoline engine.

A standard hydraulic hose is three meters long. Extended hose is not necessary.

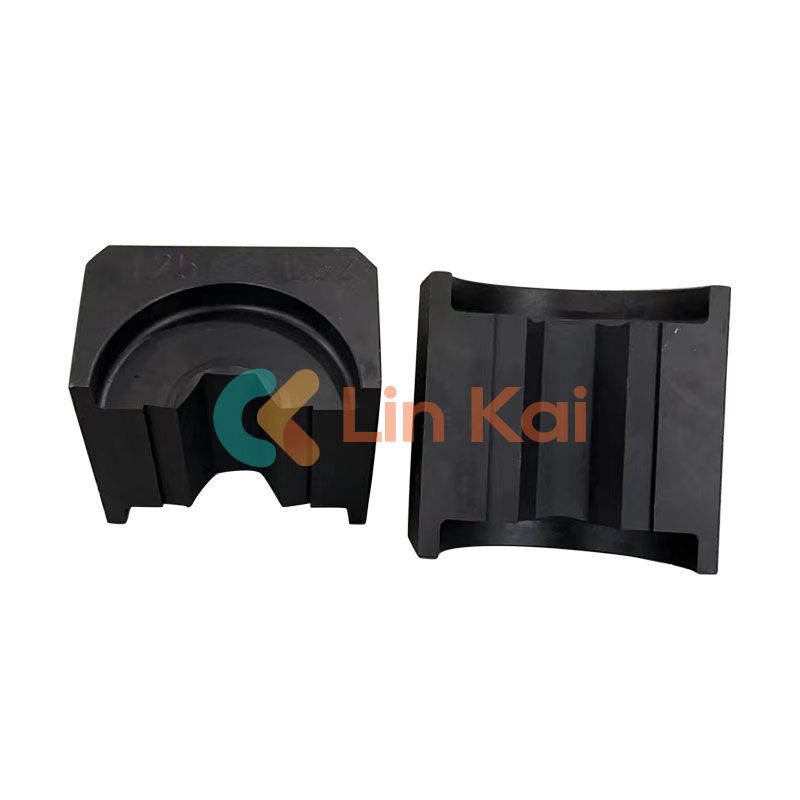

Parameters on Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
