Hydraulic Crimping Tools

The Ningbo Lingkai factory in China produces wholesale hydraulic crimping tools that are intended for hydraulic crimping on electrical cables and wire. Our output capacity is 120Kn, and the crimping range is 16–400 mm2. Standard die accessories are included with every compression plier. Additionally, the sturdy integrated plastic box that makes up our Hydraulic Crimping Tools carrying container.

Send Inquiry

Product Description

Lingkai’s Hydraulic Crimping Tools in bulk have an open-cut design for convenient operation. Dies are quickly put on the tube by a double-speed unit, then the compression force lifts and automatically switches to low speed. The operation finishes with energy savings and time savings. The head of Hydraulic Crimping Tools can be rotated 180 °freely for narrow space working.

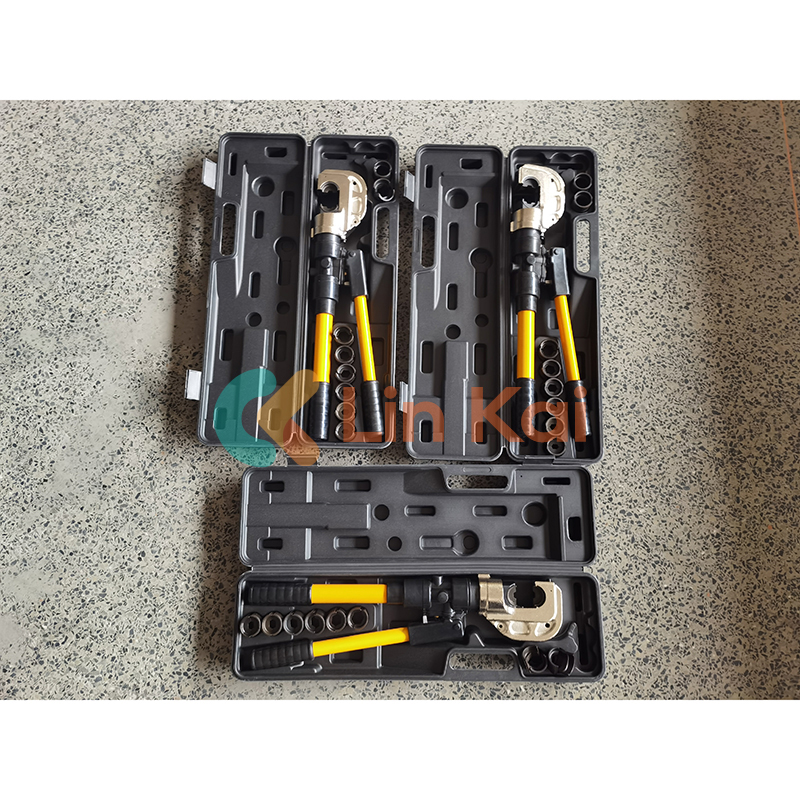

High-quality hydraulic crimping tools are fitted with a safety valve. When pressure reaches a limited maximum value, the pressure is released automatically to prevent overpressure. Our compression pliers are packed in a robust, integral plastic box.

Hydraulic Crimping Tools data sheet

Model	Output	Range	Stoke	Die	Weight
CYO-510	120KN	50-400	38mm	50,70,95,120,150,185,240,300,400	7.5 kg

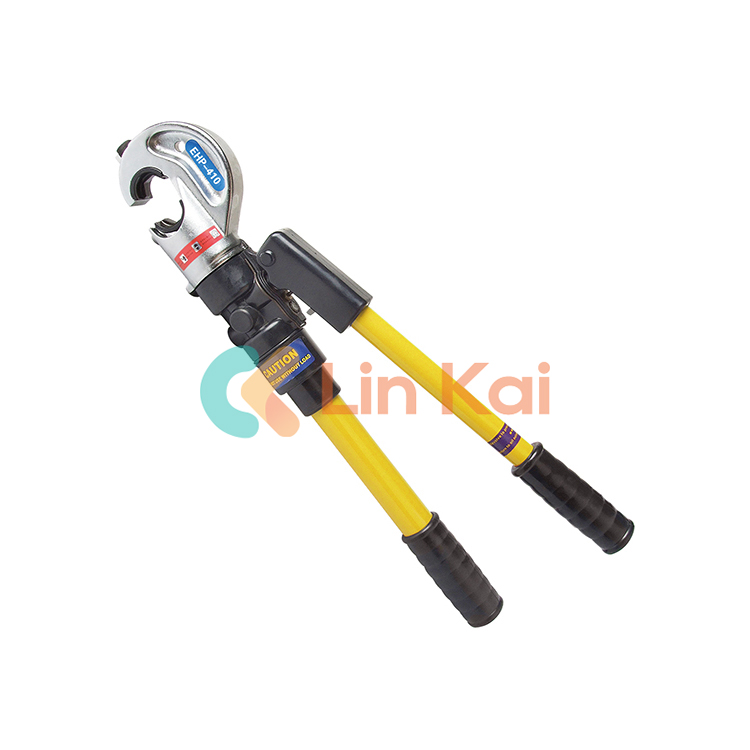

EHP-410	120KN	35-300	30mm	35,50,70,95,120,150,185,240,300	6.8 kg
EP-430	120KN	35-300	30mm	50,70,95,120,150,185,240,300,400	6.8 kg

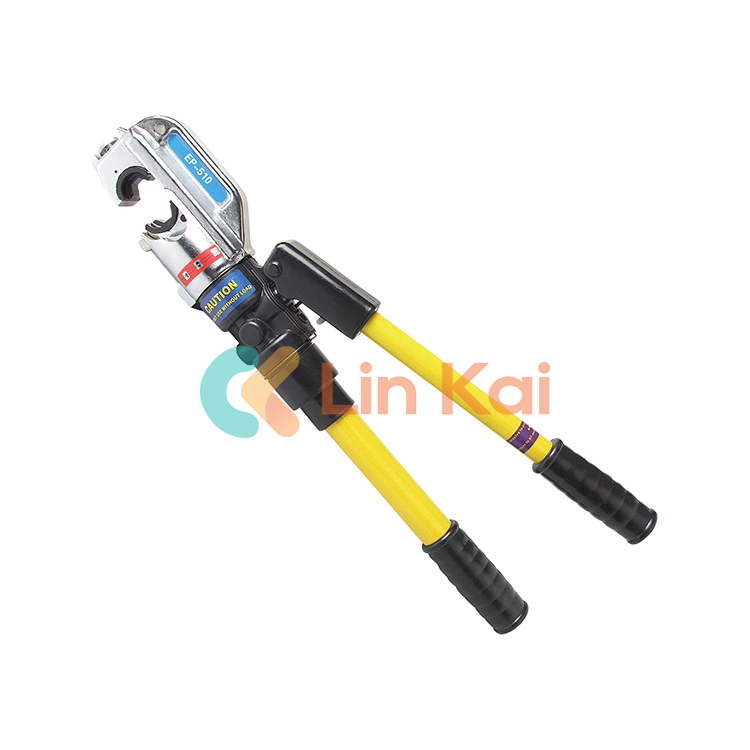

EP-510	130KN	16-400	38mm	50,70,95,120,150,185,240,300,400	7.5 kg
