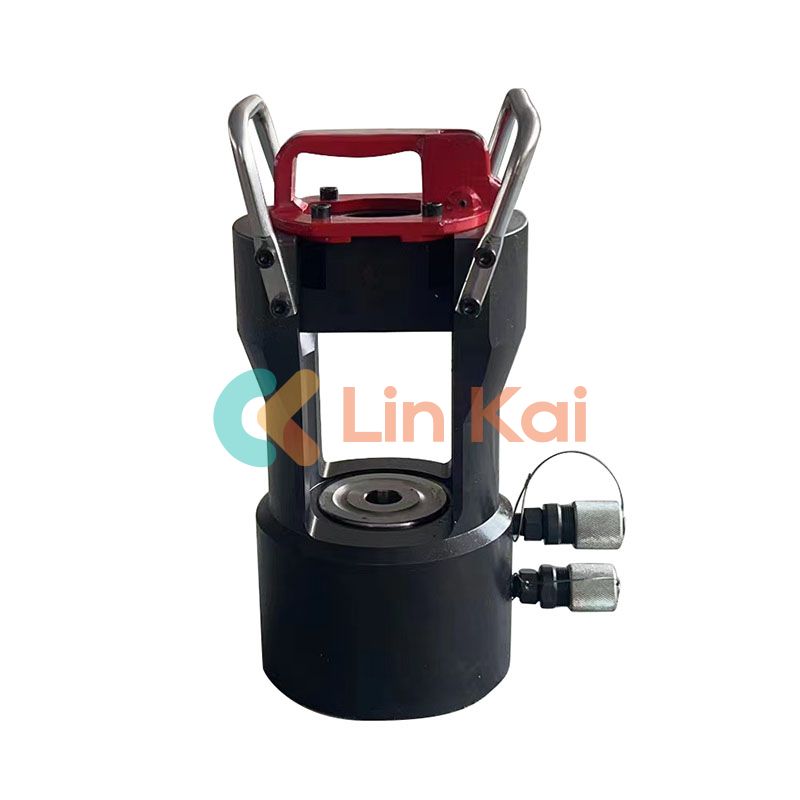

Hydraulic Conductor Compressor Machine For ACSR Conductors

Ningbo Lingkai Machinery is Manufacturer and supplier of high quality hydraulic conductor compressor machine For ACSR conductors in China. Products mainly include 125T,200T,300T Hydraulic Conductor Press Machine and Hexagon Compression Die sets and the High pressure Hydraulic Pump Station. Products can be customized according to the drawings provided by the customer.

Send Inquiry

Product Description

As a professional China Hydraulic Conductor Compressor Machine For ACSR Conductors manufacturers and suppliers, we provide customers with comprehensive project management services. Ningbo Lingkai Machinery use the high quality 42CrMo forging.

Product Description:

Hydraulic Conductor Compressor Machine For ACSR Conductors

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Hydraulic Conductor Compressor Machine For ACSR Conductors

To compress conductor joints or earth wire joints, a motorized hydraulic pump is used in combination with a hydraulic compressor head. In order to ensure durability, the Hydraulic Conductor Compressor Machine For ACSR Conductors's casting is made of high-strength steel.

A Hydraulic Press Machine with a motorized hydraulic pump is used to join ACSR conductors in overhead transmission line stringing. This Hydraulic Conductor Compressor Machine For ACSR Conductors helps to ensure that the joints are securely compressed and able to withstand the demands of the transmission line.

Hydraulic Conductor Compressor Machine For ACSR Conductors

Applications:

Hydraulic Compression Tools

The hydraulic compression tools are specialized equipment designed for crimping overhead tension sleeves that are used on power lines with voltages of 110KV or higher. This Hydraulic Conductor Compressor Machine For ACSR Conductors is built to withstand the high pressure and force required for such tasks and provide reliable and efficient results.

In addition, the Hydraulic Conductor Compressor Machine For ACSR Conductors also work for underground cable connecting. With their hydraulic power, these tools enable secure connections for underground cables, ensuring that the power lines are reliable and safe.

These Hydraulic Conductor Compressor Machine For ACSR Conductors are essential for any professional working in the power, energy, or infrastructure industries. They are built with high-quality materials and designed for durability and longevity, ensuring that they will serve your needs for years to come.

Customization:

Manufactured in China, our Hydraulic Conductor Compressor Machine For ACSR Conductors delivers a maximum compression force of 25T-300T, making it perfect for crimping ACSR. The die set ranges from 16-400mm2 and can crimp ACSR sizes up to 240mm², 500mm², 720mm², 1440mm², and 2500mm².

Our Hydraulic Conductor Compressor Machine For ACSR Conductors is a versatile tool that can be customized to suit your specific needs. Whether you require a different compression force, die set, or application, we can customize the product to meet your requirements.

Support and Services:

- Troubleshooting and problem-solving for any issues with the product

- Assistance in setting up and using the crimping tool correctly

- Training and education on proper maintenance and care for the tool

- Repair and replacement services for any damaged or broken parts

- Upgrades and customization options to improve the tool's performance

Packing and Shipping:

Product Packaging:

The Hydraulic Conductor Compressor Machine For ACSR Conductors will be carefully packaged in a durable cardboard box to ensure that it arrives in excellent condition. The tool itself will be wrapped in bubble wrap and placed securely in the center of the box. The box will be sealed with high-quality tape to prevent any damage during shipping.

Shipping:

The Hydraulic Conductor Compressor Machine For ACSR Conductors will be shipped via a reliable courier service such as FedEx or UPS. We offer both standard and expedited shipping options to meet your needs. Once your order is confirmed, we will provide you with a tracking number so you can easily track your package and know when it will arrive.

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	11.02-2.05	5.0	55

It should be noted that the pump stations of Hydraulic Conductor Compressor Machine For ACSR Conductors simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.

A normal hydraulic hose is three meters long. Extended Hose is not required.

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm

Note: the Hexagonal Die sets could be made according to the requirement of customer.
