Hydraulic Compressor with motorized pump of transmission line Stringing Tools

Ningbo Lingkai Machinery Co., Ltd is a professional Hydraulic Compressor with motorized pump of transmission line Stringing Tools of transmission manufacturer and supplier in China. The main products include Acsr Conductor Jointing Compressor Machine, 80Mpa High-Pressure Hydraulic Pump and Hexagon Compression Die Sets for Conductor Earth Wire.

Send Inquiry

Product Description

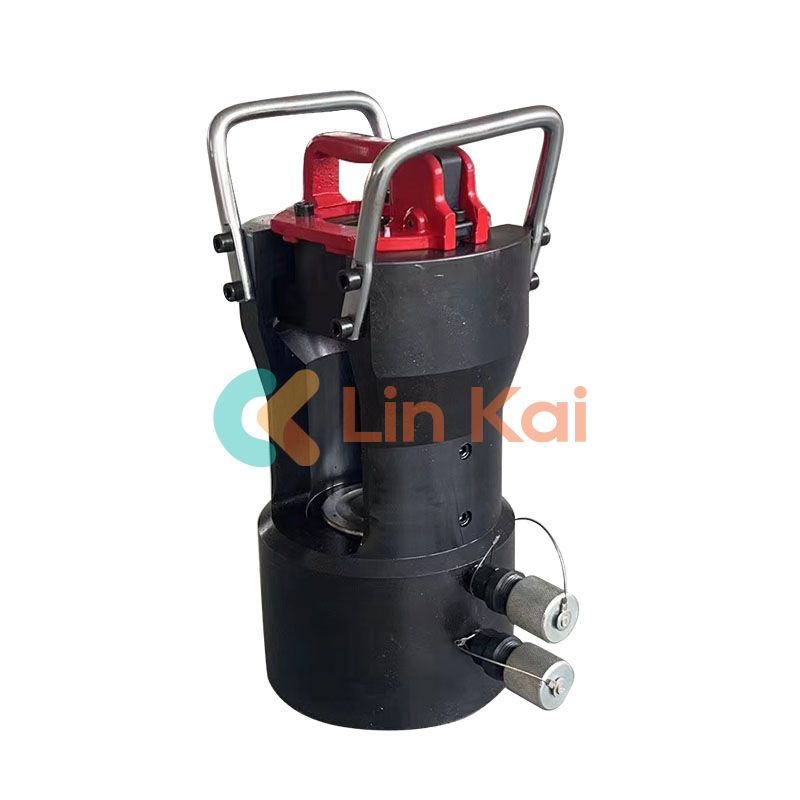

Hydraulic Compressor with motorized pump of transmission line Stringing Tools China advanced manufacturer and supplier – Ningbo Lingkai Machinery Co., Ltd. Hydraulic Compressor is also be called Automatic Hydraulic Conductor Crimping Machine, the material is 42Cr Mo forging, The treatment of material is applied the Overall modulation, piston quenching, we have from 25T, 45T,65T,125T,200T and 300T, the mainly feature is suit to the round and square die sets.

Applications:

Hydraulic Compression Tools for Efficient Crimping

The Hydraulic Compressor with motorized pump of transmission line Stringing Tools are an efficient solution for crimping overhead tension sleeves on power lines with a voltage of 110KV or above. These tools are designed to withstand high levels of tension and are suitable for a variety of applications. They are particularly useful for underground cable connections and other heavy-duty tasks that require precise crimping.

Features and Benefits

The Hydraulic Compressor with motorized pump of transmission line Stringing Tools are designed with advanced technology to ensure accuracy and efficiency. They feature a powerful hydraulic system that provides the necessary force to crimp sleeves quickly and effectively. The tools are also lightweight and easy to handle, reducing operator fatigue and increasing productivity. They are made with durable materials to ensure longevity and consistent performance over time.

Applications

The Hydraulic Compressor with motorized pump of transmission line Stringing Tools are ideal for a range of applications in the power transmission and distribution industry. They are commonly used for crimping overhead tension sleeves on power lines, as well as for underground cable connections. These tools can also be used for other heavy-duty tasks that require accurate and efficient crimping, such as in the construction and telecommunications industries.

Hydraulic Compressor with motorized pump of transmission line Stringing Tools data sheet

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in its casting.

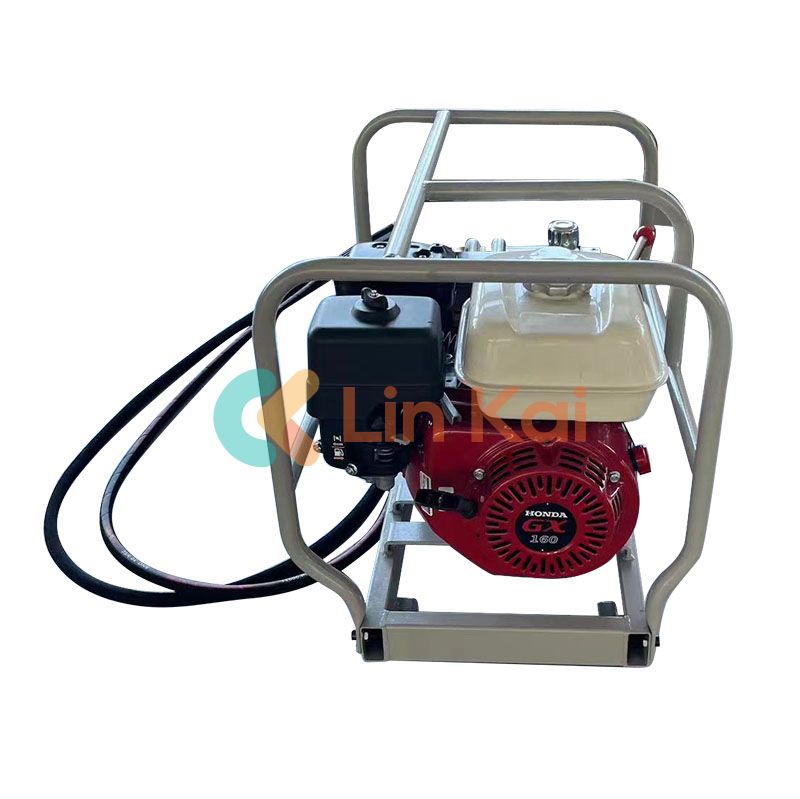

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	11.02-2.05	5.0	55

It should be noted that the Hydraulic Compressor with motorized pump of transmission line Stringing Tools’s pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.

A normal hydraulic hose is three meters long. Extended Hose is not required.

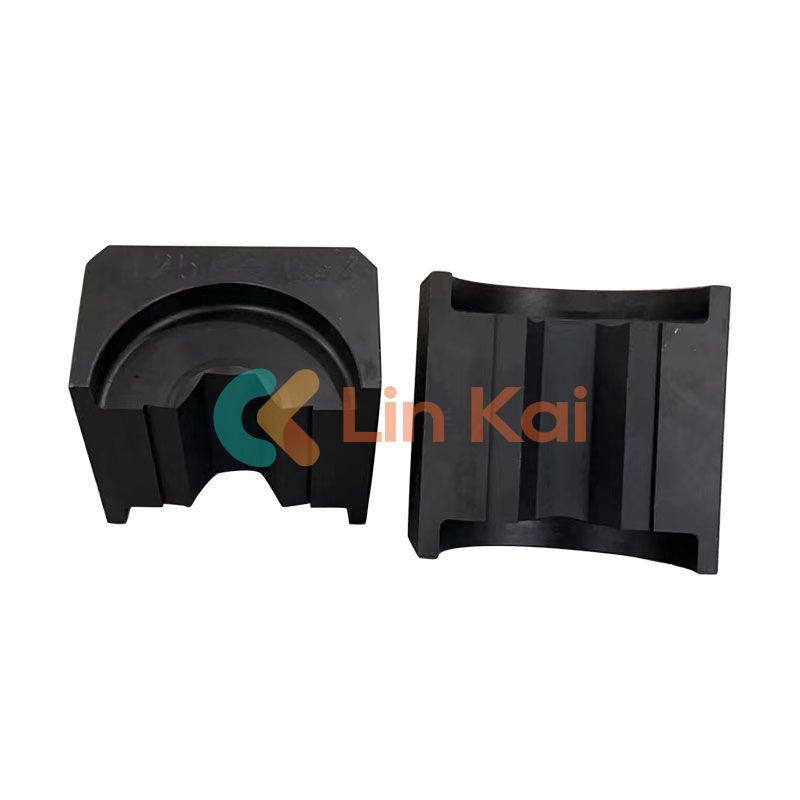

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm

Note: the Hexagonal Die sets could be made according to the requirement of customer.
