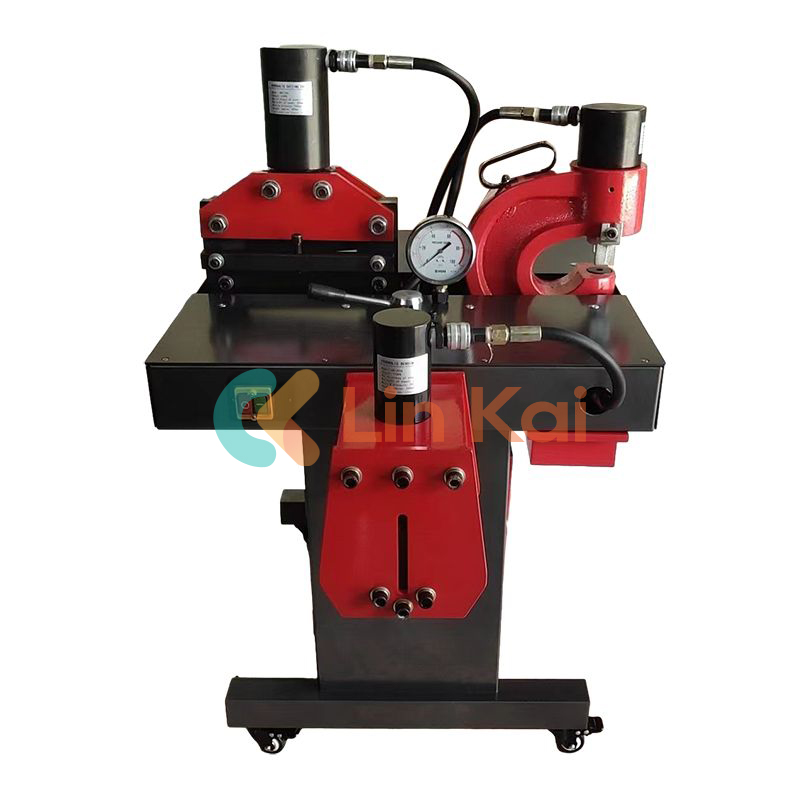

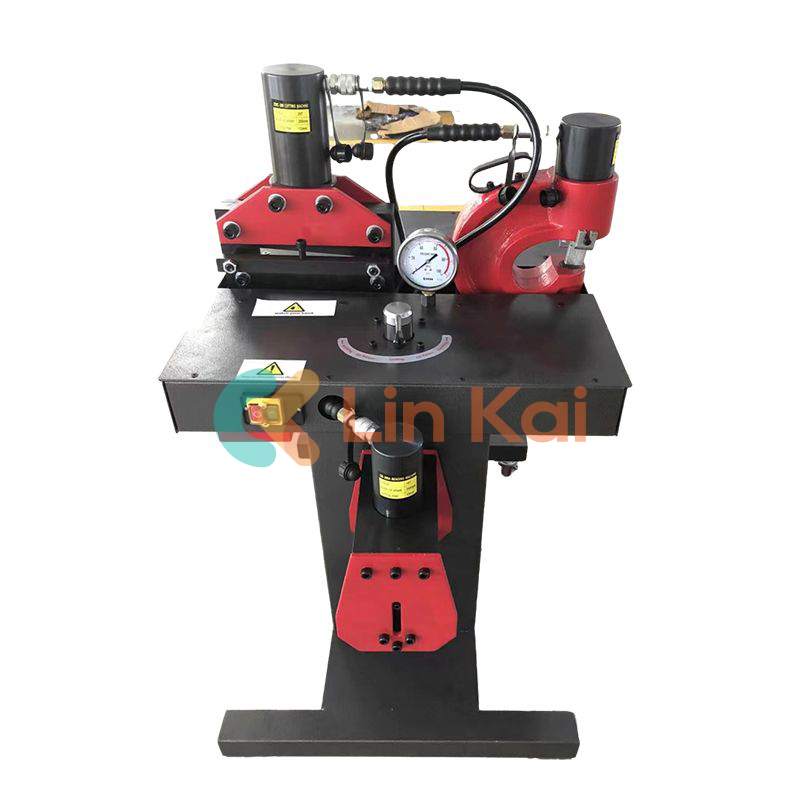

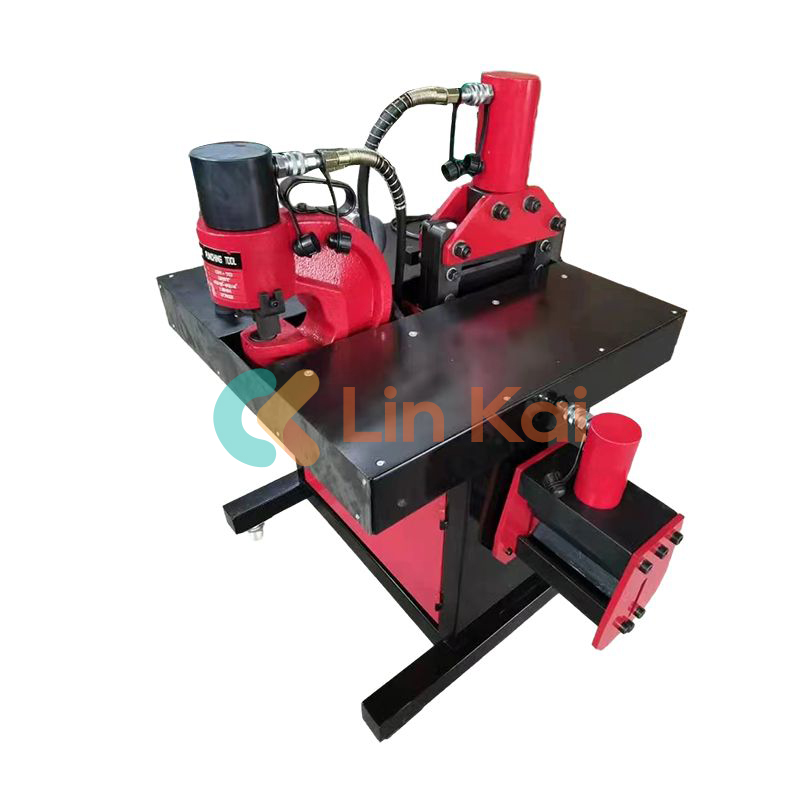

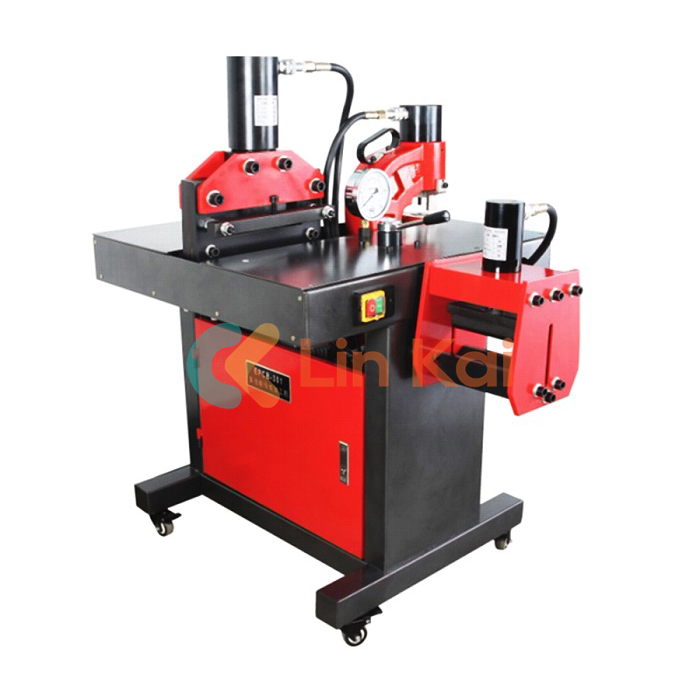

Hydraulic Bus-bar Processing Machine

The hydraulic bus-bar processing equipment from LingKai comes with a one-year guarantee. It is a bus-bar processor with several functions. The following operations may be performed by the inexpensive hydraulic bus-bar processing machine: cutting, punching, and bending. The machine that Ningbo Lingkai manufactures in China is the outcome of combining cutting-edge foreign products with the real circumstances in China to increase work efficiency.

Send Inquiry

Product Description

LingKai's hydraulic bus-bar processing machine in stock is suitable for transmission and distribution in large workshops and sites, construction, power distribution cabinets and switch cabinets, etc., and the use of electrical appliance factories.

Hydraulic bus-bar processing machines in bulk when we are designing and manufacturing aim to save hours of work and improve work efficiency. The high-quality hydraulic bus-bar processing machine we made is the result of foreign advanced products combined with the actual situation in China. This machine is equipped with bending, cutting, and punching functionality. We matched the hydraulic bus-bar processing machine with the optional foot switch or wire switch; it is easy to operate.

Hydraulic Bus-bar Processing Machine data sheet

Item number	06232	06231A	06231
Model	EPCB-301	EPCB-401A	EPCB-401
Function	with three functions, cutting, punching and bending	with four functions, cutting, punching, bending and crimping	with four functions, cutting, punching and bending(horizontal and erective)
Dimension of work table	approx.690x690x730mm	approx.690x690x730mm	approx.690x690x730mm
Voltage single phase	220V50HZ	220V50HZ	220V50HZ
Rating oil pressure	700kg/cm²	700kg/cm²	700kg/cm ²
Bending force	170KN/200KN	170KN/200KN	270KN
Bending range	150x10mm max/200x12mm max	150x10mm max/200x12mm max	125x12.5mm max
Cutting force	200KN/300KN	200KN/300KN	200KN/300KN
Cutting rang	150x10mm max/200x12mm max	150x10mm max/200x12mm max	150x10mm max/200x12mm max
Punching force	300KN/350KN	300KN/350KN	300KN/350KN
Distance from hole to sheet side	95x110mm max	95x110mm max	95x110mm
Punch rang	Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm	Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm	3/8"(Φ10.5mm),1/2"(Φ13.8mm), 5/8"(Φ17mm),3/4"(Φ20.5mm)
Package	wooden case	wooden case	wooden case
