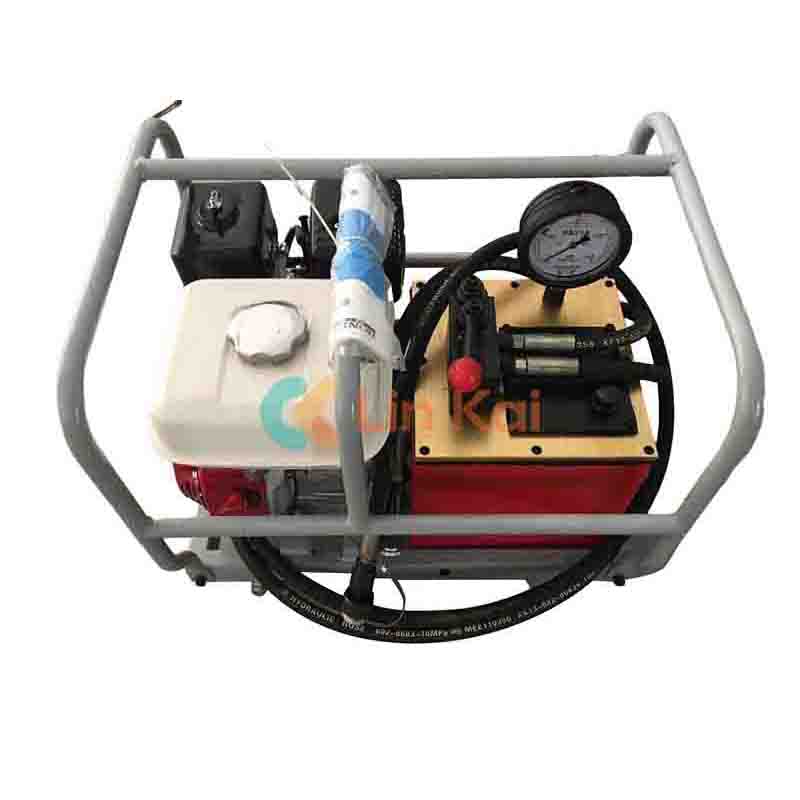

Gasoline Engine Hydraulic Pump Station

Quality gasoline Engine Hydraulic Pump Station, Tubular Gin Poles, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Hydraulic Cable Puller and tensioner, and Conductor Installation Devices are among the products offered by Lingkai Electric Power. These products are OEM-approved, expertly made in compliance with ISO 9001:2008, and distributed to over 50 countries globally.You are welcome to help with any technical problems or needs related to the product. Please come over to us. Regards.

Send Inquiry

Product Description

Support and Services:

Our quality Gasoline Engine Hydraulic Pump Station hydraulic crimping tool comes with a comprehensive technical support and service package to ensure you get the most out of your product. Our team of experts are available to answer any questions you may have regarding the operation or maintenance of your tool.

We also offer repair and maintenance services to ensure your tool Gasoline Engine Hydraulic Pump Station One Year Warranty is always in top working condition. Our experienced technicians can diagnose and repair any issues you may encounter, and we offer a range of maintenance packages to keep your tool Gasoline Engine Hydraulic Pump Station running smoothly.

In addition, we offer training services to ensure that you and your team are fully equipped to use the tool safely and effectively. Our training courses cover everything from basic operation to advanced techniques, and can be customized to meet your specific needs.

With our technical support and service package, you can be confident that your hydraulic crimping tool will always be operating at peak performance.

Gasoline Engine Hydraulic Pump Station’s data

Item No.

Description

Hydraulic Pressure (MPa)

Max

Pressure

(Mpa)

Oil Flow (L/min)

Power (HP)

Weight (kg)

16146

Gasoline motor driven hydraulic pump station mounted on hand cart

11.02-2.05

5.0

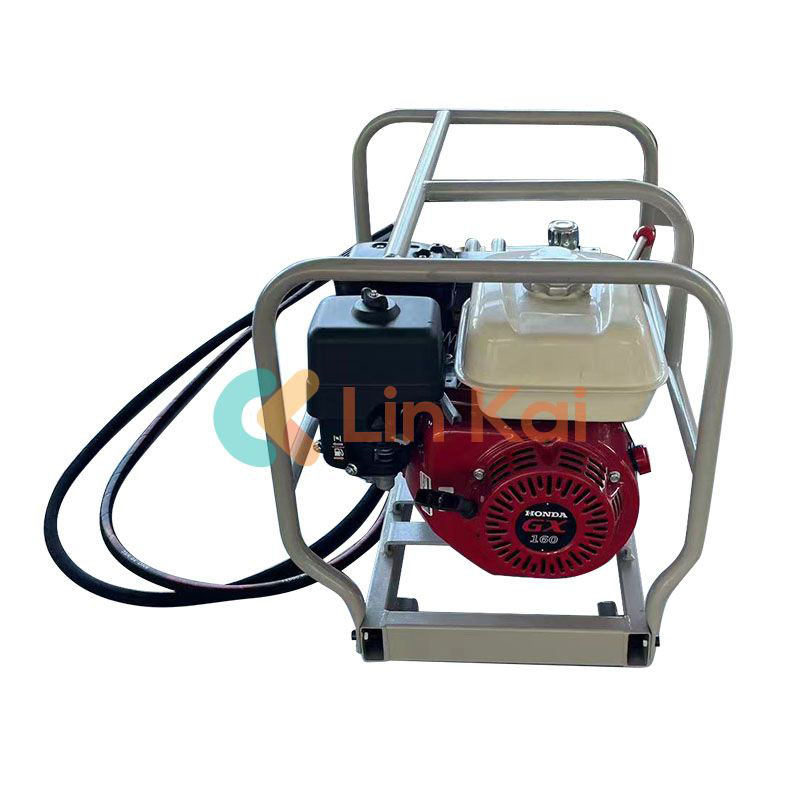

Application: It should be noted that the Gasoline Engine Hydraulic Pump Stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.

Hydraulic Compressor Machine Motorized for Acsr Conductor

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
