Conductor Jointing Machine Motorized

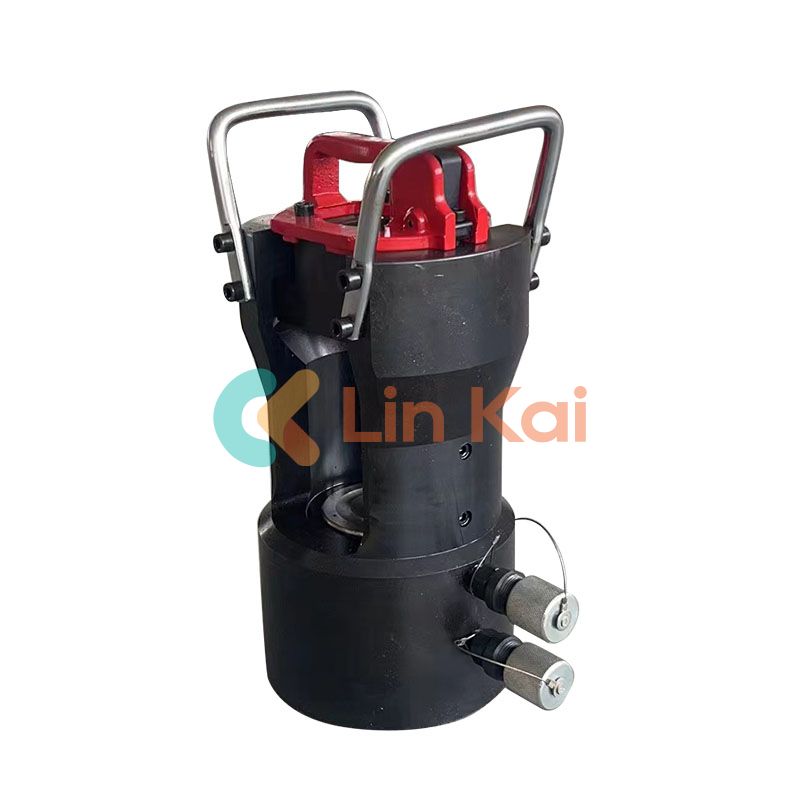

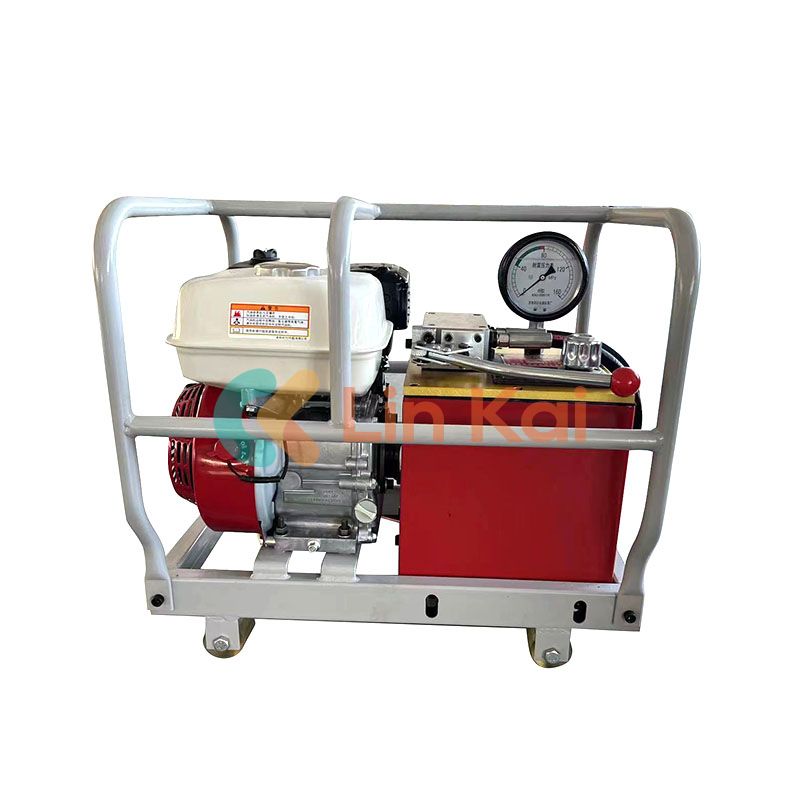

Made in China Ningbo Lingkai Conductor Jointing Machine Motorized two-year warranty QY-25 and QY-45 are driven by an electric pump or by hand, whereas the QY-65, QY-125, and QY-200 are powered by a high-pressure motorized hydraulic pump station. A hydraulic compressor machine is used to link conductors on overhead transmission lines. The Conductor Jointing Machine Motorized includes a motorized hydraulic pump, a hydraulic compressor, and die sets for different conductor couplings.

Send Inquiry

Product Description

Conductor Jointing Machine Motorized made in China Ningbo Lingkai Manufacture is designed for crimping overhead tension sleeve on 110 KV or above, also for underground cable connecting.

Parameters on Hydraulic Compressors for Conductor Joints

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

The Conductor Jointing Machine Motorized is specifically intended for both indoor and outdoor power transmission and distribution projects, as well as various types of connecting terminals, overhead and underground cabling.

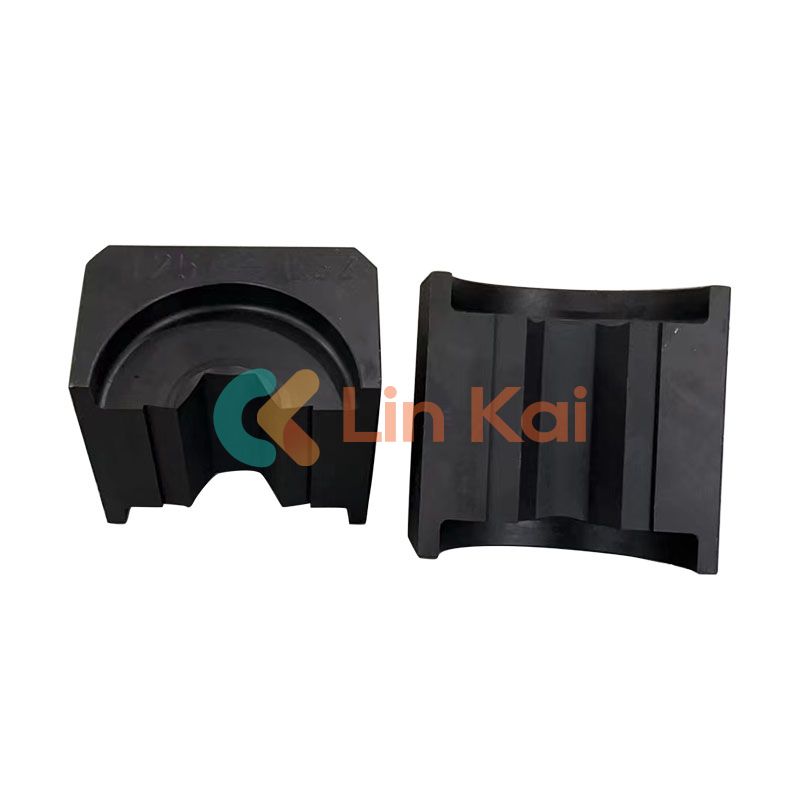

The durable Conductor Jointing Machine Motorized can crimp the high voltage cable sleeves, wire grips, insulated terminals, and hexagonal terminals. Conductor Jointing Machine Motorized crimped component is tight and difficult to break out in good conductivity. Die can be purchased and is available in any size. The oil pipe coupler is fitted with a PT 3/8" thread. To be operated with a pedal pump, a manual pump, and an electric pump.
