Cable Hydraulic Press Compressor

When it comes to compressing conductor joints or earth wire joints, there is nothing more reliable than a motorized hydraulic pump used in tandem with a Cable Hydraulic Press Compressor Made in China. The addition of high strength steel in the casting of the pump ensures that it is strong enough to tackle any job.

Send Inquiry

Product Description

For those in need of a comprehensive solution, a Cable Hydraulic Press Compressor 1 Years Warranty completes with motorized Super High-Pressure Double Speed Hydraulic Pump Station is the perfect choice. This machine is specifically designed for working with ACSR conductor jointing on overhead transmission line stringing projects.

The reliability of a motorized Gasoline Engine Hydraulic Pump Station and Durable Cable Hydraulic Press Compressor head combination is second to none. This is largely due to the fact that these components are made from high strength steel, which ensures they can handle virtually any compression job.

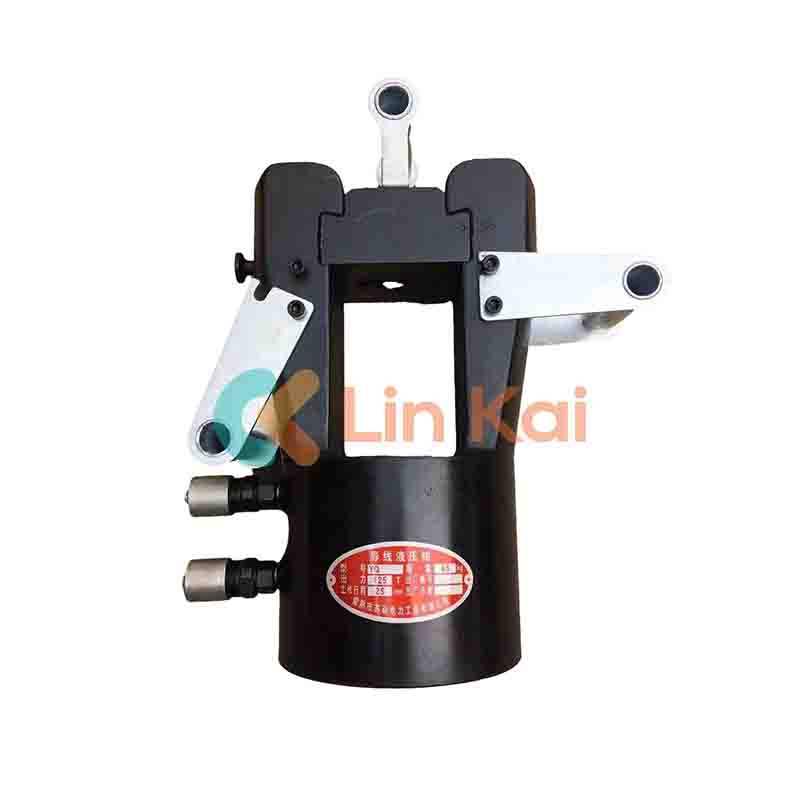

Quality Cable Hydraulic Press Compressor data sheet

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

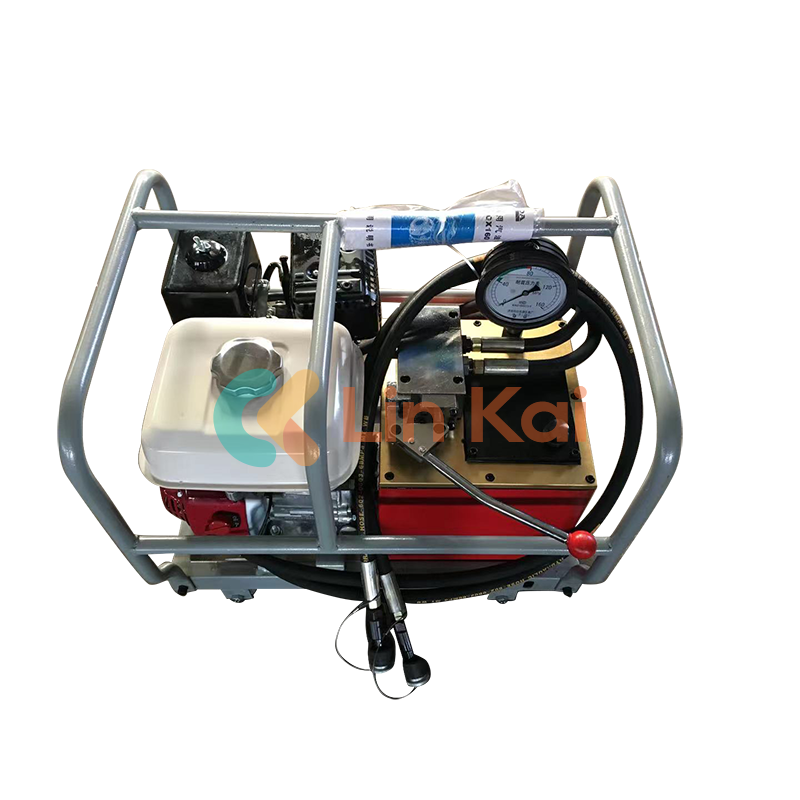

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	11.02-2.05	5.0	55

Note that the pump stations of the Cable Hydraulic Press Compressor do nothing more than provide energy to other appliances or hydraulic compressors. The gasoline engine is a Honda GX160.

The typical length of a hydraulic hose is three meters. It is not necessary to use an extended hose.

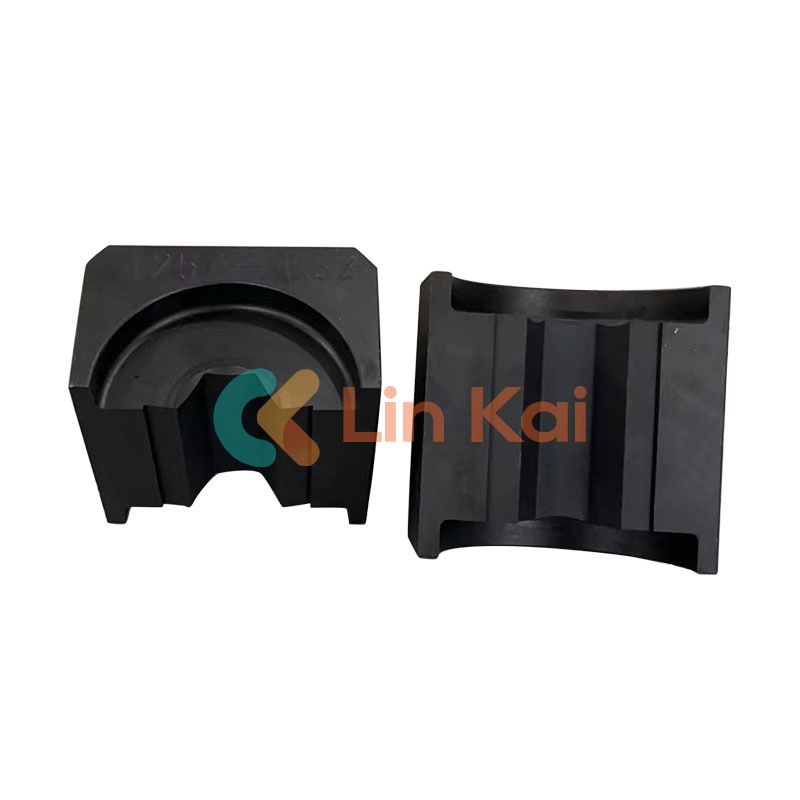

Light Weight Hexagon Compression Die Sets for Conductor Earth Wire

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm

Note: the Hexagonal Die sets could be made according to the requirement of customer.

Applications:

Cable Hydraulic Press Compressor has been designed to cater to a specific need. These tools are specifically designed to crimp overhead tension sleeves on cables that have a voltage of 110KV or above. The use of these tools ensures that the crimping is done with precision and the resulting connection is firm and secure.

The Cable Hydraulic Press Compressor is also suitable for underground cable connecting. This means that the tools can be used for both above-ground and underground cable installation purposes, making them versatile and useful in a variety of situations.

Support and Services:

1. Expert technical support

2. Product repair and maintenance

3. Product training and education

4. Warranty and service agreements

Our team of experienced technicians is dedicated to providing excellent customer service and ensuring that your Cable Hydraulic Press Compressor operates at peak performance. Don't hesitate to contact us for any assistance you may need.

Packing and Shipping:

1. Hydraulic Crimping Tool

2. Instruction manual

3. Product will be securely packaged to prevent damage during transit

4. Shipping time will vary depending on destination

5. Tracking information will be provided once the product has shipped

FAQ:

Q: What is the brand name of this Acsr Conductor Jointing Compressor Machine ?

A: The brand name of this Cable Hydraulic Press Compressor is Lingkai.

Q: What are the different models available for this Cable Hydraulic Press Compressor?

A: The different models available for this hydraulic crimping tool are QY25, QY45, QY65, QY125, QY200, and QY300.

Q: Where is this Hydraulic Compressor and Crimping Tool manufactured?

A: This hydraulic crimping tool is manufactured in China.

Q: What are the applications of this hydraulic crimping tool?

A: This Cable Hydraulic Press Compressor is used for crimping copper and aluminum lugs and connectors in power distribution systems, construction sites, and industrial applications.

Q: What is the warranty period for this hydraulic crimping tool?

A: One year
