Acsr Conductor Jointing Compressor Machine

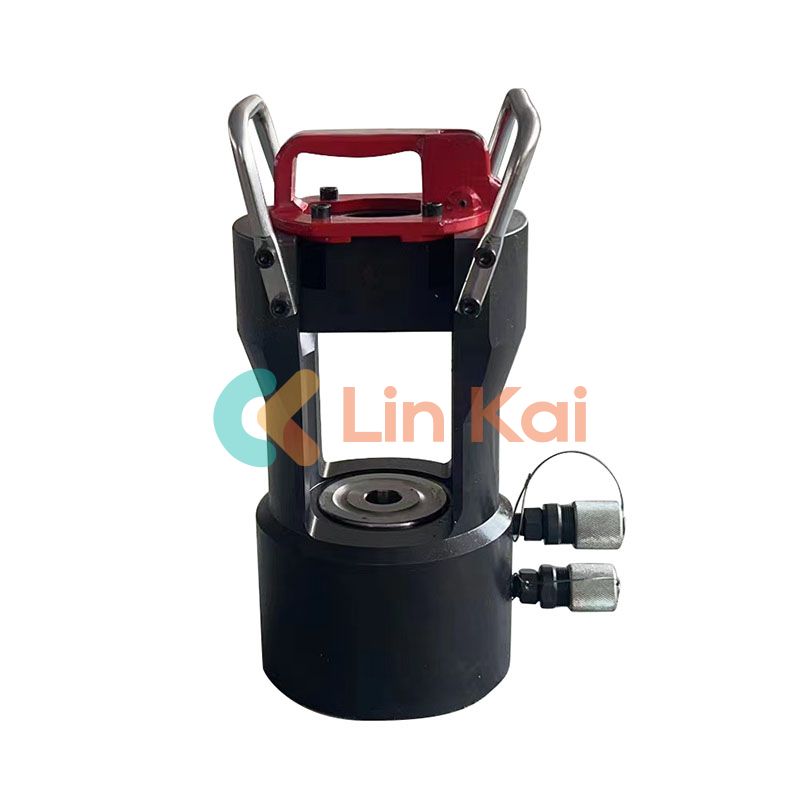

Using a Acsr Conductor Jointing Compressor Machine is the most effective way to compress conductor junctions or earth wire joints. In this instance, the machine has a motorized Super High-Pressure Hydraulic Pump Station that synchronizes with the hydraulic compressor head to provide the best possible outcome. It is important to note that high-strength steel was used in the casting of the Acsr Conductor Jointing Compressor Machine to increase its performance and longevity.

Send Inquiry

Product Description

The Acsr Conductor Jointing Compressor Machine, equipped with a motorized Gasoline Engine Hydraulic Pump Station, is the perfect choice for overhead transmission line stringing ACSR conductor jointing. This is so that the joints can be efficiently compressed at the required level of pressure. Precision in jointing is made possible by the motorized hydraulic pump's steady hydraulic pressure flow.

Support and Services:

Our Acsr Conductor Jointing Compressor Machine is designed to provide reliable and efficient crimping for a variety of applications. We offer technical support and services to ensure that your tool is functioning properly and to assist with any issues that may arise. Our team of experts can provide troubleshooting assistance, repair services, and replacement parts to keep your Acsr Conductor Jointing Compressor Machine in top condition. Additionally, we offer training and education resources to help you get the most out of your tool and to ensure proper and safe usage. Contact us for more information on our technical support and services.

Acsr Conductor Jointing Compressor Machine data sheet

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in its casting.

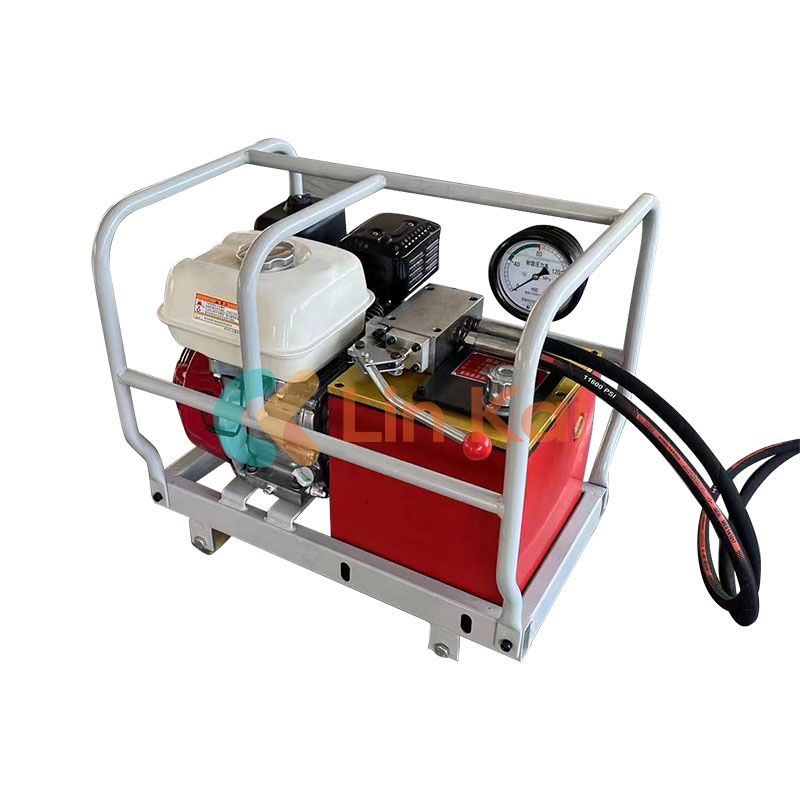

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	11.02-2.05	5.0	55

It should be noted that the Acsr Conductor Jointing Compressor Machine’s pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.

A normal hydraulic hose is three meters long. Extended Hose is not required.

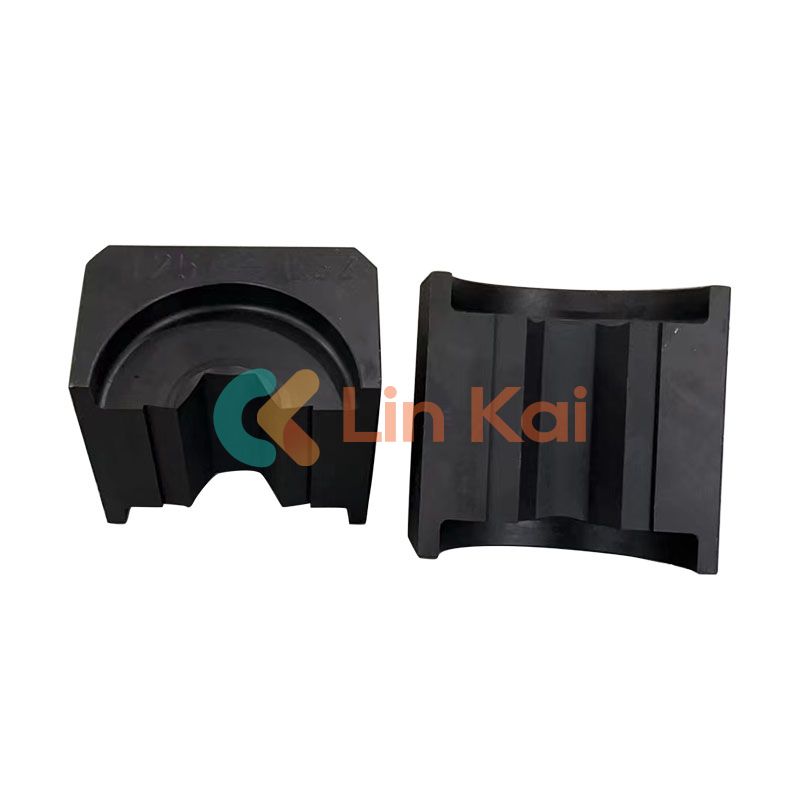

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
