80Mpa High-Pressure Hydraulic Pump

Ningbo Lingkai Machinery is a professional 80Mpa High-Pressure Hydraulic Pump and Cable Hydraulic Press Compressor manufacturer and supplier in China. We are mainly engaging in overhead line transmission tools such as stringing pulley blocks, Anti Twisting Steel Wire Rope, Tower Erection Tools Gin Pole,etc.

Send Inquiry

Product Description

Shop online for 80Mpa High-Pressure Hydraulic Pump from our factory. Our factory is called Ningbo Lingai Machinery Co.,Ltd. that is one of the leading overhead line transmission tools manufacturers and suppliers in China. The advantages of 80Mpa High-Pressure Hydraulic Pump are less weight 10 kg than old type, the speed is about 3 times faster, and the new aluminum alloy oil tank dissipates heat faster.

Product Description:

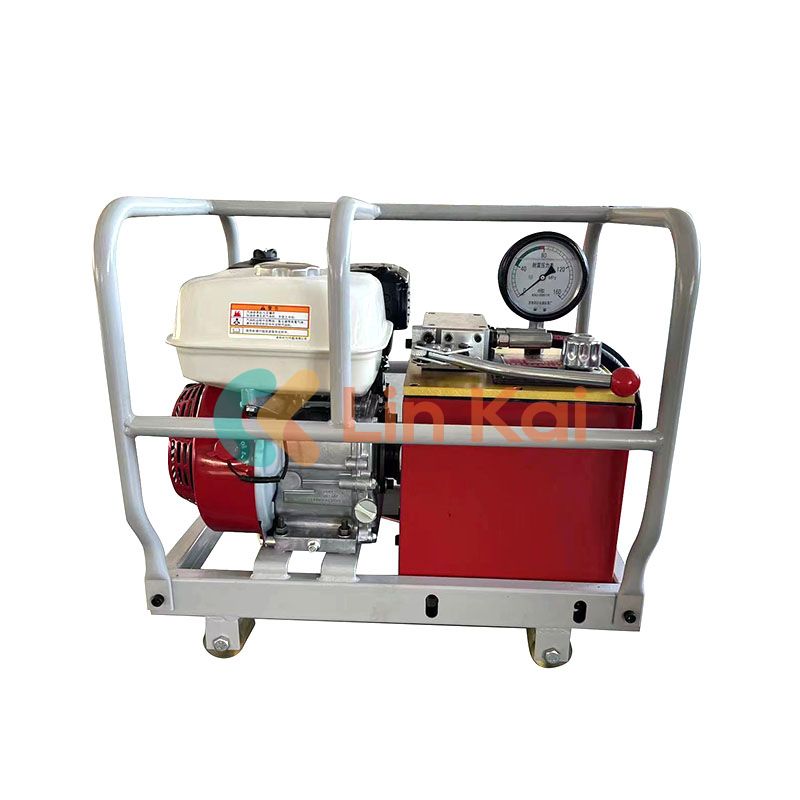

Introducing our Super High Pressure Hydraulic Pump with Double Stage Pump Output, equipped with the reliable Honda engine for powerful performance in various fields. This 80Mpa High-Pressure Hydraulic Pump is specifically designed to cater to cutting tools, hydraulic compressors, punching machines, and other construction machinery that operate in the field.

80Mpa High-Pressure Hydraulic Pump applications are in electric power, railways, rescue, construction, and other industries. Our High-Pressure Hydraulic Pump Station is a gasoline motor-driven pump station mounted on a hand cart, providing portability and convenience to the users.

You can operate this80Mpa High-Pressure Hydraulic Pump with ease, being mounted on a hand cart.

For even more convenience, we present the new Gasoline Engine Hydraulic Pump Station, which has a weight of less than 10 kg, and it runs at a speed 3 times faster than the previous one. The aluminum alloy oil tank of this pump station dissipates heat faster than before. You can operate it with minimal effort and get quick results.

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.

Description

Hydraulic Pressure (MPa)

Max

Pressure

(Mpa)

Oil Flow (L/min)

Power (HP)

Weight (kg)

16146

Gasoline motor driven hydraulic pump station mounted on hand cart

11.02-2.05

5.0

It should be noted that the 80Mpa High-Pressure Hydraulic Pump’ pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.

A normal hydraulic hose is three meters long. Extended Hose is not required.

Cable Hydraulic Press Compressor data sheet

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Light Weight Hexagon Compression Die Sets for Conductor Earth Wire

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm
