80 MPa High-Pressure Motorized Hydraulic Pump Station

The Lingkai factory is offering an 80 MPa High-Pressure Motorized Hydraulic Pump Station that can supply power for various construction machinery, including cutting tools, hydraulic compressors, punching machines, and other equipment used in electric power, railroad, rescue, and construction industries.

Send Inquiry

Product Description

Applications:

The 80 MPa High-Pressure Motorized Hydraulic Pump Station is a powerful source of energy that provides maximum power to hydraulic compressors or any other related equipment. This pump station is specifically designed to sustain high-pressure, being able to provide pressure of up to 80MPa.

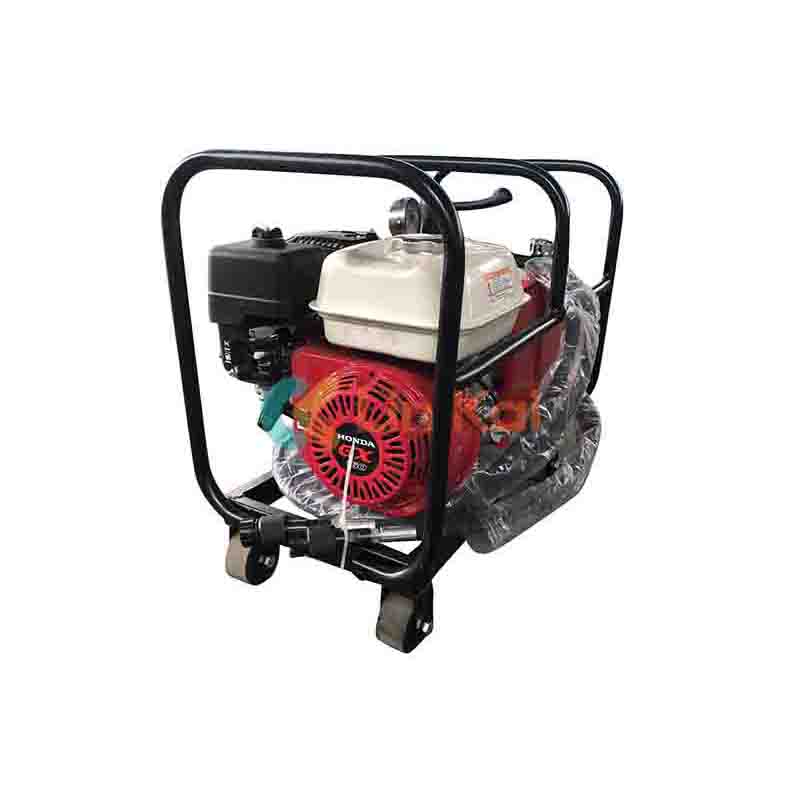

This 80 MPa High-Pressure Motorized Hydraulic Pump Station is equipped with a HONDA GX160 gasoline motor that guarantees the highest performance standards. Thanks to its high quality, this pump station ensures smooth and efficient operation.

The standard length of the hydraulic hose that is provided with this 80 MPa High-Pressure Motorized Hydraulic Pump Station is 3 meters. However, customers have the option to choose a longer hose if necessary. This flexibility allows the use of the pump station in a wide variety of applications and environments.

Parameters on 80 MPa High-Pressure Motorized Hydraulic Pump Station

Item No.

Description

Hydraulic Pressure (MPa)

Max

Pressure

(Mpa)

Oil Flow (L/min)

Power (HP)

Weight (kg)

16146

Gasoline motor driven hydraulic pump station mounted on hand cart

11.02-2.05

5.0

Application: It should be noted that the 80 MPa High-Pressure Motorized Hydraulic Pump Stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.

Automatic Hydraulic Conductor Crimping Machine

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm

Note: the Hexagonal Die sets could be made according to the requirement of customer.
