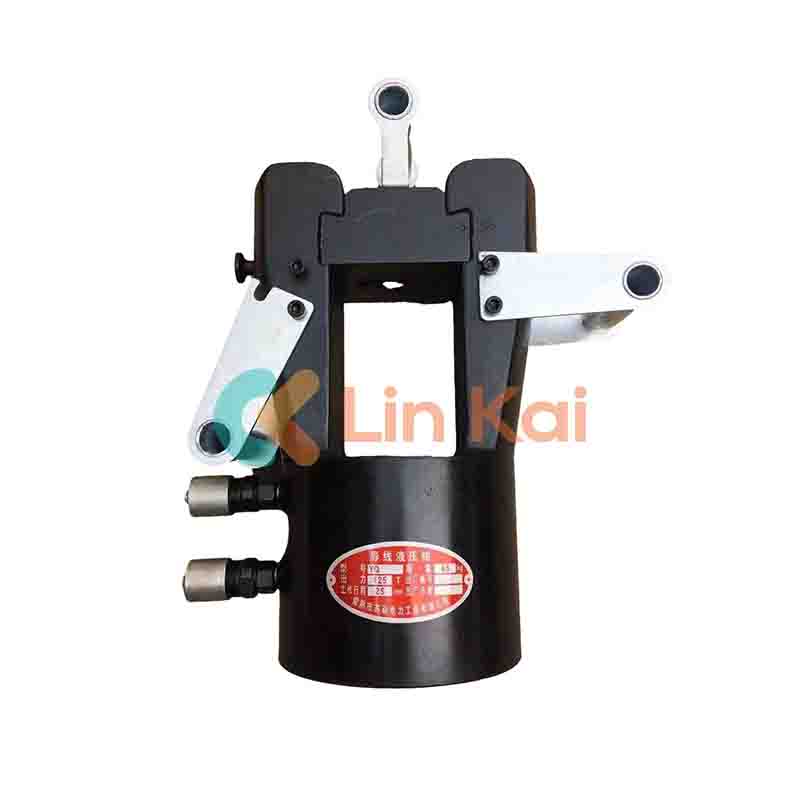

200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor

Ningbo Lingkai Manufacture is a very professional plant to supply high quality 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor, the Hexagon Compression Die Sets for Conductor Earth Wire can be Al, and Steel die, with accordingly customized per client drawings. It can be round and square types.

Send Inquiry

Product Description

You can rest assured to buy 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor from our factory. The material for Hydraulic Compressor Machine Motorized is 42CrMo forging. Hydraulic Compressor Machine Motorized for Acsr Conductor can be applied for crimping high voltage cable sleeve, wire grips, un-insulated terminals, and hexagon terminals.

Applications:

200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor are specifically designed for crimping overhead tension sleeves on power lines with a voltage of 110KV or higher. These tools are essential for ensuring a secure and long-lasting connection between power line components.

In addition to overhead power lines, 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor is also ideal for underground cable connecting. Their precision and accuracy make them perfect for use in scenarios where a strong and reliable connection is crucial. The crimping process, performed by hydraulic compression tools, involves pressing two metal components together to form a solid and reliable connection. This process is made possible by the use of hydraulic pressure, which allows a high degree of control over the crimping force applied to the components.

Overall, 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor is an essential piece of equipment for all power line maintenance and installation professionals. Without the use of these tools, the safety, reliability, and longevity of a power line could be compromised.

200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor data sheet

Item No.	Model	Max. Compression Force (KN)	Max. Hydraulic Pressure (MPa)	Max. ACSR Size (mm²)	Stroke (mm)	Weight (kg)
16101	QY-25	250	70	240	22	6
16102	QY-45	450	70	240	25	12
16103	QY-65	650	94	500	25	25
16104	QY-125	1250	94	720	25	40
16105	QY-200	2000	94	1440	25	85
16106A	QY-300	3000	94	2500	35	126

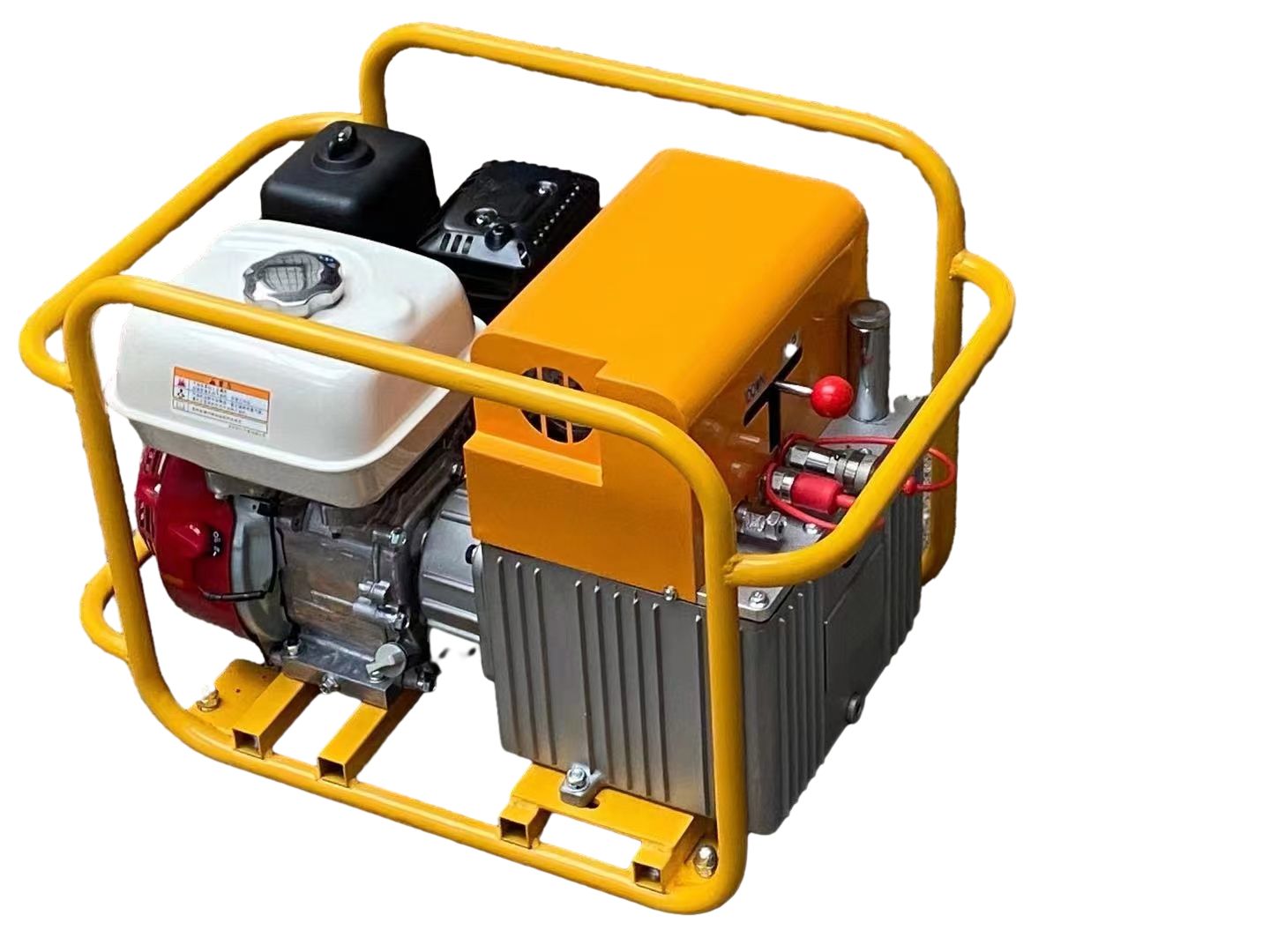

High Pressure Hydraulic Pump Station (Model: YBG-94WQ)

Item No.	Description	Hydraulic Pressure (MPa)	Oil Flow (L/min)	Power (HP)	Weight (kg)
16146	Gasoline motor driven hydraulic pump station mounted on hand cart	80	11.02-2.05	5.0	55

It should be noted that the 200 Ton Hydraulic Compressor Machine Motorized for Acsr Conductor’s pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.

A normal hydraulic hose is three meters long. Extended Hose is not required.

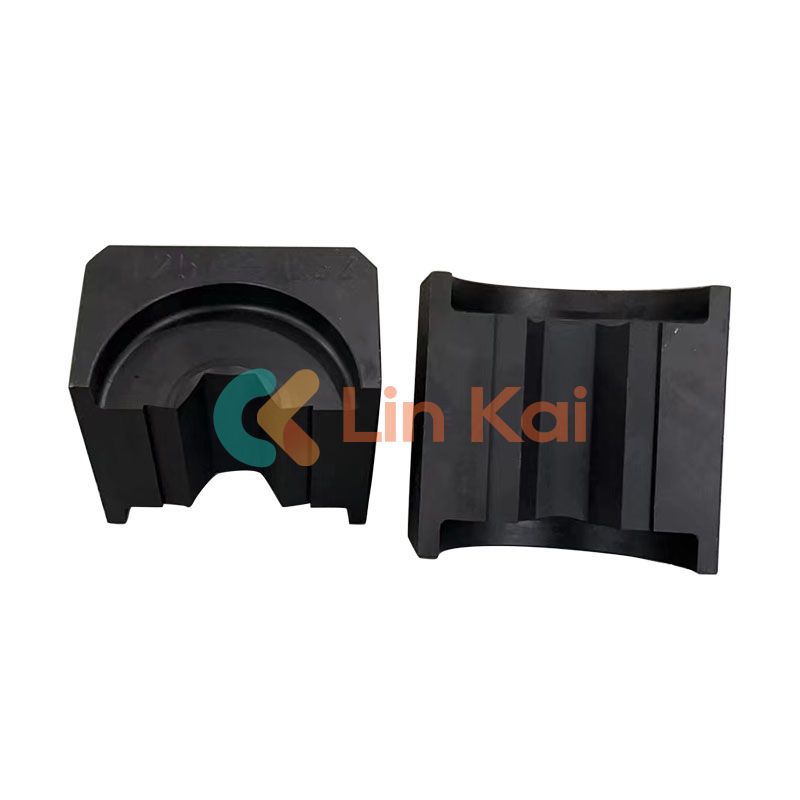

Hexagon Compression Die sets

Item No.	Matching Compressor	Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal)
16121	QY-25	Copper or Aluminum Terminators 16-240mm2
16122	QY-35	L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm
16123	QY-65	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16124	QY-125	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm
16125	QY-200	L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm
16126	QY-300	L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm

Note: the Hexagonal Die sets could be made according to the requirement of customer.
