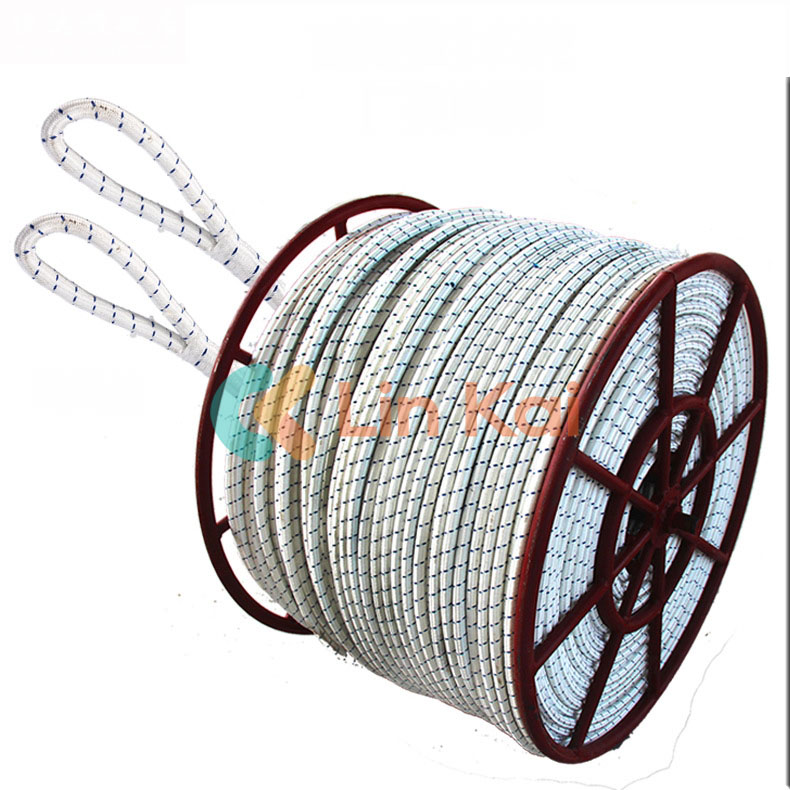

Pilot rope for stringing conductors on overhead transmission line

The 500kv traction rope, OPGW cable, ADSS, and pilot rope for stringing conductors on overhead transmission lines are just a few of the many applications for the Chinese-made Lingkai pilot rope in power line stringing operations. Steel wires with tensile strength are specifically braided to create pilot rope, which is used to thread conductors on overhead transmission lines. This Durable Pilot rope for stringing conductors on overhead transmission line has anti-corrosive properties in addition to being flexible and robust.

Send Inquiry

Product Description

Dyneema Rope and High Strength Dupont Rope is the Pilot rope for stringing conductors on overhead transmission line Made in China, which is made from ultra-high molecular weight polyethylene fiber, which is known for its high strength.

Quality Pilot rope for stringing conductors on overhead transmission line is specially braided to increase its tensile strength and durability. Additionally, it is covered with a protective polyester layer that shields it from damage due to environmental factors such as abrasion, UV rays, and chemicals.

This type of Pilot rope for stringing conductors on overhead transmission line 1 Years Warranty is commonly used for overhead transmission line conductor or Optical Ground Wire (OPGW) stringing. Its remarkable strength-to-weight ratio makes it ideal for this application as it can handle the load without being excessively heavy.

The High Strength Durable Pilot rope for stringing conductors on overhead transmission line is an excellent alternative to Dyneema rope for stringing applications that do not require excessive loads or working at high temperatures. It is resistant to water, mildew, and chemicals, making it suitable for use in a variety of environments.

DOUBLE LAYER BRAIDED UHMWPE ROPE (DYNEEMA ROPE)

Item No.	Nominal diameter (mm)	Breaking Load (KN)	Diameter after covering Polyester (mm)	Net Weight (kg/1000m)	Weight After Covering (kg/1000m)
18170A	2	4.3	3	2.70	4.8
18170B	3	8.5	4.5	4.65	9.6
18170D	4	16.6	5.5	9.31	13.5
18170F	5	24.4	7	14	20
18170G	6	31.9	8	20	28.2
18170H	7	43.6	9	27	36
18170J	8	58.8	10	35	48.4
18170K	9	70.3	11	42	58.5
18170L	10	92.5	12	56	77
18170M	11	115	13	70	97
18170N	12	137	14	84	113.4
18170P	13	159	15	98	132
18170Q	14	180	16	106	150
18170R	16	211	18	132	177
18170S	18	296	21	186	247.3
