16mm Anti Twisting Braided Steel Rope

The Wholesale 16mm Anti Twisting Braided Steel Rope, crafted in China to uphold high quality and durability, is ideal for two bundled conductor stringing in 150KV or 220 KV overhead power lines. It features a braid composed of 3.5 single steel wires made from high-strength galvanized steel, ensuring it remains steady without twisting during operation. This 16mm Anti Twisting Braided Steel Rope, manufactured by a reputable supplier with a factory in China, maintains a soft texture and guarantees reliability with a 1-year warranty against breakage.

Send Inquiry

Product Description

16mm Anti Twisting Braided Steel Rope is used for pulling two bundled conductors on overhead transmission line. It can be used as pilot rope for pulling bigger conductors on 500KV transmission line. 16mm Anti Twisting Braided Steel Rope is made of singe wire diameter 3.5mm steel wire, be braided from 12 strands of 1X19W wire, packed in 1200mm X1100MX 560mm, or be customized by client requirements, 1000M/reel.

16mm Anti Twisting Braided Steel Rope in bulk, manufactured in China, is used to pull two bundled conductors or larger conductors on a 500KV transmission line. 16mm Anti Twisting Steel Wire Rope is braided from 12 strands of 1X19W wire, 1000 meters per drum, and packed in a 1200mm diameter steel barrel.

16mm Anti Twisting Braided Steel Rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operation.

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18208A	16	160	Φ3.5	1960	800

Highly quality Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The 16mm Anti Twisting Braided Steel Rope has high flexibility, complete stability to rotation under tension force.

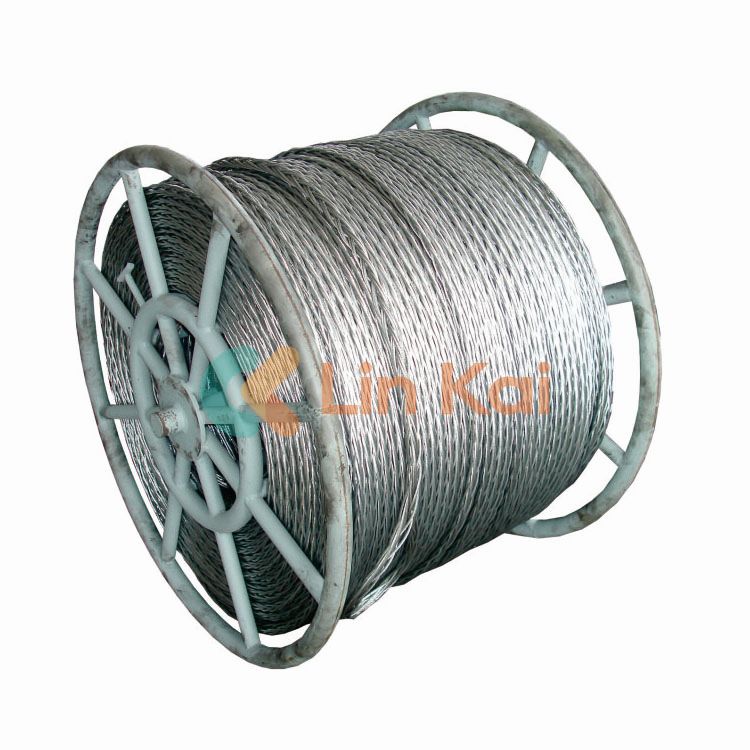

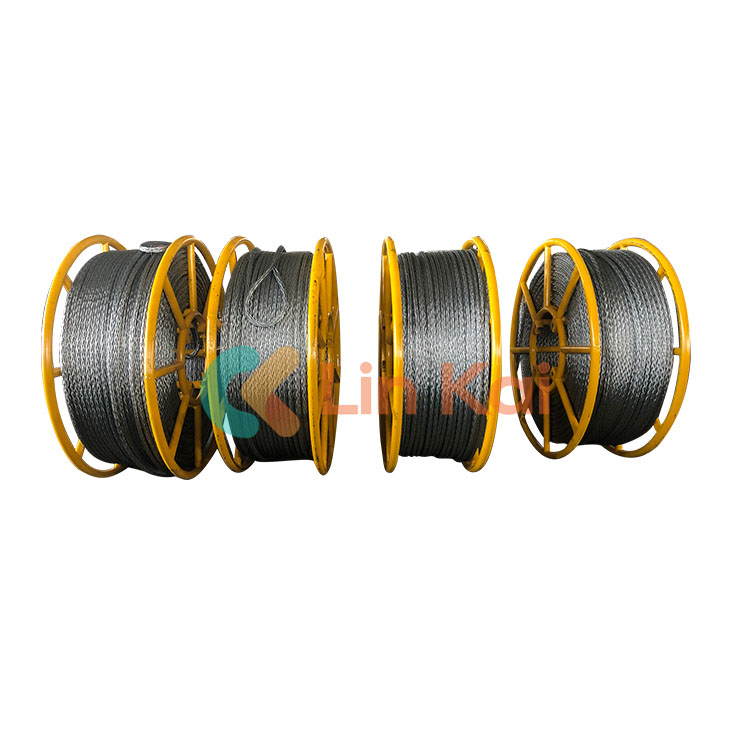

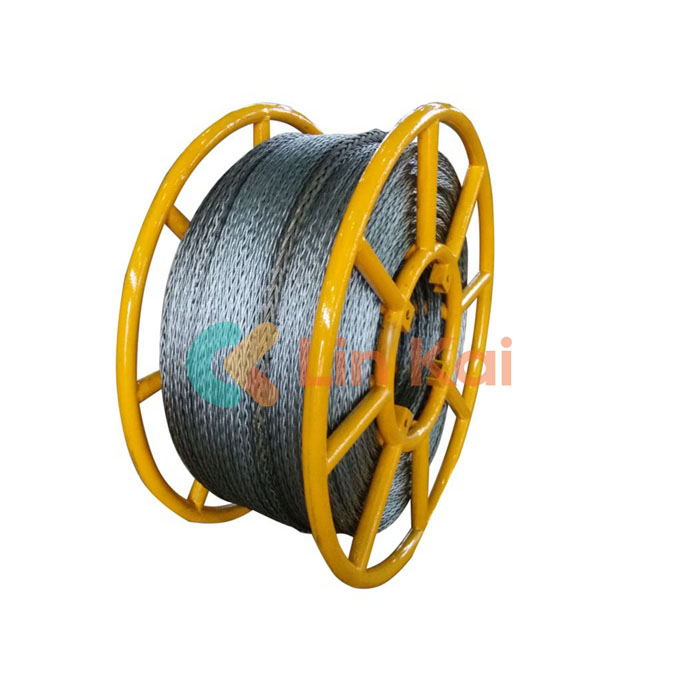

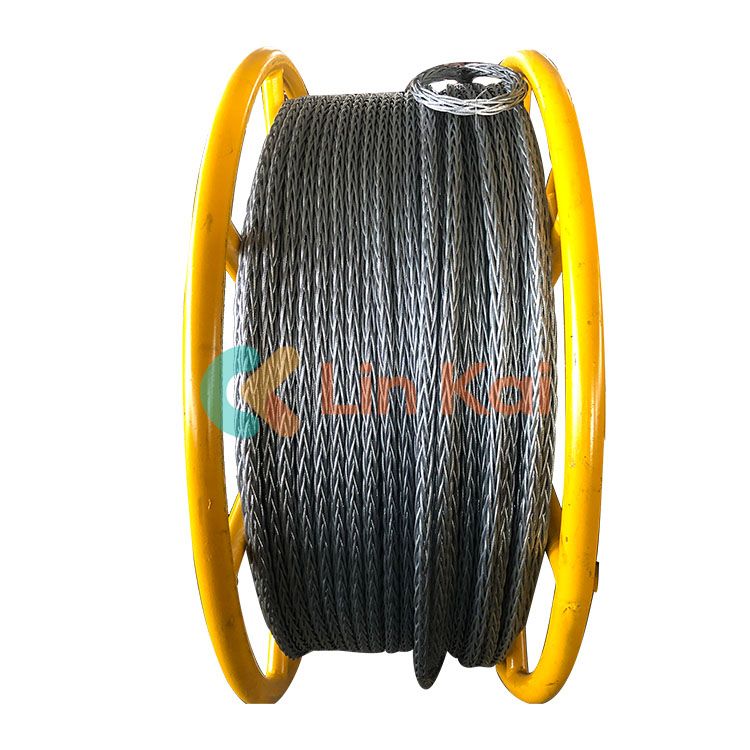

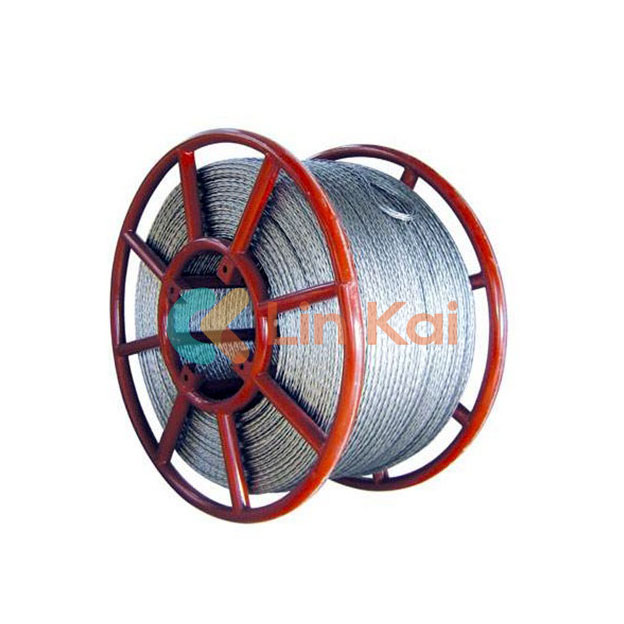

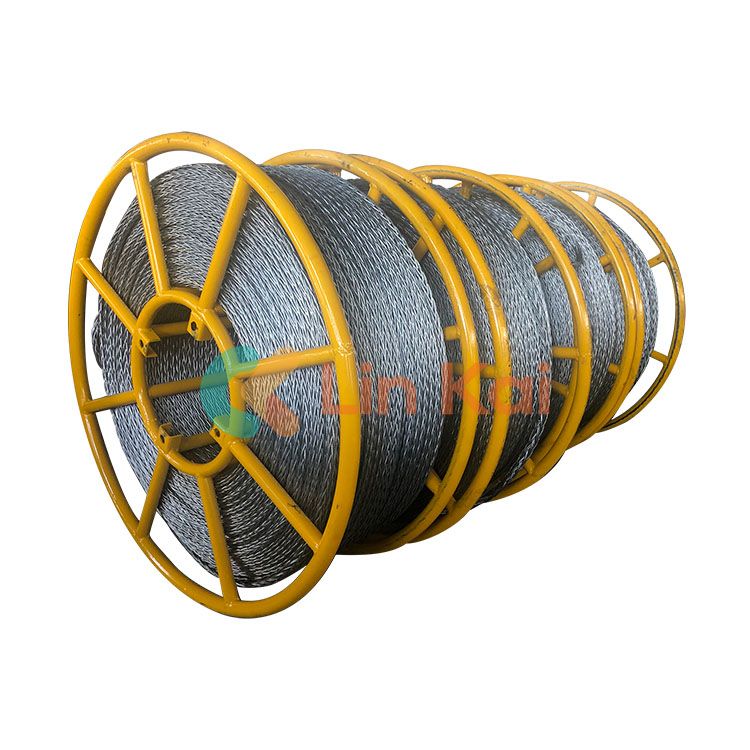

12 Strands Anti twisting braided steel wire rope can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The 16mm Anti Twisting Braided Steel Rope is packed in steel drum which can be installed directly on the reel winder of puller.

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020

Precautions when using 16mm Anti Twisting Braided Steel Rope

Anti Twisting Braided Steel Rope 16mm for pulling Two Bundled Conductors

Anti Twisting Galvanized Steel Wire Rope 18mm for pulling two conductors

Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors on transmission line

22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on

Anti Twist Wire Rope 24MM for stringing 6 conductors

Dyneema Rope for pulling conductors or OPGW on hot transmission line

Braided Dupont Polyester Rope for Transmission Line Stringing

16mm Anti Twisting Braided Steel Rope

Galvanized steel rope with braided strands that prevent twisting. High tensile strength steel strands used to make 16mm Anti Twisting Braided Steel ropes provide greater working and breaking loads with the same linear mass.

16mm Anti Twisting Braided Steel Rope made up of braiding strands.

Advantages:

High flexibility

Complete stability to rotation

Homogeneous distribution of pressure between the elementary wires

Increased efficiency during stringing operations

Strands with individual galvanized elementary wires

This 16mm Anti Twisting Braided Steel Rope offers the same technological advantages as the FUX product but, due to its high tensile strength steel strands, it provides higher working and breaking loads with the same linear mass.
