14mm Anti Twisting Braided Steel Rope

The 14mm Anti Twisting Braided Steel Rope, manufactured in China to ensure high quality and durability, serves essential roles in pulling single conductors or OPGW on overhead transmission lines. 14mm Anti Twisting Braided Steel Rope is also suitable for super-high transmission lines, facilitating the pulling of larger conductors efficiently. This special 14mm Anti Twisting Braided Steel Rope, provided by a trusted manufacturer and supplier with factories in China, enhances efficiency during overhead transmission line stringing work, ensuring reliability with a 1-year warranty.

Send Inquiry

Product Description

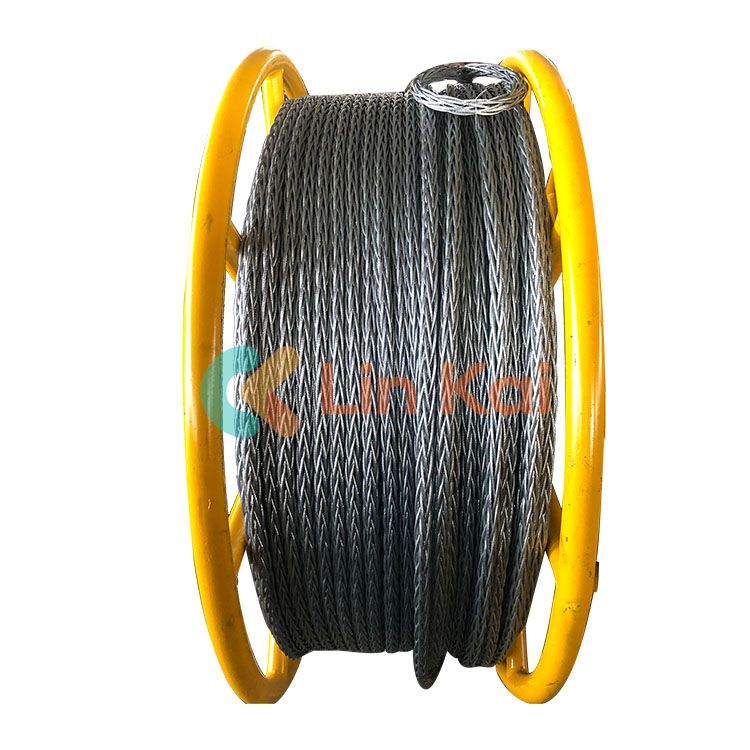

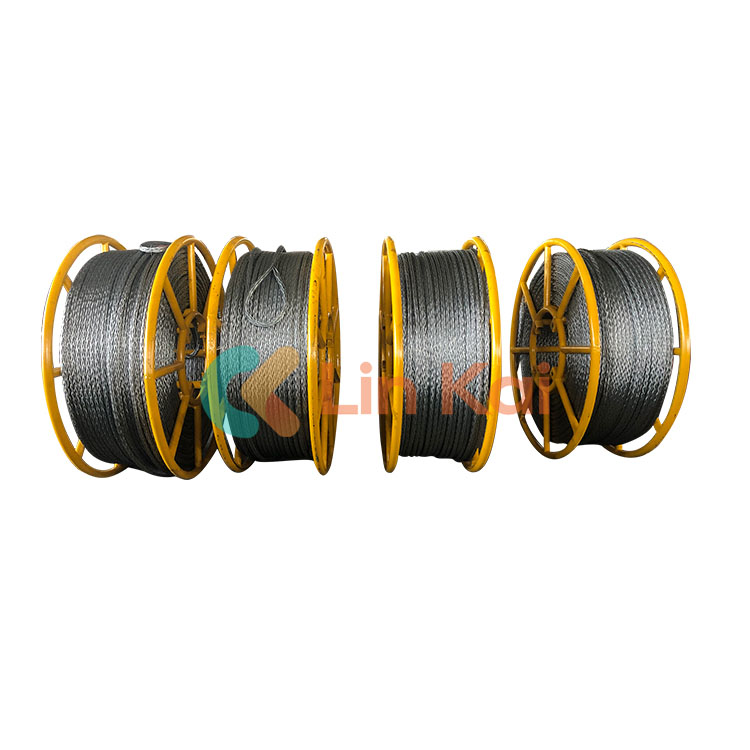

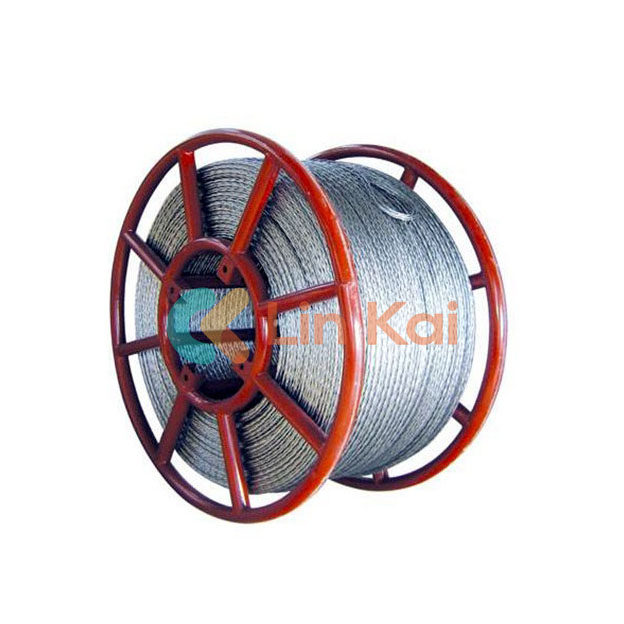

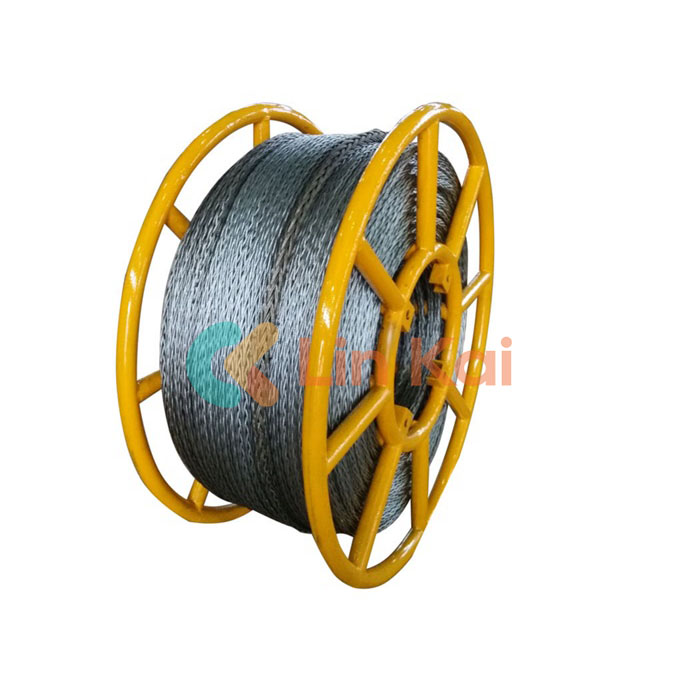

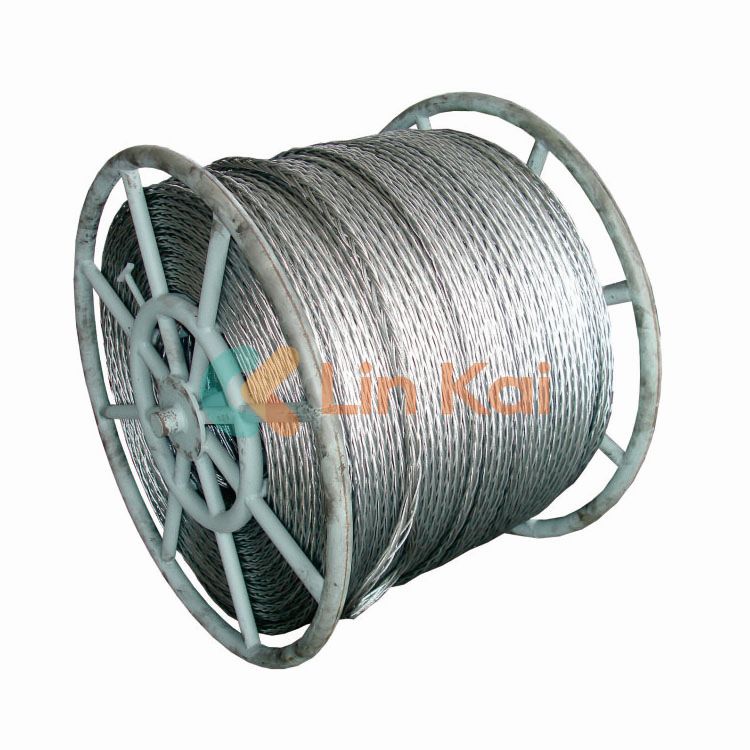

Pulling a single conductor or OPGW on an overhead transmission line is done with 14mm Anti Twisting Braided Steel Rope. It can also be used to pull larger conductors on extremely high transmission lines. This 14mm Anti Twisting Braided Steel Rope has a diameter of 1000 meters per drum and is braided from 12 strands of 3.2mm 1X19W steel wire. It has a breaking force of 130 KN and a lubricated weight of 710 kg/1000 m. The steel drum may be mounted directly to the puller's reel winder.

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Lubricated Weight (kg/1000m)
18206A	14	130.00	Φ3.2	1960	710

14mm Anti Twisting Braided Steel Rope can homogeneously distribute the pressure between the elementary wires. And it is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
