14mm Anti Twist Steel Wire Rope

The 14mm Anti Twist steel wire rope, manufactured in China to high-quality standards, is essential for pulling single conductors or OPGW on overhead transmission lines. It's also suitable for super-high transmission lines, facilitating the pulling of larger conductors. This durable 14mm Anti Twist Steel Wire Rope, provided by a reputable manufacturer and supplier with factories in China, enhances efficiency during overhead transmission line stringing work. It comes with a reliable 1-year warranty, ensuring peace of mind for users.

Send Inquiry

Product Description

This 14mm Anti Twist steel wire rope is specially braided from 12 strands of high strength, highly flexible galvanized steel wire. The braided steel strand has high flexibility, and complete stability to rotation under tension force. The 14mm Anti Twist steel wire rope can homogeneously distribute the pressure between the elementary wires.

When stringing overhead transmission lines, this sturdy steel rope from a reputable manufacturer and supplier with factories in China increases productivity. With its trustworthy 1-year warranty, customers can purchase with confidence.

14mm Anti Twist steel wire rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operations.

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Lubricated Weight (kg/1000m)
18206A	14	130.00	Φ3.2	1960	710

14mm rope is braided from 12 strands of 3.2mm 1X19W steel wire, 1000 meter/drum

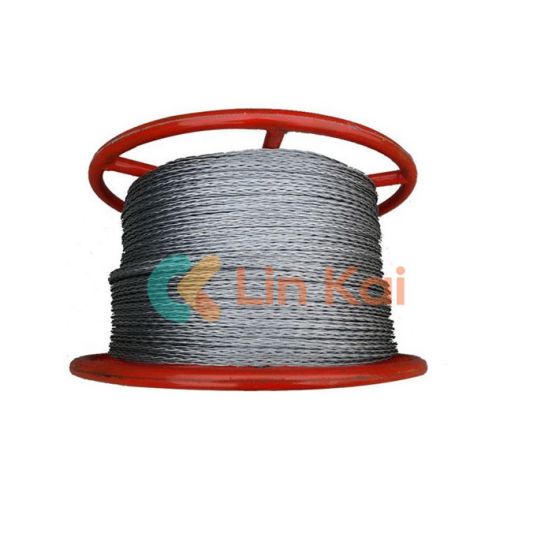

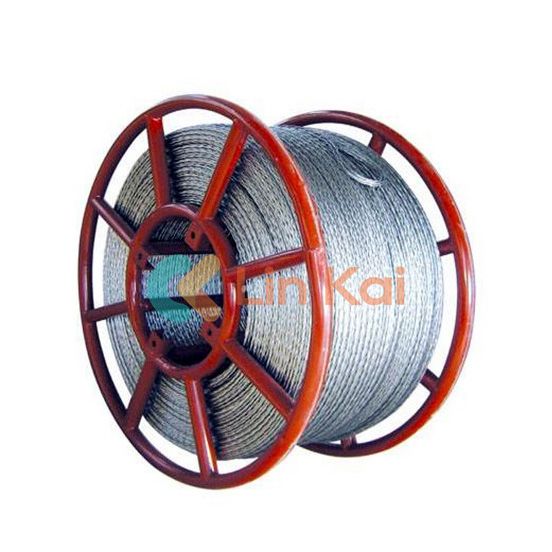

Packed in 1200mm diameter steel drum.

The main structure of the 14mm Anti Twist steel wire rope is composed of multiple strands of steel wire rope wound, and there is a specially made steel core wound at the core of the steel wire rope, which can effectively prevent the twisting deformation of the steel wire rope. Anti-twist steel wire rope has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. At the same time, 14mm Anti Twist steel wire rope also has good flexibility and high load-bearing capacity

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
