16mm Anti Twist Steel Wire Rope

The Wholesale 16mm Anti Twist Steel Wire Rope, crafted in China to uphold high quality and durability, is ideal for two bundled conductor stringing in 150KV or 220 KV overhead power lines. It features a braid composed of 3.5 single steel wires made from high-strength galvanized steel, ensuring it remains steady without twisting during operation. This 16mm Anti Twist Steel Wire Rope, manufactured by a reputable supplier with a factory in China, maintains a soft texture and guarantees reliability with a 1-year warranty against breakage.

Send Inquiry

Product Description

When laying overhead transmission lines, 16mm Anti Twist Steel Wire Rope is utilized as the pilot wire rope to draw conductors or OPGW cable. Braided using 1960 MPa high-strength galvanized steel wire, 16 mm anti-twisting braided steel wire rope resists rotation when being pulled.

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18208A	16	160	Φ3.5	1960	800

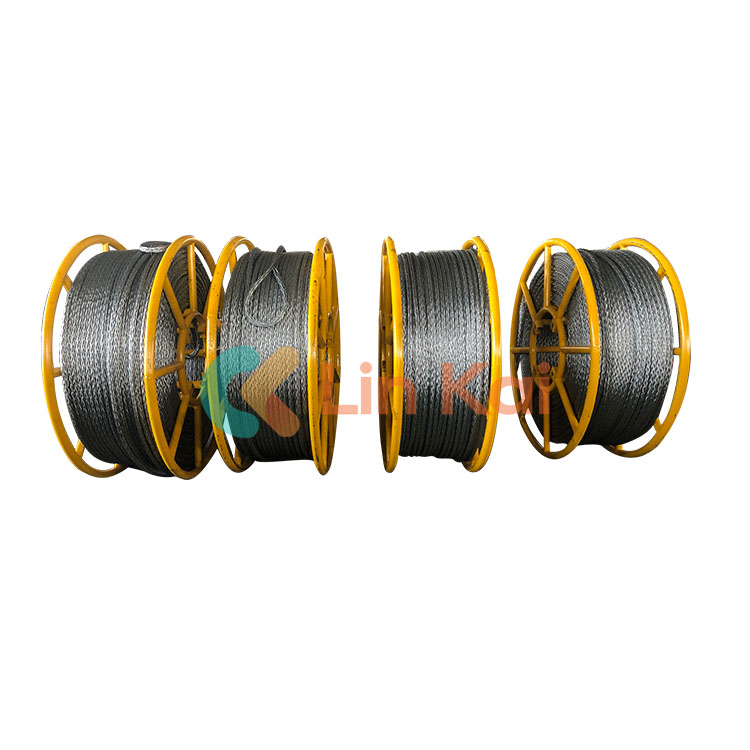

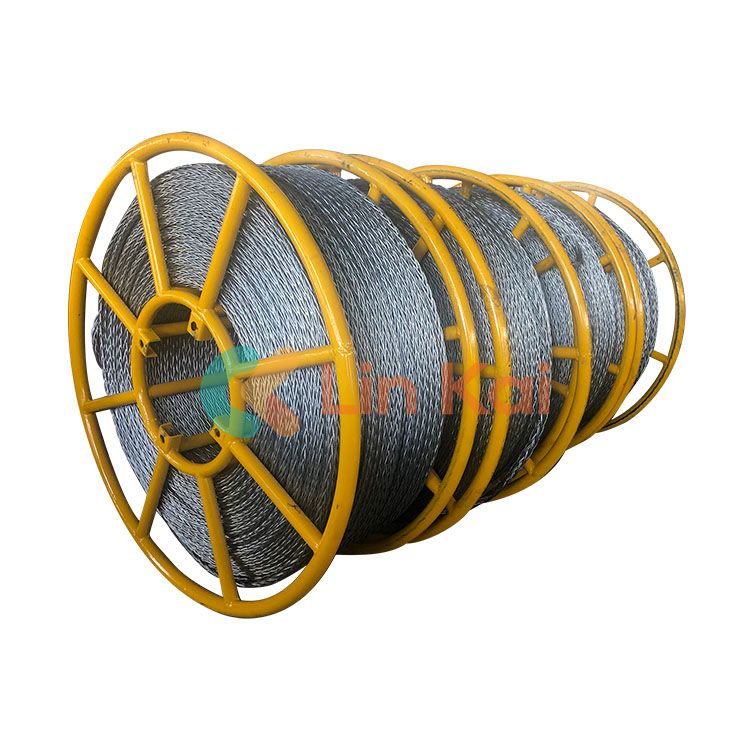

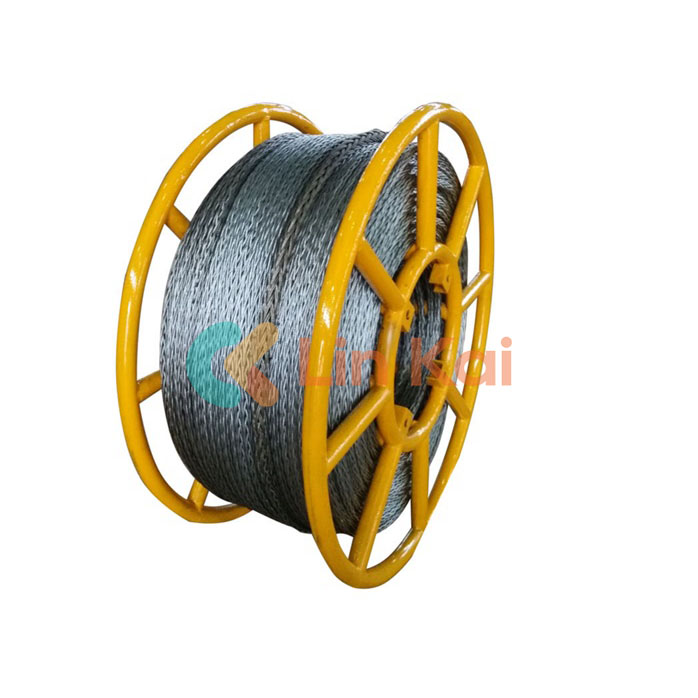

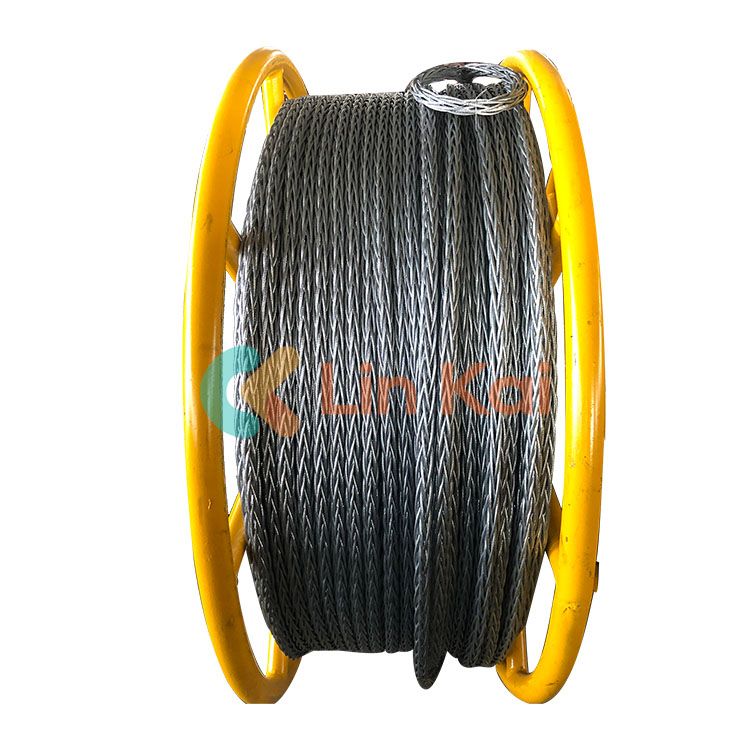

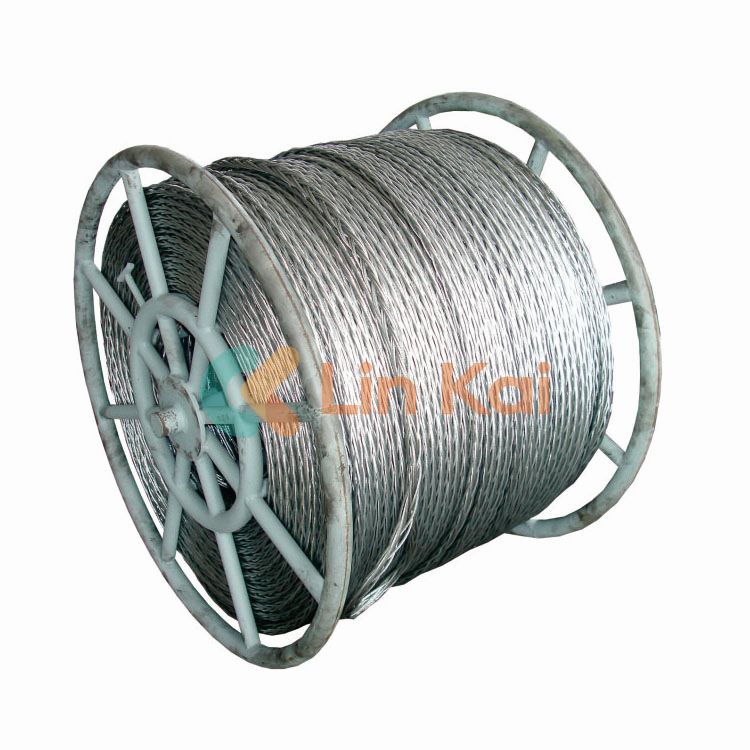

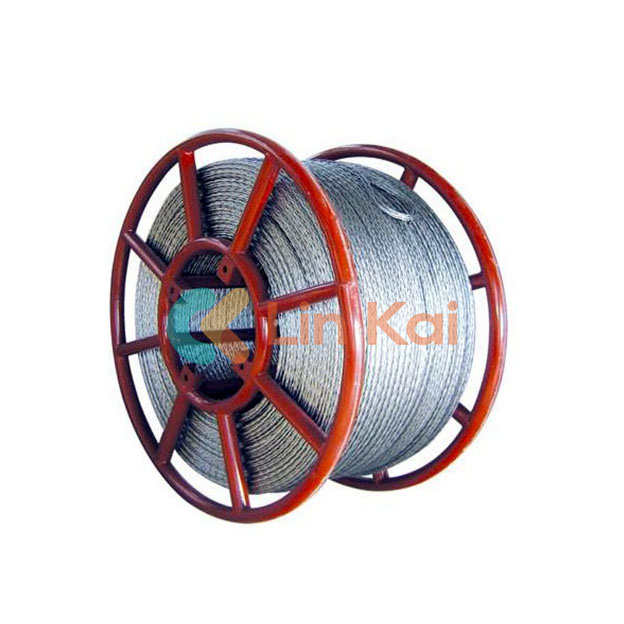

16mm Anti Twist Steel Wire Rope is braid from 12 strands high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force. 16mm steel rope is made of 3.5 mm single steel wire, and be packed into 1200mm X 1100mm X560mm GSP series reel, with 1000m/reel.

Our 16mm Anti Twist Steel Wire Rope has been exported to more than 50 countries in the world. We have 8 strands, 12 strands, 18 strands type anti twisting steel wire rope for different size up to 42mm diameter.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
