Anti-Twisting Steel Wire Rope

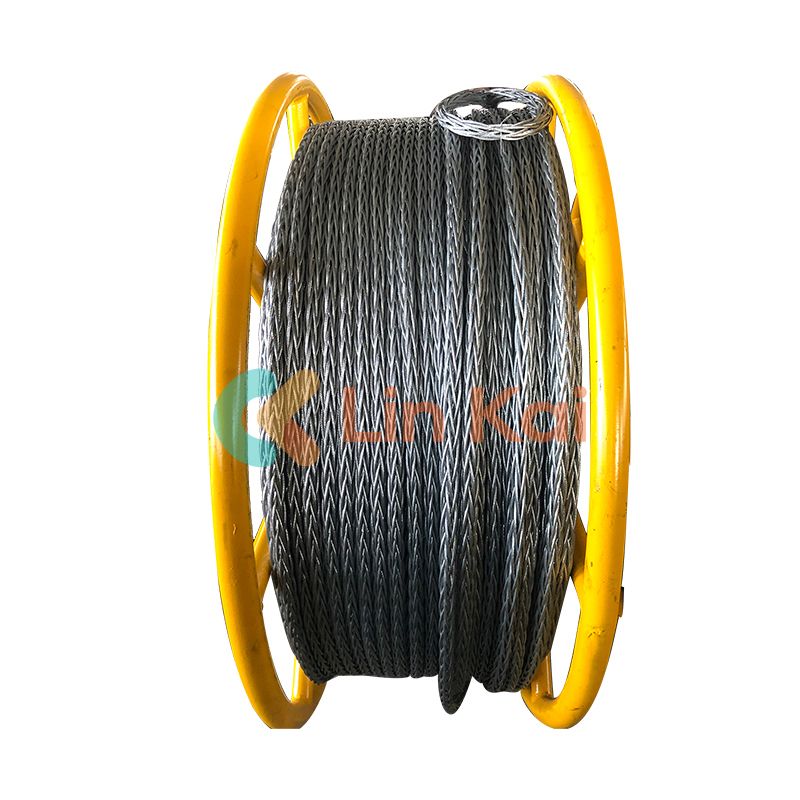

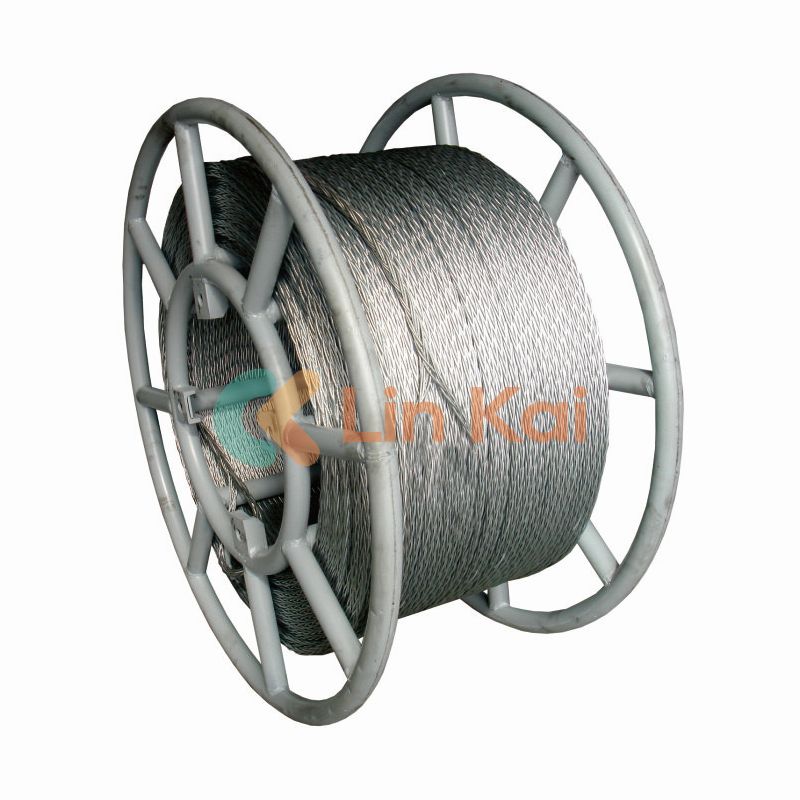

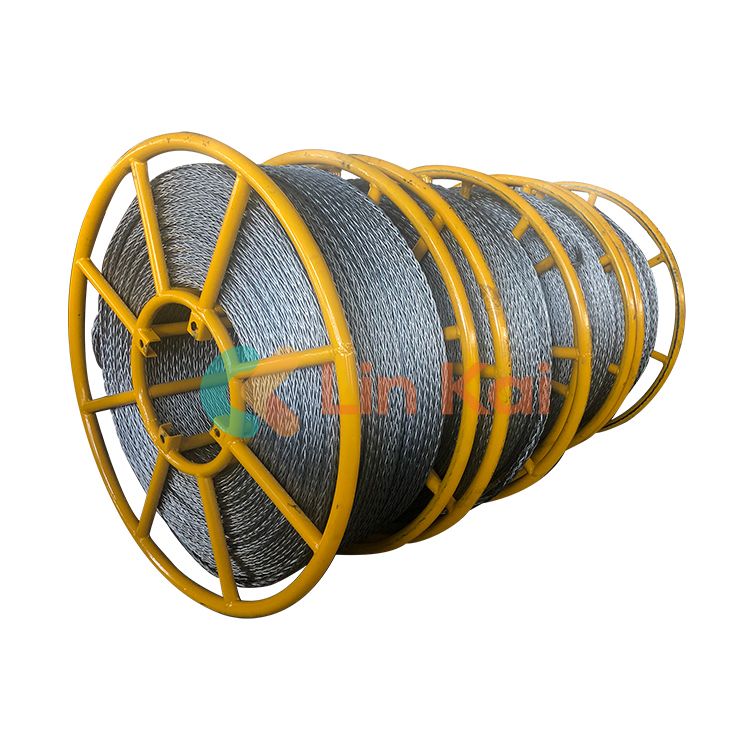

Ningbo Lingkai’s high-quality Anti-Twisting steel wire rope has 8 strands and 16 strands of high-strength, flexible oiled galvanized steel wire. This braided steel strand has high flexibility and can complete stability to rotation under tension force. This Anti-Twisting steel wire rope is packed in the steel drum, which can be installed directly on the reel winder of the puller.

Send Inquiry

Product Description

Anti-Twisting Steel Wire Rope is made in China at the Ningbo Lingkai Plant, which is a very big OEM plant. We have 10 machines to run every day and night to process the steel wire editing into Anti-Twisting Steel Wire Rope. This raw material for the steel wire is from one of the two government-authorized steel rope plants. So the single steel wire has a very high top strength. Our Anti-Twisting steel wire rope can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work.

Anti-twisting steel wire rope can be totally customized per client's diameter size, and it is used as a pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operations.

Item number	Structure	Diameter (mm)	Single bundle diameter (mm)	Breaking force (kN)	Weight (kg/m)	Production length (m)
18101	Square eight strands	7	φ2.0	34.38	0.178	1000
18102		9	φ2.5	53.9	0.305
18103		11	φ3.0	76.94	0.386
18104		13	φ3.5	105.04	0.552
18105		15	φ4.0	137.51	0.692
18108	Square twelve strands	9	φ2.0	51.57	0.25
18109		11	φ2.5	80.8	0.458
18110		13	φ3.0	115.4	0.579
18111		15	φ3.5	157.55	0.828
18112		18	φ4.0	206.27	1.038
18113		20	φ4.5	260.3	1.331	800
18114		23	φ5.0	320.82	1.557
18115		25	φ5.5	387.83	1.882
18118	Hexagon twelve strands	11	φ2.5	80.8	0.458	1000
18119		13	φ3.0	115.4	0.579
18120		15	φ3.5	157.5	0.828
18121		18	φ4.0	205.71	1.038
18122		20	φ4.5	260.34	1.331	800
18123		23	φ5.0	320.82	1.638	800
18124		25	φ5.5	387.82	2.039	600
18125		27	φ6.0	461.5	2.373
18126		28	φ6.2	520	2.6
18127		30	φ6.5	560	3.12
18140	Hexagon eighteen strands	21	φ3.0	173.1	0.87	800
18141		24	φ3.5	236.33	1.242	800
18151		27	φ4.0	309.4	1.557	600
18152		30	φ4.5	389.28	1.997
18153		33	φ5.0	481.22	2.457
18154		36	φ5.5	581.75	3.059
18154A		39	φ6.0	692.26	3.56
18154B		42	φ6.5	817	4.227
