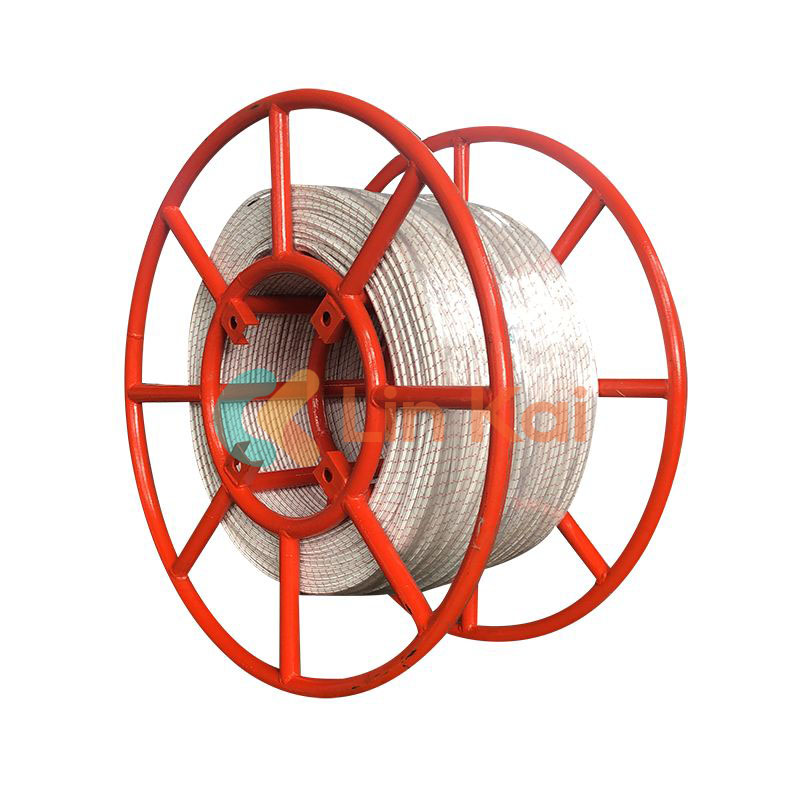

Dyneema Rope for pulling conductors or OPGW on hot transmission line

The durable Dyneema Rope for pulling conductors or OPGW on hot transmission lines supplied by LIngkai factory that are twisted together with the same diameter to form this anti-twisting braided steel wire rope. The Dyneema Rope for pulling conductors or OPGW on a hot transmission line cannot rotate radially because of the strong stability of its non-rotating feature, which is made possible by the equal proportions of right- and left-hand lay strands.

Send Inquiry

Product Description

The High Strength Dyneema Rope for pulling conductors or OPGW on hot transmission line 1 Years Warranty, on the other hand, is made from special polyester fibers that are braided together using 12 strands. This allows the rope to be exceptionally strong and durable, while also providing it with the flexibility it needs to handle the complex movements that are often required during overhead transmission line stringing operations.

Dyneema Rope for pulling conductors or OPGW on hot transmission line Made in China is also covered with a protective layer to help extend its lifespan. Like Dyneema rope, the High Strength Dupont Rope is ideal for use as a pilot rope or pulling rope. It can easily handle heavy loads while still remaining stable and secure.

Durable Dyneema Rope for pulling conductors or OPGW on hot transmission line is frequently used for overhead transmission line stringing and other construction projects. Whether you are working on a utility repair project or a major construction job, the High Strength DuPont Rope is a reliable and durable choice for all of your needs.

DOUBLE LAYER BRAIDED UHMWPE ROPE (DYNEEMA ROPE)

Item No.	Nominal diameter (mm)	Breaking Load (KN)	Diameter after covering Polyester (mm)	Net Weight (kg/1000m)	Weight After Covering (kg/1000m)
18170A	2	4.3	3	2.70	4.8
18170B	3	8.5	4.5	4.65	9.6
18170D	4	16.6	5.5	9.31	13.5
18170F	5	24.4	7	14	20
18170G	6	31.9	8	20	28.2
18170H	7	43.6	9	27	36
18170J	8	58.8	10	35	48.4
18170K	9	70.3	11	42	58.5
18170L	10	92.5	12	56	77
18170M	11	115	13	70	97
18170N	12	137	14	84	113.4
18170P	13	159	15	98	132
18170Q	14	180	16	106	150
18170R	16	211	18	132	177
18170S	18	296	21	186	247.3
