Braided UHMWPE rope for stringing overhead transmission line

Braided UHMWPE rope for stringing overhead transmission lines made in China offer a smooth surface that self-lubricates, unmatched abrasion resistance, and high strength thanks to its hollow braid and 0.5mm–1.6mm diameter. For further security, Braided UHMWPE rope for stringing overhead transmission lines is most effective when used as whipping twine to bind rope ends and spliced eyes. strong webbing sewing cable; robust repair cord and sewing thread for bulky canvas, tarps, backpacks, and load-bearing apparatus; Utility wires and emergency fishing line outside.

Send Inquiry

Product Description

Applications:

Braided UHMWPE rope for stringing overhead transmission line Made in China can also be used in live line or hot line pulling, which is a technique used to maintain power transmission while still energized. On the other hand, High Strength Braided UHMWPE rope for stringing overhead transmission line 1 Years Warranty is made from special polyester fiber that is precisely braided from 12 strands. It also has a protective layer that enhances its resilience to abrasion and impact. This Durable Braided UHMWPE rope for stringing overhead transmission line is particularly useful as a pilot rope or pulling rope during overhead transmission line stringing operations. Its soft and pliable design allows it to pass through pulleys and make corners smoothly without snagging or breaking.

The double layer high strength Dupont polyester fiber rope is braided in a special way that makes it anti-twisting and light weight. This type of fiber rope is commonly used as pilot rope or pulling rope during overhead transmission line stringing operations. Quality Braided UHMWPE rope for stringing overhead transmission line can also be utilized for hot line work, helicopter stringing, or drone stringing.

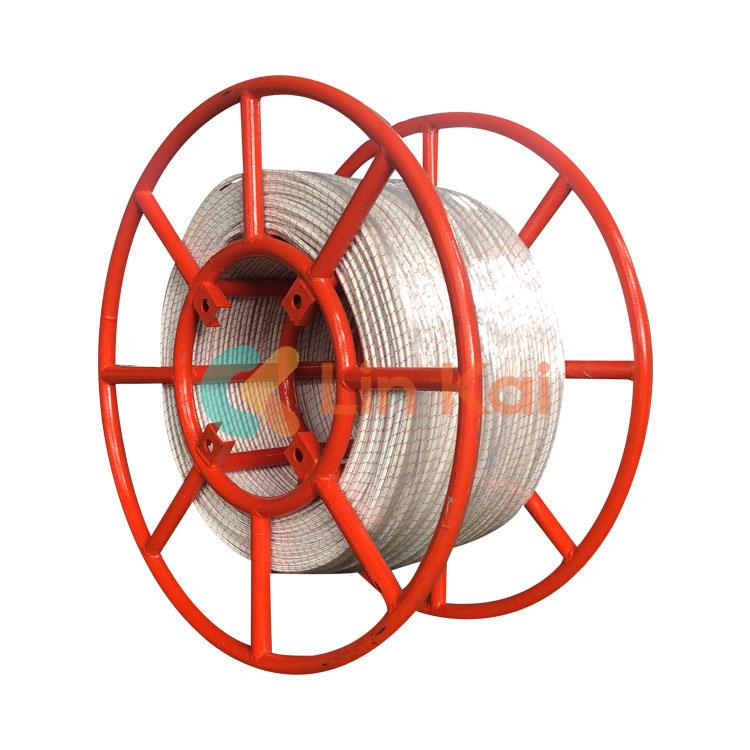

The high-strength fiber rope is packaged in a steel reel that can be easily installed onto the reel winder of a hydraulic puller. The reel effectively ensures the safe storage and transportation of the rope.

DOUBLE LAYER BRAIDED UHMWPE ROPE (DYNEEMA ROPE)

Item No.	Nominal diameter (mm)	Breaking Load (KN)	Diameter after covering Polyester (mm)	Net Weight (kg/1000m)	Weight After Covering (kg/1000m)
18170A	2	4.3	3	2.70	4.8
18170B	3	8.5	4.5	4.65	9.6
18170D	4	16.6	5.5	9.31	13.5
18170F	5	24.4	7	14	20
18170G	6	31.9	8	20	28.2
18170H	7	43.6	9	27	36
18170J	8	58.8	10	35	48.4
18170K	9	70.3	11	42	58.5
18170L	10	92.5	12	56	77
18170M	11	115	13	70	97
18170N	12	137	14	84	113.4
18170P	13	159	15	98	132
18170Q	14	180	16	106	150
18170R	16	211	18	132	177
18170S	18	296	21	186	247.3
