Braided Dupont Polyester Rope for Transmission Line Stringing

Lingkai offers exceptional customer care and a wide range of high-quality products, including custom designs, for ground wire clips, cable rope pulleys, and stringing blocks besides Braided Dupont Polyester Rope for Transmission Line Stringing. We invite both domestic and international clients to collaborate and build a promising future together.

Send Inquiry

Product Description

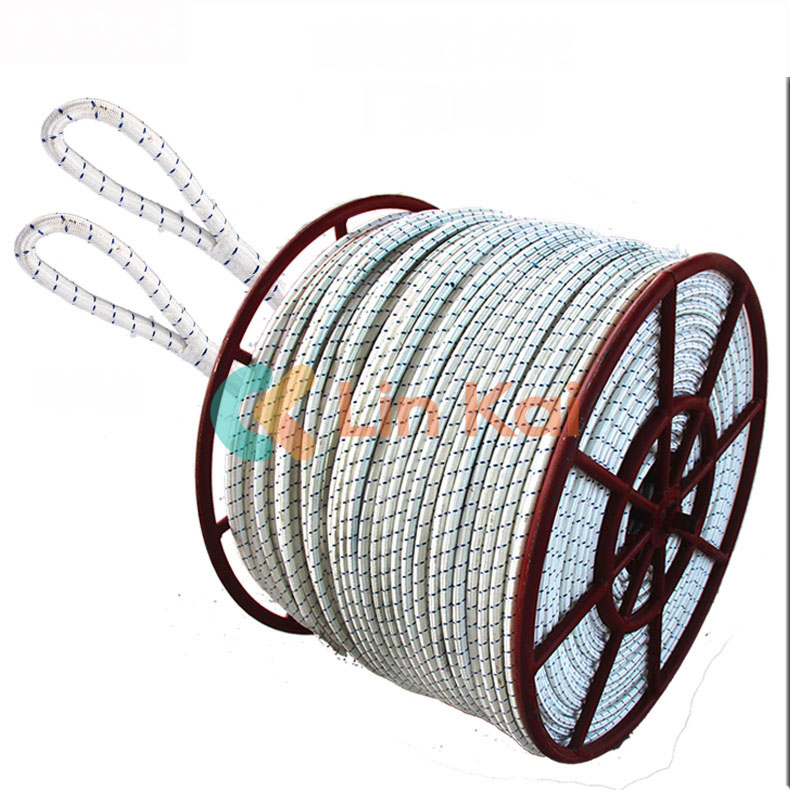

Braided Dupont Polyester Rope for Transmission Line Stringing Made in China is a type of rope that is made by braiding high strength UHMWPE (ultra-high molecular weight polyethylene) fibers together. It is then covered with a protective polyester layer. The combination of these materials provides the rope with exceptional strength and durability.

Durable Braided Dupont Polyester Rope for Transmission Line Stringing 1 Years Warranty is frequently used for overhead transmission line conductor or OPGW stringing projects as it can easily support heavy loads.

In addition to its use in transmission projects, is also ideal for live or hot line pulling. This is because it is designed to withstand high temperatures and remain stable even in harsh conditions.

Because of this, Quality Braided Dupont Polyester Rope for Transmission Line Stringing is often used in projects that require a rope that can withstand the rigors of heavy use, such as those done during utility repairs or construction.

DOUBLE LAYER BRAIDED UHMWPE ROPE (DYNEEMA ROPE)

Item No.	Nominal diameter (mm)	Breaking Load (KN)	Diameter after covering Polyester (mm)	Net Weight (kg/1000m)	Weight After Covering (kg/1000m)
18170A	2	4.3	3	2.70	4.8
18170B	3	8.5	4.5	4.65	9.6
18170D	4	16.6	5.5	9.31	13.5
18170F	5	24.4	7	14	20
18170G	6	31.9	8	20	28.2
18170H	7	43.6	9	27	36
18170J	8	58.8	10	35	48.4
18170K	9	70.3	11	42	58.5
18170L	10	92.5	12	56	77
18170M	11	115	13	70	97
18170N	12	137	14	84	113.4
18170P	13	159	15	98	132
18170Q	14	180	16	106	150
18170R	16	211	18	132	177
18170S	18	296	21	186	247.3
