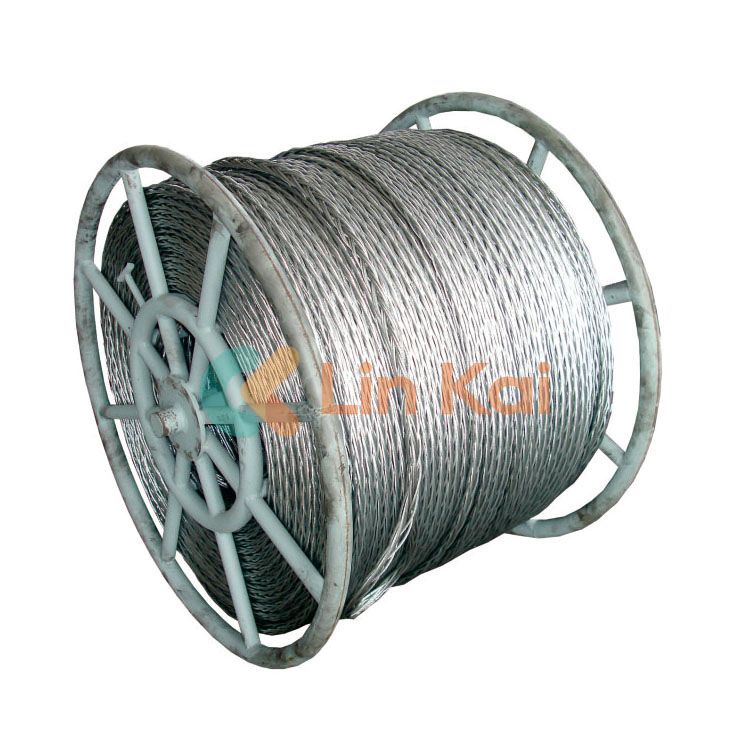

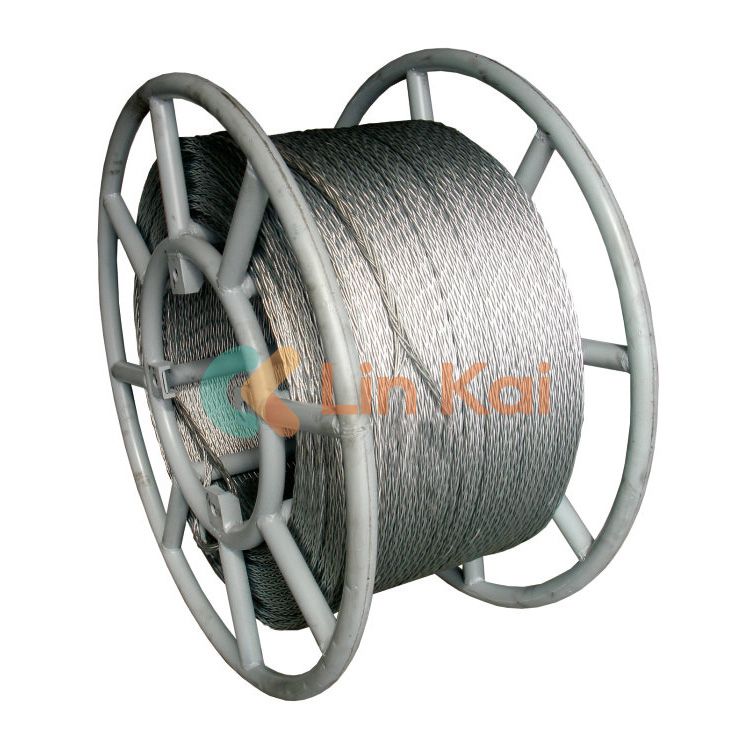

13mm Anti Twisting Braided Steel Wire Rope

The 13mm Anti Twisting Braided Steel Wire Rope, manufactured in China, stands out in lifting, transportation, and drilling platforms, petroleum operations, large machinery, bridge construction, and construction engineering. Renowned for its high quality, durability, and stability, this 13mm Anti Twisting Braided Steel Wire Rope from reputable manufacturers and suppliers in China ensures precision and safety in demanding applications. Each rope is backed by a 1-year warranty, reflecting its reliability and suitability for critical engineering tasks.

Send Inquiry

Product Description

13mm Anti Twisting Braided Steel Wire Rope, twelve strands of very flexible and strong galvanized steel wire are carefully braided to create anti-twisting braided steel wire rope. High flexibility and total stability to rotation under tension stress characterize the braided steel strand.

This 13mm Anti Twisting Braided Steel Wire Rope from reliable Chinese manufacturers and suppliers is well-known for its excellent quality, durability, and stability. It provides precision and safety in demanding applications. Each rope is covered by a one-year warranty, demonstrating its dependability and appropriateness for crucial technical applications.

13MM ANTI TWISTING BRAIDED STEEL WIRE ROPE

In the process of stringing overhead transmission lines, conductors or OPGW cable are pulled using anti-twist braided steel wire rope as a pilot wire rope.

Item No.	Nominal diameter		Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Lubricated Weight (kg/1000m)
18205A	13	115.00		Φ3.0	1960	630

13mm Anti Twisting Braided Steel Wire Rope is braided from 12 strands of 1X19W wire, 1000 meter/drum

Packed in 1200mm diameter steel drum

13mm Anti Twisting Braided Steel Wire Rope is made using reverse winding technology, which can effectively prevent the twisting deformation of the steel wire rope. It has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. It is widely used in lifting, lifting, conveying, and construction fields.

12 Strands 13mm Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
