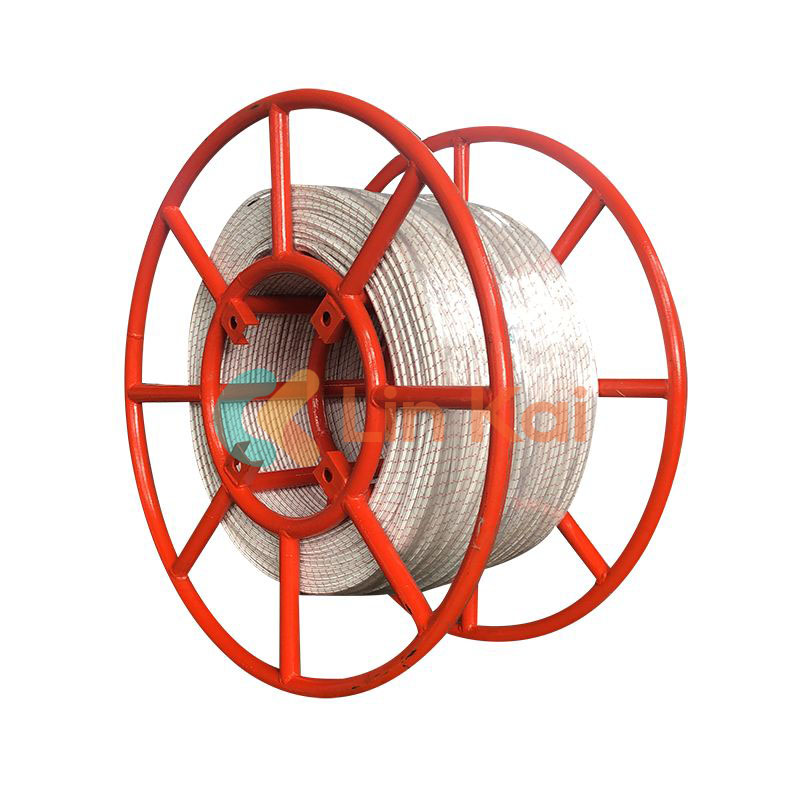

Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire

When stringing overhead transmission lines, OPGW, ground wire, and earth wire are strung together using 10mm anti-twisting steel wire rope. This durable Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire is specifically braided from high-strength, galvanized steel wire for stringing OPGW and ground wire. The braided steel strand has total stability to rotate under tension force and a high degree of flexibility.

Send Inquiry

Product Description

The Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire manufactured by lingkai factory is primarily composed of multiple strands of steel wire rope wound in a specific structure. The core of the Anti Twisting Steel Wire Rope 10mm is specially made with a steel core wound at the center, which effectively prevents twisting deformation. Due to this unique design, the Anti Twisting Steel Wire Rope 10mm has numerous benefits.

Firstly, Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire 1 Years Warranty exhibits outstanding fatigue resistance. This feature enables the wire rope to withstand bending and stretching without breaking easily, even after prolonged use. Additionally, the Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire Made in China has excellent durability that prolongs its lifespan, ensuring it can last for many years.

Secondly, the Anti Twisting Steel Wire Rope 10mm has a high tensile strength as the multiple steel strands are designed to work together to support heavy loads. Furthermore, the Anti Twisting Steel Wire Rope 10mm 's core design provides it with excellent flexibility, which makes it highly versatile for various applications.

In summary, high quality Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire is a reliable and durable material that can support heavy loads while exhibiting excellent fatigue resistance, flexibility, and a long service life.

The Anti Twisting Steel Wire Rope 10mm for stringing OPGW and Ground Wire can evenly transfer pressure across the primary wires while stringing OPGW and Ground Wire. Using a specialized rope can boost productivity when laying overhead transmission lines.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
