Anti Twist Wire Rope 24MM for Stringing 6 Conductors

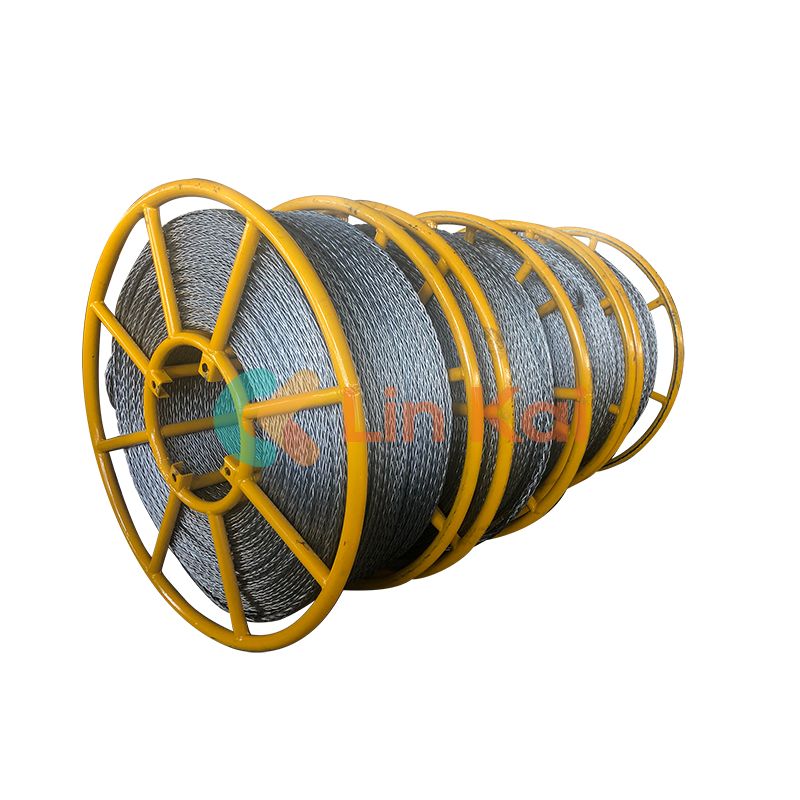

The China Anti Twist Wire Rope 24MM for stringing 6 conductors evenly distributes the pressure between each wire. This special wire rope increases efficiency during overhead power line erection work. The durable Anti Twist Wire Rope 24MM for stringing 6 conductors is mounted in a steel drum and can be directly mounted on the reel of the traction machine.

Send Inquiry

Product Description

Anti Twist Wire Rope 24MM for stringing 6 conductors made in Ningbo Lingkai China Manufactures, the key advantages is that our highly quality Anti Twist Wire Rope 24MM for stringing 6 conductors raw material is from our China only one government authorized steel wire plant, it means, this wire rope is highly 1.25 times break force than the other all in China.

Anti-twisting braided steel wire rope Applications:

The Anti Twist Wire Rope 24MM for stringing 6 conductors is a highly versatile tool that is utilized in mechanical pulling and tensioning release conductors when pulling force or leading rope is required.

More specifically, Anti Twist Wire Rope 24MM for stringing 6 conductors plays an important role in the pulling of a single conductor or OPGW on the overhead transmission line. Its unique capabilities also enable its use on super-high transmission lines for pulling bigger conductors with higher efficiency.

Given its anti-twisting properties, this special Anti Twist Wire Rope 24MM for stringing 6 conductors can optimize work efficiency and promote safety while undertaking overhead transmission line stringing work.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020

Customization:

1. Brand Name: Lingkai

2. Model Number: Anti-twist steel wire rope

3. Place of Origin: Ningbo China

4. Certification: ISO CE

5. Minimum Order Quantity: 2000m

6. Price: Contact us for the latest pricing information

7. Packaging Details: Drum, reel

8. Delivery Time: 7-10 days

9. Payment Terms: T/T

10. Supply Ability: 200 KM PER MONTH

11. Feature: Light, Flexible

12. Strands: 12 Or 8

13. Number Of Strands: 12 Or 8

14. Broken Load: High Strength

15. Lead Time: Within 10 Days

Our Anti Twist Wire Rope 24MM is perfect for stringing 6 conductors, while our Anti Twisting Steel Wire Rope 10mm is ideal for stringing OPGW and Ground Wire. For pulling four Bundled Conductors on a transmission line, our Anti Twist Steel Wire Rope 20mm is the right choice.
