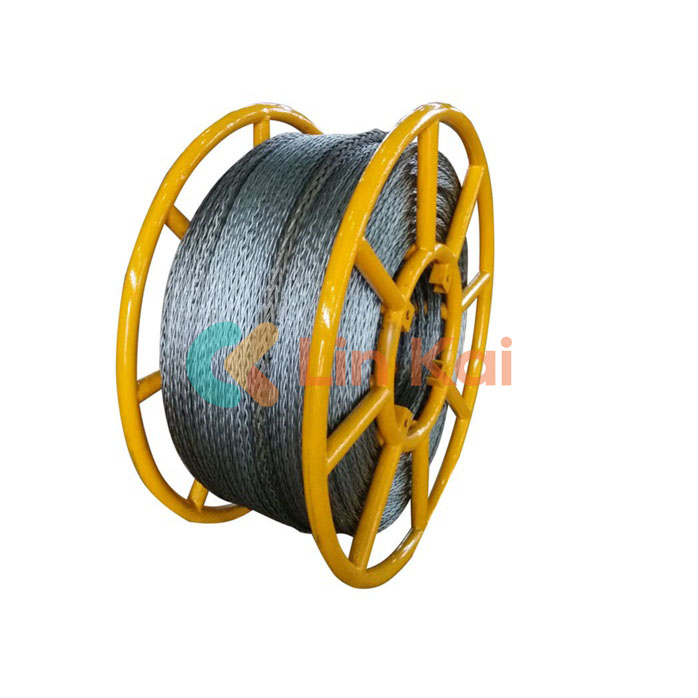

Anti Twist Steel Wire Rope 20mm for Pulling Four Bundled Conductors

Durable Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors on transmission line has high tensile strength and durability and has a long service life when used properly. Anti-twist wire rope 20mm also has excellent flexibility and high load-bearing capacity, suitable for a variety of occasions such as construction, industry, and marine.

Send Inquiry

Product Description

The Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors on transmission line has a unique structure that consists of several strands of steel wire rope wound together. A specially designed steel core is wound at the center of the steel wire rope to prevent twisting deformation.

This design makes the High Quality Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors highly effective in applications that require frequent or prolonged use. One of the significant advantages of the Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors is its fatigue resistance, making it capable of withstanding high levels of wear and tear. It is also durable, with a high tensile strength that gives it a long service life when used appropriately.

Additionally, the Anti Twist Steel Wire Rope 20mm for pulling four Bundled Conductors offers excellent flexibility and has a high load-bearing capacity, making it ideal for use in a range of settings, including construction, industrial, and marine applications.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
