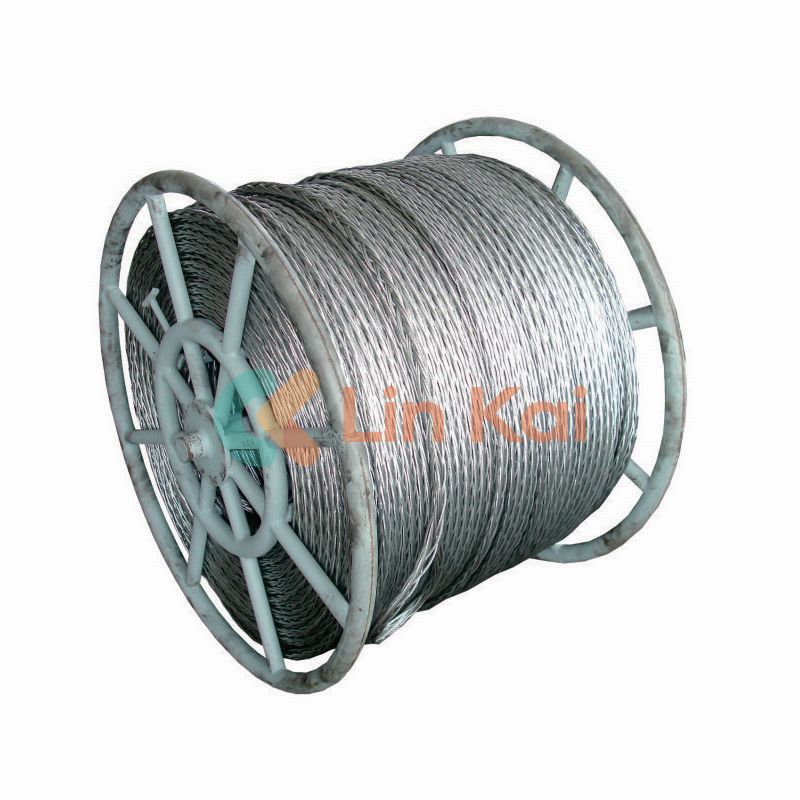

Anti Twist Braided Steel Rope 12MM for Pulling Single Conductor or OPGW

There is a specially designed steel core in the middle of the Anti Twist Braided Steel Rope 12MM for pulling single conductor or OPGW to prevent the wire rope from twisting and deformation. The Anti Twist Braided Steel Rope 12MM for pulling single conductor or OPGW factory Lingkai made in China has many advantages, including excellent fatigue resistance, long life, durability, and high tensile strength.

Send Inquiry

Product Description

The Composition and Benefits of Anti Twist Braided Steel Rope 12MM for pulling single conductor or OPGW factory Lingkai made in China

The Anti Twist Braided Steel Rope 12MM for pulling single conductor or OPGW is a unique kind of wire rope that boasts a primary structure consisting of multiple wire strands that are wound together. In addition, there is a specially designed steel core wound in the middle of the wire rope, which performs the essential task of preventing the steel wire rope from developing any sort of twisting deformations.

The Anti Twist Braided Steel Rope 12MM for pulling single conductor or OPGW offers a host of benefits, including excellent fatigue resistance, longevity, durability, and high tensile strength. As a result, Anti twisting braided steel wire rope is perfect for a wide range of applications and is known for its reliable performance. The excellent flexibility and high load-bearing capacity also make this wire rope ideal for use in diverse fields.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
