22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line

22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line is used for erecting four bundles of conductors on transmission lines as a guide rope or traction rope. The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line is double-braided with spliced eyelets at both ends. The wire rope can be dyed in different colors for use in live working.

Send Inquiry

Product Description

Support and Services:The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line is designed to provide high performance and durability in various applications such as cranes, elevators, and mining equipment.

Our technical support team is dedicated to assisting you with any questions or issues you may encounter during installation or operation of the product. We also offer maintenance and repair services to ensure the longevity and reliability of your Anti Twist Steel Rope.

Packing and Shipping:Product Packaging:

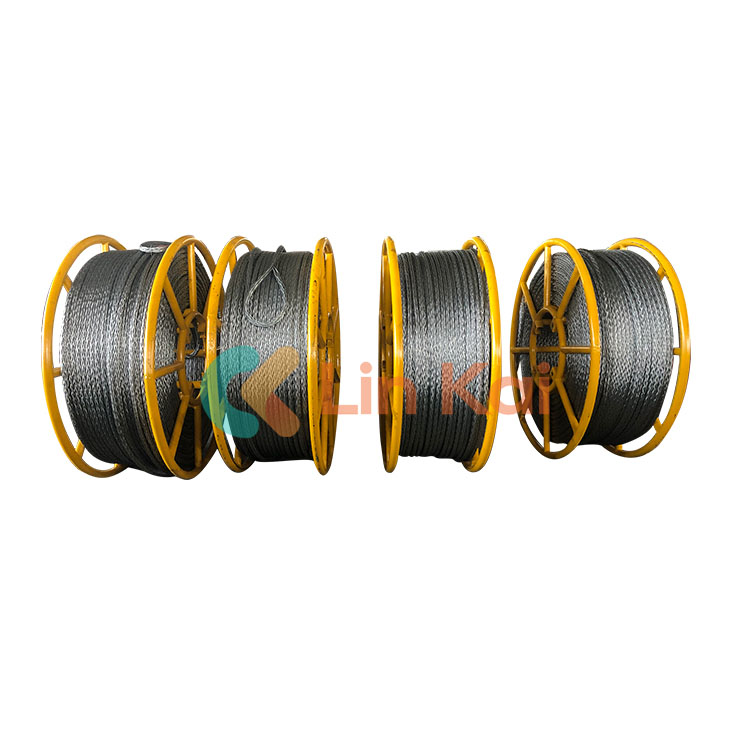

The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line comes in a sturdy GSP reels with the product name and description printed on the front., the 22mm Anti Twisting Pilot Wire Rope is securely wrapped in plastic to prevent any damages during transit.

Shipping:

The 22mm Anti Twisting Pilot Wire Rope for stringing four Conductors on transmission line is shipped via standard shipping and usually takes 3-15 business days for delivery. Once shipped, customers will receive a tracking number to track the delivery status of their product.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
