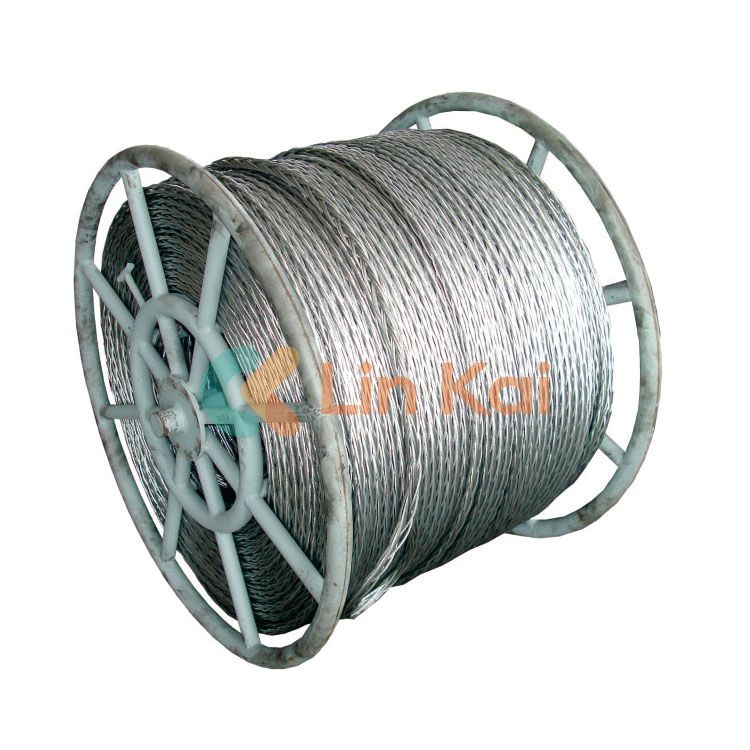

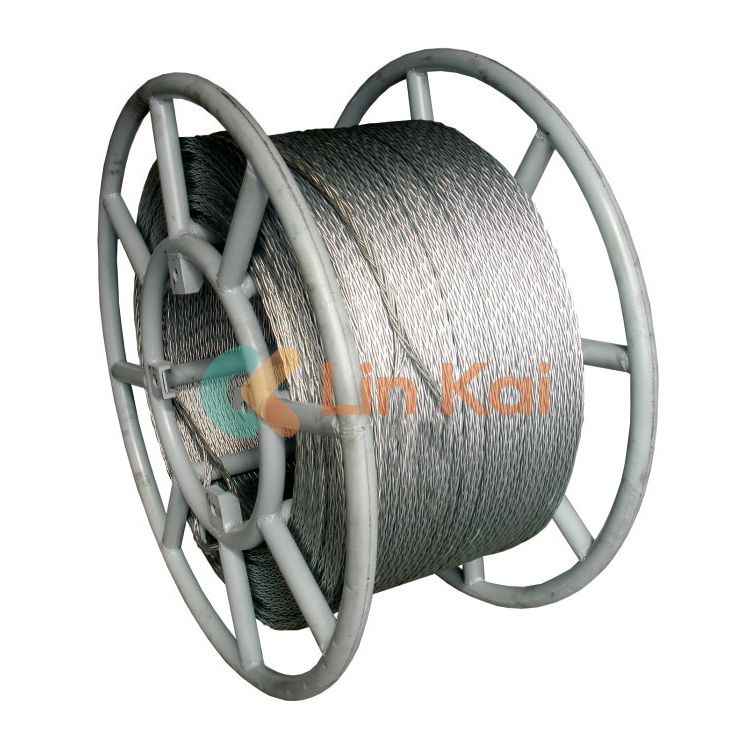

11mm Anti Twisting Braided Steel Rope

The 11mm Anti Twisting Braided Steel Rope, crafted in China to ensure high quality and durability, is constructed from 2.5mm galvanized steel wire. It serves the essential function of pulling OPGW cables on overhead transmission lines. Available in two varieties, with options of eight or twelve strands of tiny anti-twisting braided steel wire, this 11mm Anti Twisting Braided Steel Rope is designed for reliability and efficiency in industrial applications. As it is made in China by a reputable manufacturer and supplier, it comes with a dependable 1-year warranty, ensuring long-lasting performance.

Send Inquiry

Product Description

Ningbo Lingkai created and manufactured our own braiding machines for anti-twisting steel wire rope with eight, twelve, and eighteen strands. Our 11mm Anti Twisting Braided Steel Ropes are rapid, have a tight braiding force, and balance the force and speed of the braids between the strands.

It comes in two types, with eight or twelve strands of microscopic anti-twisting braided steel wire, and is designed for efficiency and dependability in industrial applications. It is also backed by a solid 1-year guarantee, assuring long-lasting performance.

11mm Anti Twisting Braided Steel Rope, when stringing overhead transmission lines, anti-twisting braided steel wire rope is utilized as the pilot wire rope to draw conductors or OPGW cable.

Item No.	Nominal diameter		Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Lubricated Weight (kg/1000m)
18203A	11	82.00		Φ2.5	1960	420

We produce 8 strands, 12 strands, 18 strands anti-twisting steel wire rope according to customer's requirement. 8 strands is used for braiding small diameter rope up to 13mm diameter, 12 strands is usually used for rope up to 26mm diameter. 18 strands is used for big diameter rope up to 34 mm diameter.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter		Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN		2.0mm	1960	250
18202A	10mm	70 kN		2.3mm	1960	356
18203A	11 mm	85 kN		2.5mm	1960	410
18204A	12 mm	100 kN		2.7mm	1960	510
18205A	13 mm	115 kN		3.0mm	1960	620
18206A	14 mm	130 kN		3.2mm	1960	710
18207A	15mm	143 kN		3.3mm	1960	770
18208A	16mm	160 kN		3.5mm	1960	800
18209A	18mm	206 kN		4.0mm	1960	1060
18210A	19mm	236 kN		4.3mm	1960	1210
18211A	20mm	266 kN		4.5mm	1960	1310
18212A	22 mm	316 KN		4.8 mm	1960	1500
18213	23 mm	342 KN		5.0 mm	1960	1650
18213A	24 mm	360 KN		5.2 mm	1960	1800
18214A	26 mm	400 KN		5.4 mm	1960	1950
18215A	28 mm	462 KN		6.0 mm	1960	2020

The main structure of 11mm Anti Twisting Braided Steel Rope is composed of multiple strands of steel wire rope wound, and there is a specially made steel core wound at the core of the steel wire rope, which can effectively prevent the twisting deformation of the steel wire rope. 11mm Anti Twisting Braided Steel Rope has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. At the same time, it also has good flexibility and high load-bearing capacity.
