11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing

11MM Anti Twist Steel Wire Rope for Single Conductor or OPGW Stringing, made in China, is commonly used to draw overhead single conductor or optic fiber cable on transmission lines.

Send Inquiry

Product Description

Applications:

The use of 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing produced by Lingkai factory made in China.

is essential for mechanical pulling and tensioning release conductors, as it provides the necessary pulling force or leading rope. This 11MM Anti Twist Steel Wire Rope is particularly useful for overhead transmission lines, where it is used to pull single conductors or OPGW.

Moreover, Durable 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing is suitable for use on super-high transmission lines, where it is used to pull bigger conductors, resulting in faster and more efficient transmission line stringing work. One of the main benefits of this wire rope is its unique design, which prevents twisting during pulling, ensuring a more secure and stable work environment.

Overall, the use of 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing 1 Years Warranty is a critical component of any mechanical pulling and tensioning release conductors project, making it an ideal choice for power transmission professionals.

Customization:

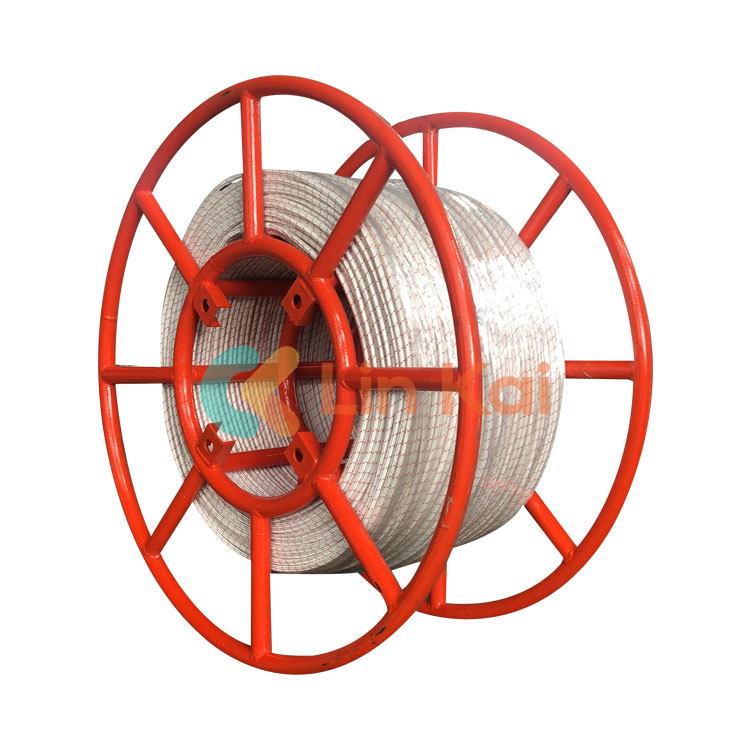

Our brand, Lingkai, offers customizable services for the Quality 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing. This product, with model number Anti-twist steel wire rope, is produced in Ningbo, China and is certified with ISO CE. The minimum order quantity is 2000m and the pricing is based on the latest rates. The packaging details include a drum or reel, and the delivery time takes 7-10 days. Payment terms are T/T and the supply ability is 200 KM PER MONTH.

The 11MM Anti Twist Steel Wire Rope for single conductor or OPGW stringing comes in two different strand options, 12 or 8. It has a high strength broken load and is light and flexible. It is used for lifting, rigging, and towing purposes.

We also offer customization services for the Anti-Twist Steel Wire Rope. The 20mm rope is ideal for pulling four bundled conductors on a transmission line. The 12MM rope is suitable for pulling a single conductor or OPGW.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
