10mm Anti Twisting Steel Wire Rope

Reverse winding technology is used in the production of the 10mm Anti Twisting Steel Wire Rope, effectively preventing the twisting distortion of the steel wire rope. Its qualities include high tensile strength, long service life, good durability, and fatigue resistance. 10mm Anti Twisting Steel Wire Rope is extensively utilized in the industries of construction, lifting, and transportation, made in China with 1 year warranty from manufacturers and suppliers ensuring quality and durability.

Send Inquiry

Product Description

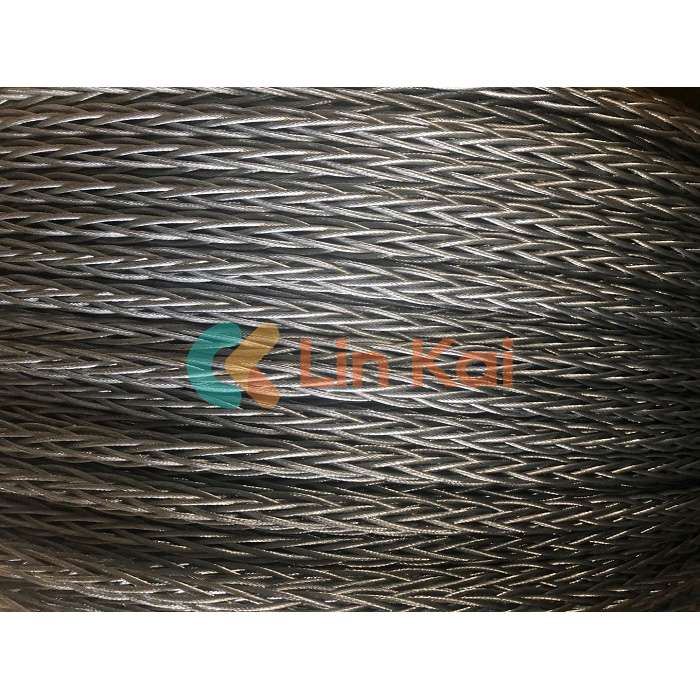

10mm Anti Twisting Steel Wire Rope is carefully braided from eight or twelve strands of extremely flexible and robust galvanized steel wire. The braided steel strand has high flexibility and great rotational stability under tension stress.

10mm Anti Twisting Steel Wire Rope has the capacity to equally distribute pressure throughout the fundamental wires. When stringing overhead transmission lines, using a specific rope can help to increase efficiency.

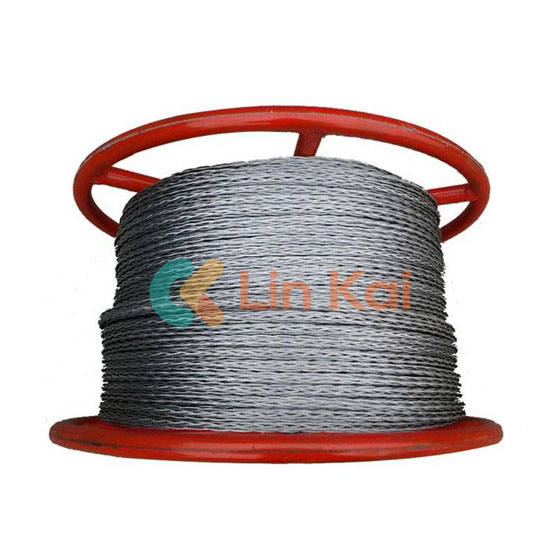

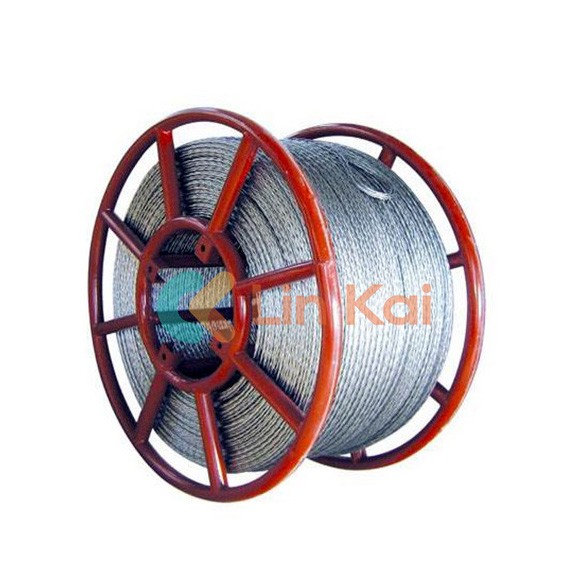

The 10mm Anti Twisting Steel Wire Rope is neatly packed in a steel drum that can be installed straight into the puller's reel winder.

10MM ANTI TWISTING BRAIDED STEEL WIRE ROPE

Anti twisting braided steel wire rope is used as pilot wire rope for pulling conductors or OPGW cable in overhead transmission line stringing operation.

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Lubricated Weight (kg/1000m)
18202A	10	70.00	Φ2.3	1960	350

10mm Anti Twisting Steel Wire Rope is made using reverse winding technology, which can effectively prevent the twisting deformation of the steel wire rope. It has the characteristics of fatigue resistance, good durability, high tensile strength, and long service life. It is widely used in lifting, lifting, conveying, and construction fields.

12 Strands Anti twisting braided steel wire rope

Item No.	Nominal diameter	Breaking Load (KN)	Single strand diameter (mm)	Normal T/S (N/mm²)	Net Weight (kg/1000m)
18201A	9mm	50 kN	2.0mm	1960	250
18202A	10mm	70 kN	2.3mm	1960	356
18203A	11 mm	85 kN	2.5mm	1960	410
18204A	12 mm	100 kN	2.7mm	1960	510
18205A	13 mm	115 kN	3.0mm	1960	620
18206A	14 mm	130 kN	3.2mm	1960	710
18207A	15mm	143 kN	3.3mm	1960	770
18208A	16mm	160 kN	3.5mm	1960	800
18209A	18mm	206 kN	4.0mm	1960	1060
18210A	19mm	236 kN	4.3mm	1960	1210
18211A	20mm	266 kN	4.5mm	1960	1310
18212A	22 mm	313 KN	4.8 mm	1960	1500
18213A	24 mm	342 KN	5.0 mm	1960	1650
18214A	26 mm	400 KN	5.4 mm	1960	1950
18215A	28 mm	462 KN	6.0 mm	1960	2020
