Upright Payout Turntable

The Upright Payout Turntable from Ningbo Lingkai may be tailored for each customer and adjusted based on drum weight. This Upright Payout Turntable is used for stringing construction in line construction. Turntable gadget with vertical cable reel stand that rotates automatically when the wire is pulled. Its characteristics include a small cover slab and a large cover slab, and it weighs 1, 3, and 5 tons.

Send Inquiry

Product Description

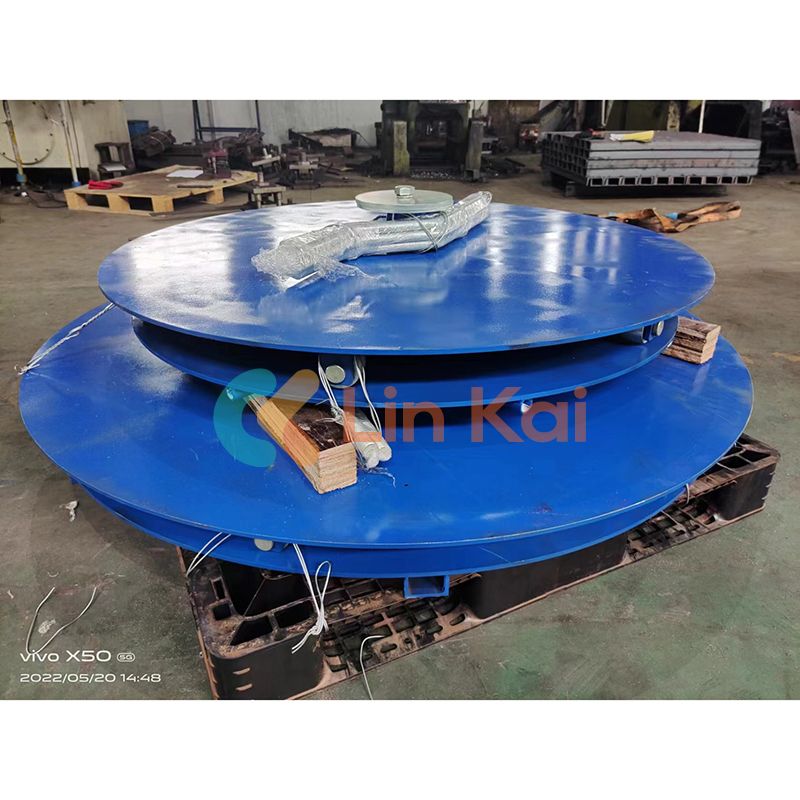

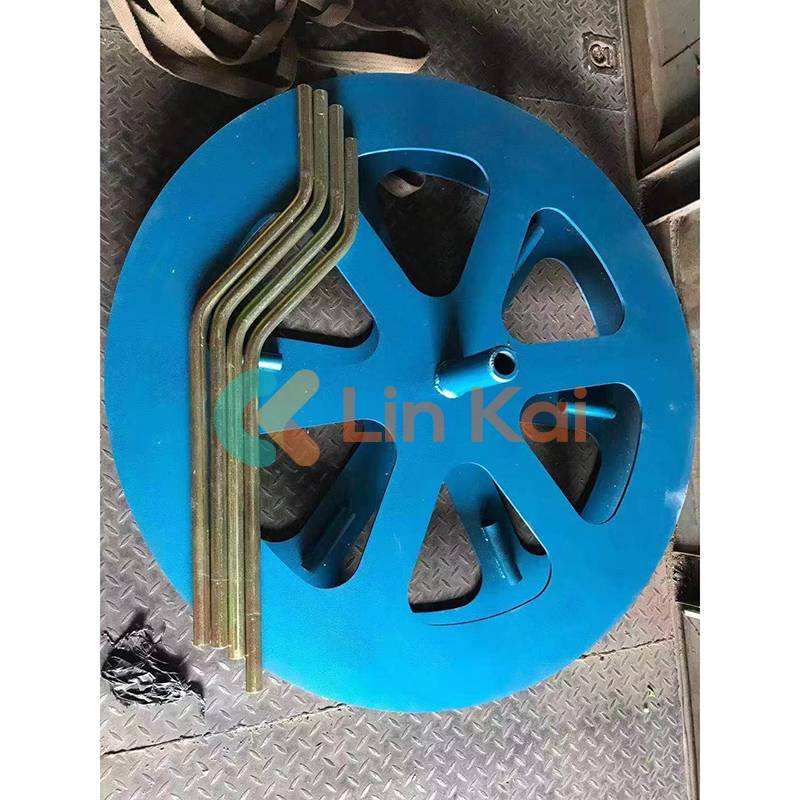

China-made Upright Payout Turntable from Ningbo Lingkai Manufacturing Since the cover slab is composed of the large, complete steel that we cut, it possesses an adequate force and bearing load based on the data. It features two slab sheets with eight and sixteen pairs of bearings in between the slabs. It has smooth rotational motion.

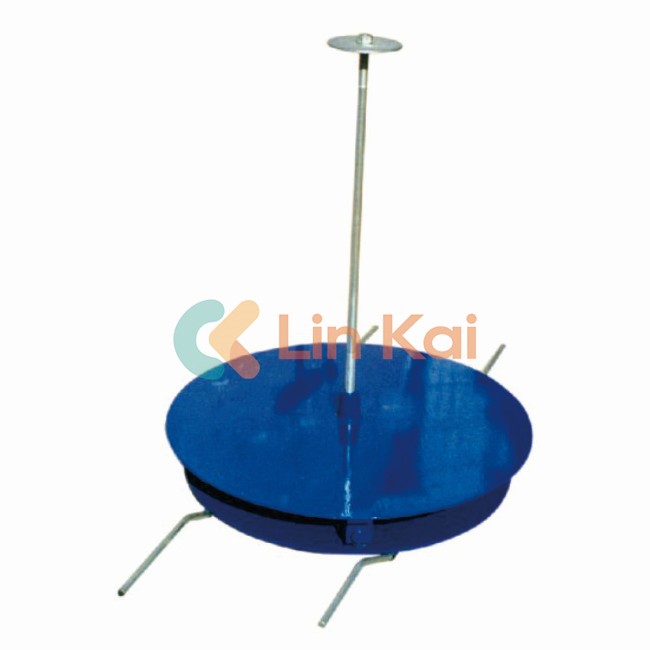

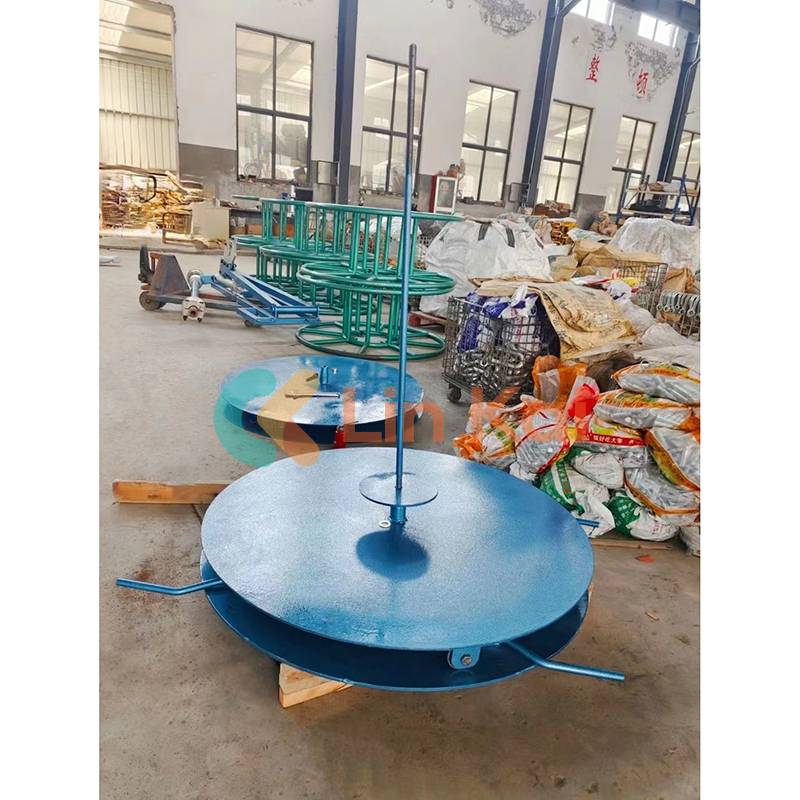

The Upright Payout Turntable is the vertical pay-off frame suitable for supporting the wire reel during line construction. When pulling wires and ground wires, the wire reel can automatically rotate and unfold.

Main Specifications of Upright Payout Turntable

Item Number	Model	Diameter of Reel (mm)	Bearing Load (kg)	Weight (kg)	Features
15131	SIW-1	Φ500	1000	36	Small cover slab
15132	SIW-3A	Φ800	3000	70
15133	SIW-3B	Φ1000	3000	102
15134	SIW-3	Φ800	3000	92	Big cover slab
15135	SIW-5	Φ1500	5000	129	Small cover slab

Besides the Upright Payout Turntable in stock, we also manufacture the 1-5 ton column frame type mechanical cable simple reel stands. It is with the trapezoidal structure, can applied in different kinds of reel specification. Be equipment with hydraulic lifting jack, helps it lifts tools easily. Trundles installed on the bottom make it easy to move too. This is be purchased by set, and if needs the extra axle (Φ60×2200mm seamless steel pipe), just let us know freely. It is apply to adjusting reel by screw mandrel, and wire releasing manually.

Simple Large Capacity Hydraulic Conductor Reel Stands

Item number	Model	Rated load (kN)	Range of adjustable height (mm)	Weight (kg)	Feature
15191	SIL-1	10	450-650	22	Pillar style
15192	SIL-3	30	600-900	24
15193	SIL-5	50	900-1300	27
15201	SIK-3	30	400-1000	30	Frame style
15202	SIK-5	50	710-1270	44	Frame style
15211	SIL-3A	30	620-1000	28	Pillar base-Frame style
15212	SIL-5A	50	900-1300	35	Pillar base-Frame style
