Earth Wire Self Gripping Clamps

Specialized clamping tools known as Ningbo Lingkai wholesale earth wire self gripping clamps are made to offer a safe mechanical mechanism for guy wire and earth wire adjustment and tensioning. Chinese-made earth wire self-grabbing clamps are frequently used to ground commercial and industrial electric installations as well as distribution towers and transmission overhead lines.

Send Inquiry

Product Description

Ningbo Lingkai's model SKDZ Earth Wire Self Gripping Clamps is used for the sagging of earth wires and the adjustment of guy wires. Lingkai at a cheap price Earth Wire Self Gripping Clamps in bulk manufacturing are suitable for the steel strand adjustment of the guyed tower and the ground wire tightening. They are forged from high-quality alloy steel. The jaws are specially designed to hold the ground wire.

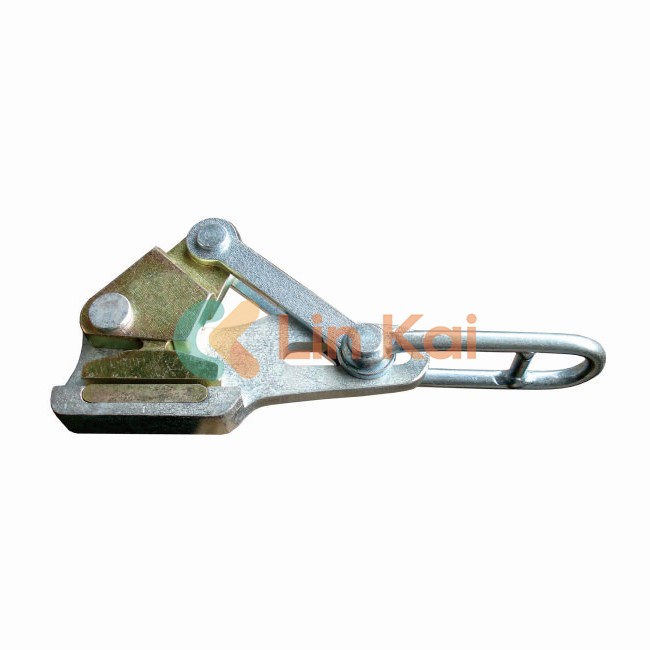

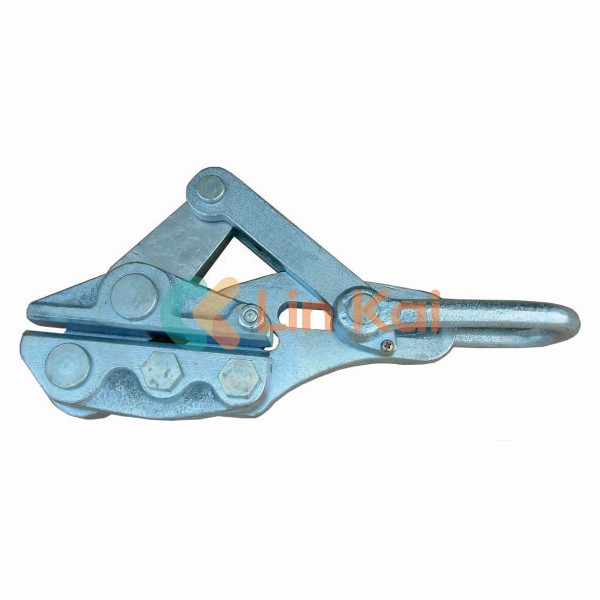

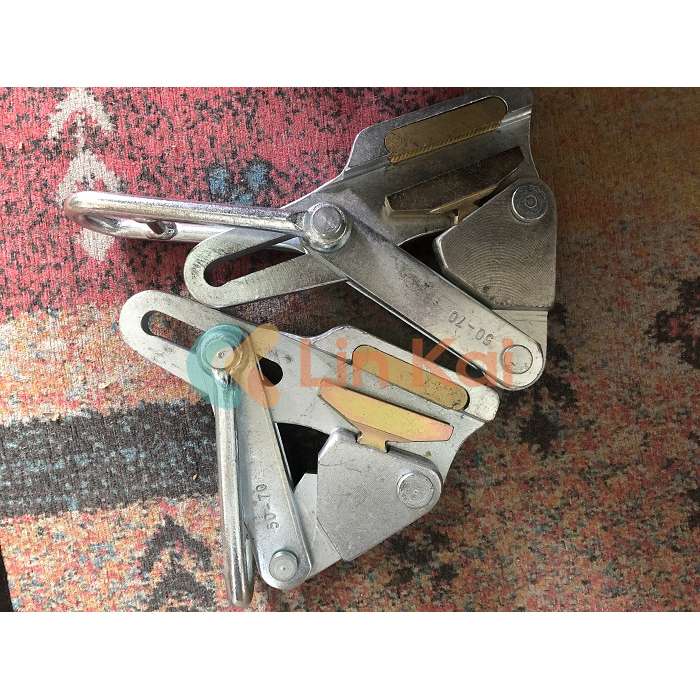

SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13101	SKDZ-0.5	5	15	10-25	10	2
13102	SKDZ-1	10	30	25-50	12	2
13103	SKDZ-2	20	60	50-70	14	2.9
13104	SKDZ-3	30	90	70-120	16	3.5
13105	SKDZ-5	50	150	150-185	20	6.3

Beside of the Earth Wire Self Gripping Clamps, we also manufacture the dual cam earth wire gripper. The gripping pressure of two knurled cams is applied to stranded steel wires. It is used for tensioning of earth wires and adjustment of guy wires. Each model is only suitable for one model of ground wire.

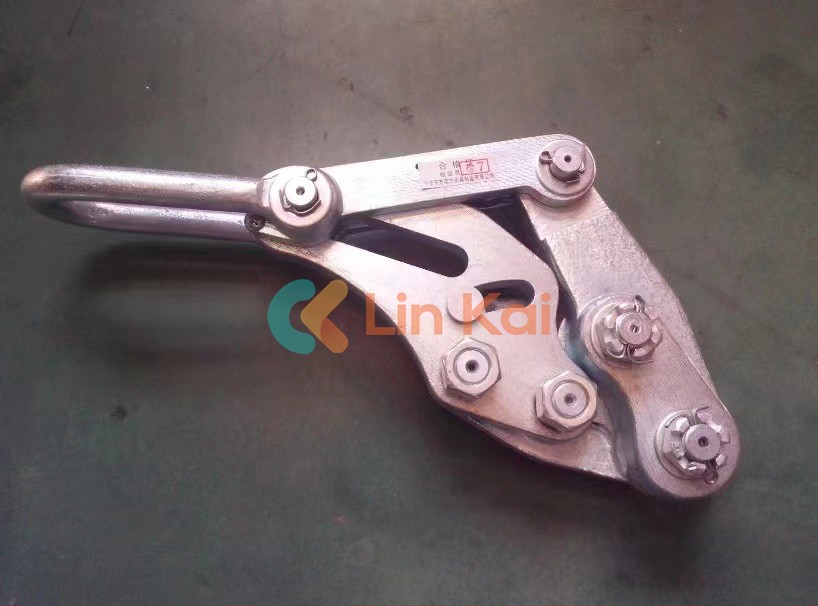

SKDS Dual Cam Type Earth Wire Grips

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13141	SKDS-1	10	20	25-50	11	2.6
13142	SKDS-2	20	40	70-120	13	3.1
13143	SKDS-3	30	60	95-150	15	4.1

SKD type Ground Wire Grips (Automatic come along clamps for ground wires)

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13113	SKD25	10	30	25	9.5	2.5
13114	SKD35	10	30	35	9.5	2.5
13115	SKD50	15	45	50	10	3.5
13116	SKD70	20	60	70	12.5	5.0
13117	SKD100	30	90	100	14	6.0
