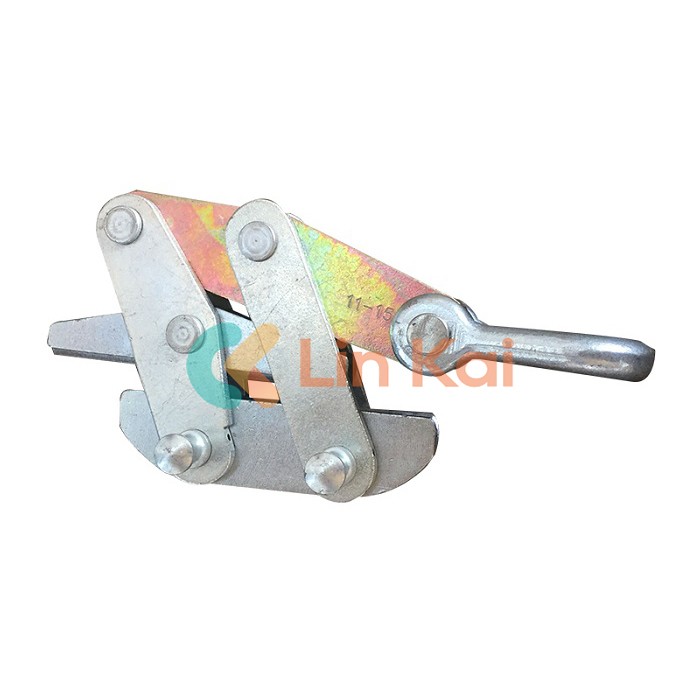

Anti Twist Steel Rope Grippers

Our Anti Twist Steel Rope Grippers made in China are clamps that grasp wire ropes and precisely and steadily regulate their movement. They are manufactured in China by Ningbo Lingkai Manufacture. The purpose of all-come-along clamps is to keep your wire ropes under control and safe, even in the face of severe strain.

Send Inquiry

Product Description

Ningbo Lingkai Manufacture's Anti Twist Steel Rope Grippers are used at the location of overhead transmission lines. The type "V" clipper gap, the low weight, the two-side load symmetry active force characteristics, and the grip anti-twist rope are all used with them. Verify that installing and using the Anti Twist Steel Rope Grippers is simple. Even if you've never used a gripper before, you can clamp and secure your wire rope fast and safely thanks to the user-friendly design of the clamping mechanism. Another feature of the Anti twist Steel Rope Grippers is their ability to reduce damage to your wire rope. By uniformly distributing the weight, the clamping mechanism lowers the possibility of harm from high pressure.

Our Model SKG Anti Twist Steel Rope Grippers in buck wholesale. Commonly data sheet as below.

Item number	Model	Rated Load (KN)	Applicable Anti Twist Steel Rope	Weight (kg)
13155	SKG50N	50	□ 11-15	7.0
13156	SKG70N	70	□ 16-18	8.0
13157	SKG120N	120	□ 19-21 or □ 22-24	11.6
13158	SKG200N	200	□ 26-28 or □ 30	23.5

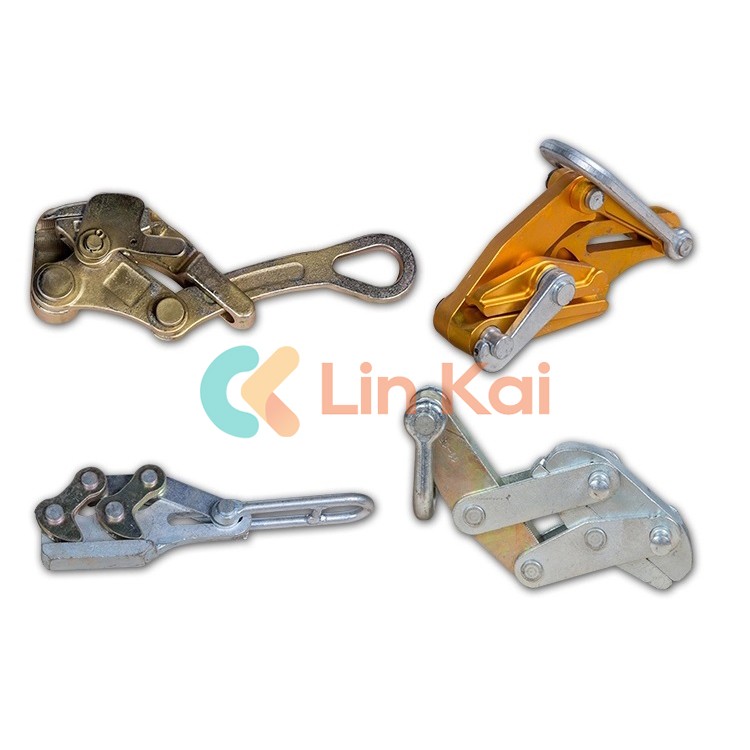

Additionally, we produce other models of anti twist steel rope grippers, too. The ground wire grips of transmission line stringing tools, models SKDZ, SKDS, and SKD Automatic, come along with clamps for ground wires; they are all highly forged with alloy steel, especially the jaws to hold the ground wire. Please freely ask us to inquiry the Earth Wire Grips price.

SKDS Dual Cam Type Earth Wire Grips

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13141	SKDS-1	10	20	25-50	11	2.6
13142	SKDS-2	20	40	70-120	13	3.1
13143	SKDS-3	30	60	95-150	15	4.1

SKD type Ground Wire Grips (Automatic come along clamps for ground wires)

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13113	SKD25	10	30	25	9.5	2.5
13114	SKD35	10	30	35	9.5	2.5
13115	SKD50	15	45	50	10	3.5
13116	SKD70	20	60	70	12.5	5.0
13117	SKD100	30	90	100	14	6.0

SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13101	SKDZ-0.5	5	15	10-25	10	2
13102	SKDZ-1	10	30	25-50	12	2
13103	SKDZ-2	20	60	50-70	14	2.9
13104	SKDZ-3	30	90	70-120	16	3.5
13105	SKDZ-5	50	150	150-185	20	6.3
