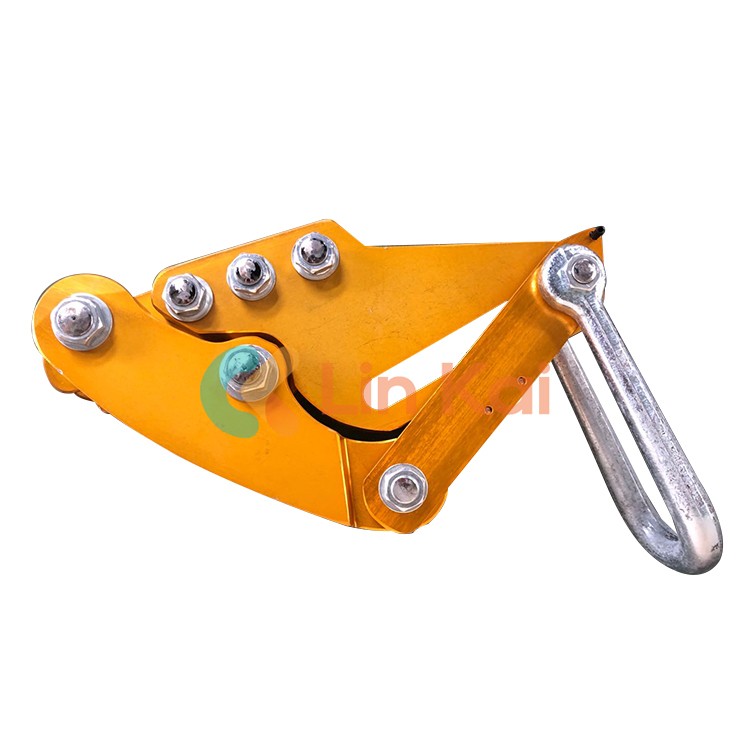

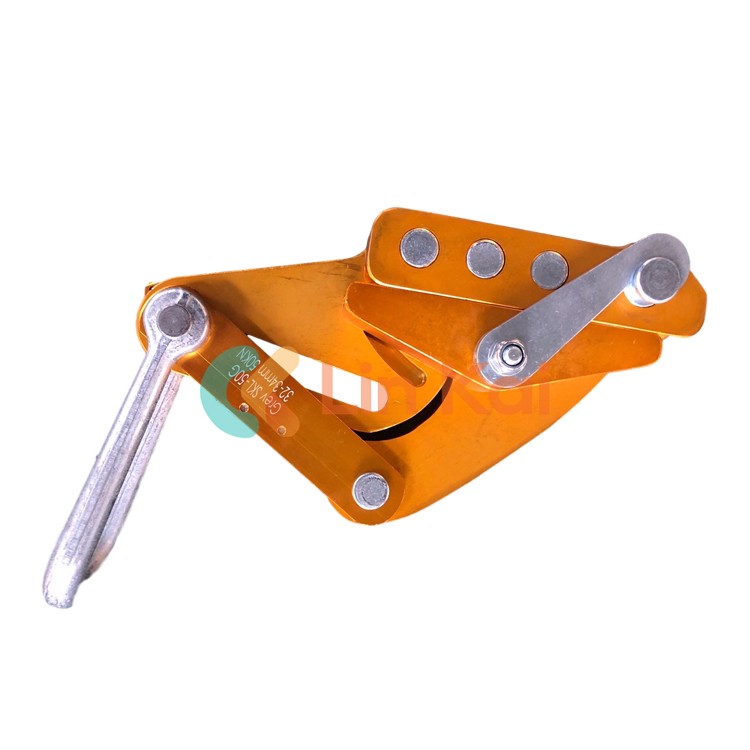

Come Along Clamp For Conductor

The size of Lingkai Come Along Clamp for Conductor replaces the heavy aluminum alloy with a lightweight aluminum magnesium alloy compact. When installing wire and sagging, it is placed at the overhead conductor transmission site to correct sage. The clamp's teeth are extremely deep and smooth to a point. The goal is to clamp the conductor as well you can while maintaining optimal protection for it when it is operating at maximum load. The client's conductor size can be taken into consideration while customizing our Come-Along Clamp for Conductor.

Send Inquiry

Product Description

The Come Along Clamp for Conductor manufactured by Lingkai is not a special tool in the transmission line site. To order this tool, please know your conductor diameter size, and it could be a big range, for example, 25~400 sqmm. One Come Along Clamp For Conductor has a maximum range of 100 sq mm, and the bigger the conductor, the better the customized size of the clamp. This is for the clamp to be more fastening and safety in the high overhead line.

Our Come-Along Clamp for Conductor has the top safety factors demanded, is the top aluminum magnesium alloy compact, and is much different from the aluminum alloy.

Come Along Clamp For Conductor with hook type needed, it is beyond the LGJ ACSR 400. Along with the hook in the Along Clamp For Conductor, it can make sure the force is much bigger and make the whole operation much easier for the worker. Also, safety factors will be good!

Customized Come Along Clamp For Conductor please find us freely any time.

Item number	Model	Rated Load （KN）	Applicable Conductor	Max Open （MM）	Weight （KG）
13221	SKL-7	7	LGJ25-70	14	1.0
13222	SKL-15	15	LGJ95-120	18	1.4
13223	SKL-25	25	LGJ150-240	24	3.0
13224	SKL-40	40	LGJ300-400	32	4.0
13225A	SKL-50C	50	LGJ500-630	36	6.6
13224A	SKL-40A	40	LGJ400	32	4.3
13225	SKL-50A	50	LGJ500	34	7.0
13226	SKL-50B	50	LGJ630	36	7.3
13227	SKL-60	60	LGJ720	38	9.2
13228	SKL-70	70	LGJ900	42	14.0
13229	SKL-80	80	LGJ1000	45	18.0
13229A	SKL-80A	80	LGJ1120	48	18.0
