Ground Wire Grips

Quality Ground Wire Grips are automated come-along clamps for ground wires made by Ningbo Lingkai. They have been heat treated and are composed of alloy steel. We create ground wire grips in bulk, and we use cutting-edge technology in every production process to extend the jaw life. We also manufacture SKDZ Earth Wire Grips, SKDS Dual Cam Type Earth Wire Grips, and SKD Type Ground Wire Grips in addition to these ground wire grips.

Send Inquiry

Product Description

Overhead transmission line GSW cable installation and stringing are accomplished by means of ground wire grips manufactured in China by Ningbo Lingkai Manufacture. Since the GSW cable is composed of hard wire, the ground wire grips' jaws should be built of a particular alloy steel with the goal of providing the strongest possible hold for the GSW cable. Maximum weight capacity for this SKDZ Model Earth Wire Grips is 50KN. Additionally, it is lightweight and appropriate for ground wire tightening and the steel strand adjustment of guyed towers.

SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13101	SKDZ-0.5	5	15	10-25	10	2
13102	SKDZ-1	10	30	25-50	12	2
13103	SKDZ-2	20	60	50-70	14	2.9
13104	SKDZ-3	30	90	70-120	16	3.5
13105	SKDZ-5	50	150	150-185	20	6.3

Application: It is used for sagging of earth wires and adjustment of guy wires.Material: It is forged from quality

SKD type Ground Wire Grips (Automatic come along clamps for ground wires)

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13113	SKD25	10	30	25	9.5	2.5
13114	SKD35	10	30	35	9.5	2.5
13115	SKD50	15	45	50	10	3.5
13116	SKD70	20	60	70	12.5	5.0
13117	SKD100	30	90	100	14	6.0

Ground Wire Grips is used for sagging of earth wires and adjustment of guy wires. Each model is only suitable for one model of ground wire. We apply the material forged from quality alloy steel, and the jaws are specially designed for holding the ground wires.

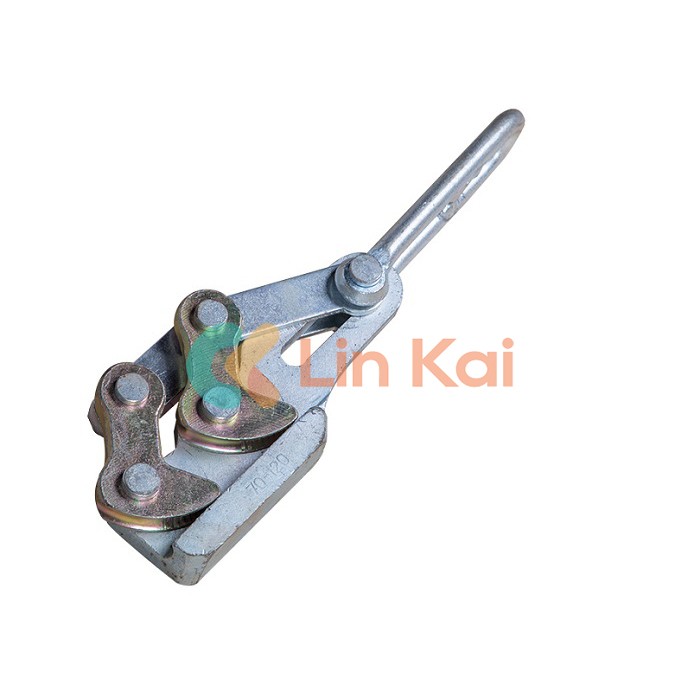

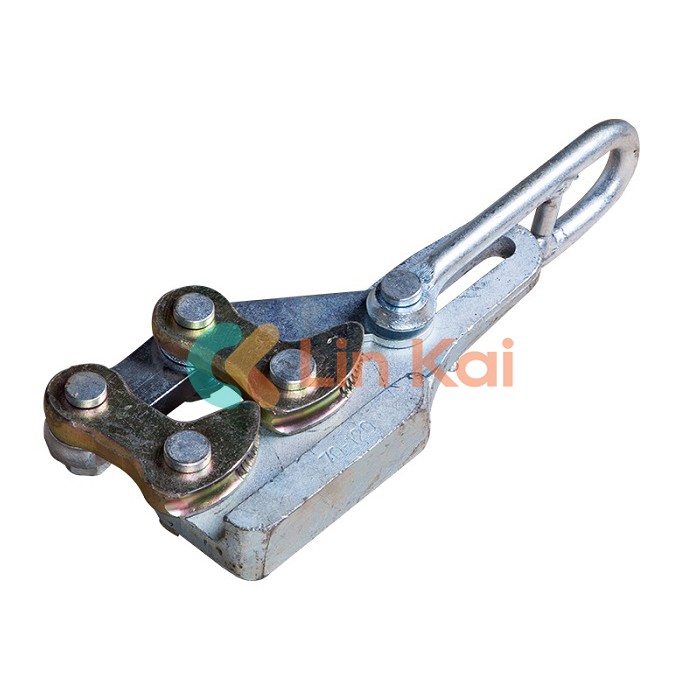

KDS Dual Cam Type Earth Wire Grips

Item No.	Model	Rated Load (KN)	Breaking Load (KN)	Wire Size Range (mm²)	Max. Opening (mm)	Weight (kg)
13141	SKDS-1	10	20	25-50	11	2.6
13142	SKDS-2	20	40	70-120	13	3.1
13143	SKDS-3	30	60	95-150	15	4.1

Application: It is used for tensioning of earth wires and adjustment of guy wires. The gripping pressure of two knurled cams is applied to stranded steel wires.
