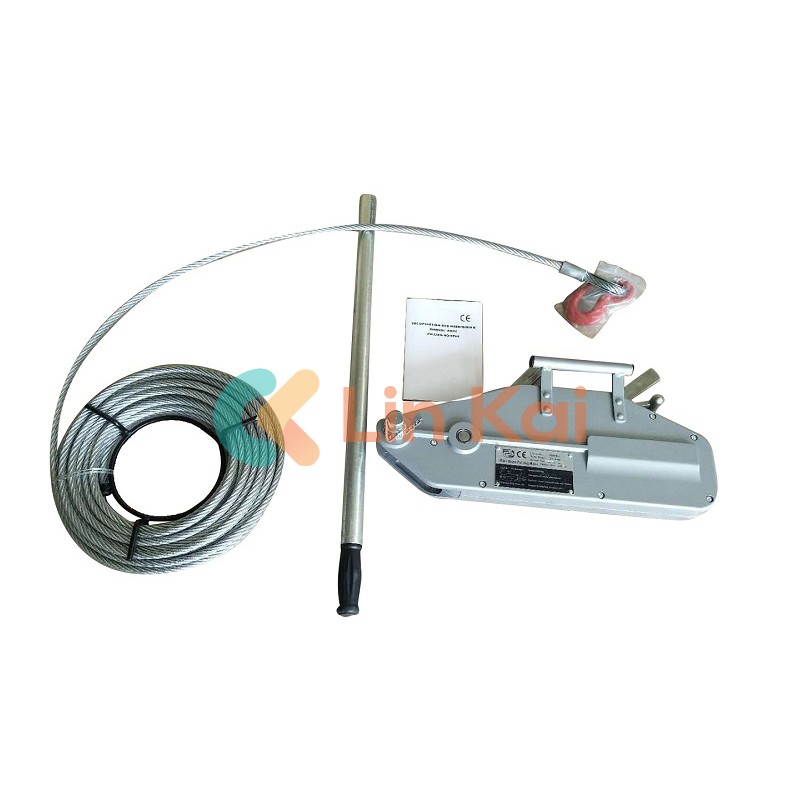

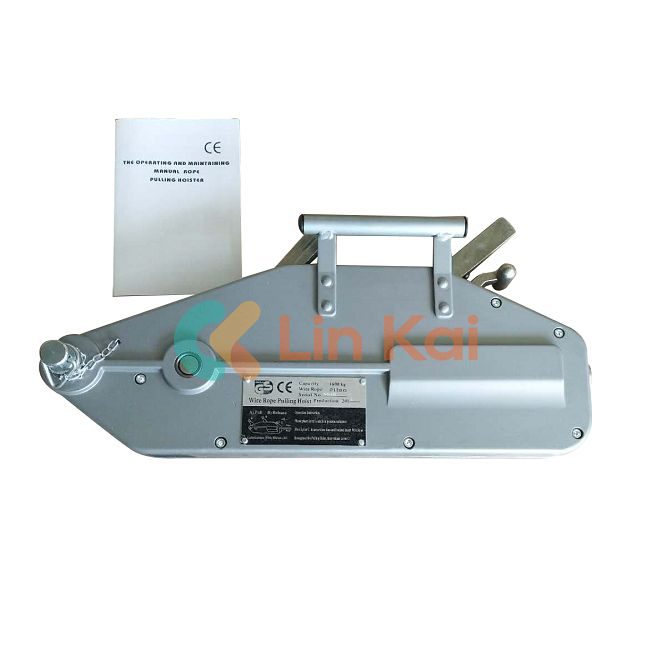

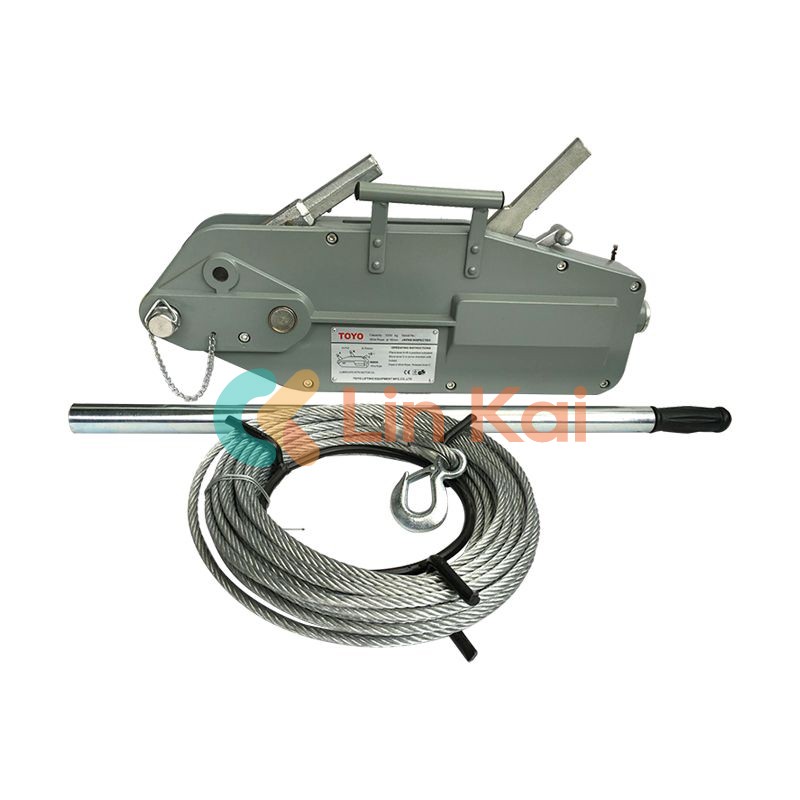

Tirfor Steel Rope Pulling Hand Winches

The Tirfor Steel Rope Pulling Hand Winches from Ningbo Lingkai are hot dip galvanized and constructed with high-strength 104 aluminum alloy. The strength is 1770 MPa, the standard is 20 mm, and the structure is 6X19 W +IWR. You can alter the length. Ningbo lingkai After quenching, our Tirfor Steel Rope Pulling Hand Winches have an appropriate hardness of 40 Cr, which can guarantee safety without causing any harm to the wire rope.

Send Inquiry

Product Description

Ningbo Lingkai’s Tirfor Steel Rope Pulling Hand Winches, made in China in bulk, are used for lifting and tensioning operations during transmission line construction and stringing. It has a ratchet system that is easy to operate and flexible.

Tirfor Steel Rope Pulling Hand Winches made in Ningbo Lingkai manufacture, each one is tested under 1.5 times the rated capacity. The jaws and the connecting axle have been quenched, and the modules have been electroplated. The performance of the Tirfor Steel Rope Pulling Hand Winches will not be affected after the four-fold strength test.

Our Tirfor Steel Rope Pulling Hand Winches have a simple structure and powerful function. The Tirfor Pulling Winch is used for transmission line pulling and conductor sagging operations. It is used with a hand bar and mechanical ratchet system for tightening the steel wire rope. The length of the wire rope is not limited; the standard length of the wire rope is 20m, but customized lengths are available upon request.

Tirfor Steel Rope Pulling Hand Winches data sheet

Item No.	Model	Lifting Load (KN)	Pulling Load (KN)	Steel Rope Dia.(mm)	Stroke (mm)	Steel Rope Length (m)	Weight (kg)
14183	HSS408	8	12.5	Φ8	≥40	20	6.8
14184	HSS416	16	25	Φ11.6	≥40	20	13
14185	HSS432	32	50	Φ16	≥16	20	25
14186	HSS454	54	54	Φ20	≥22	20	52
