Steel Wire Grippers

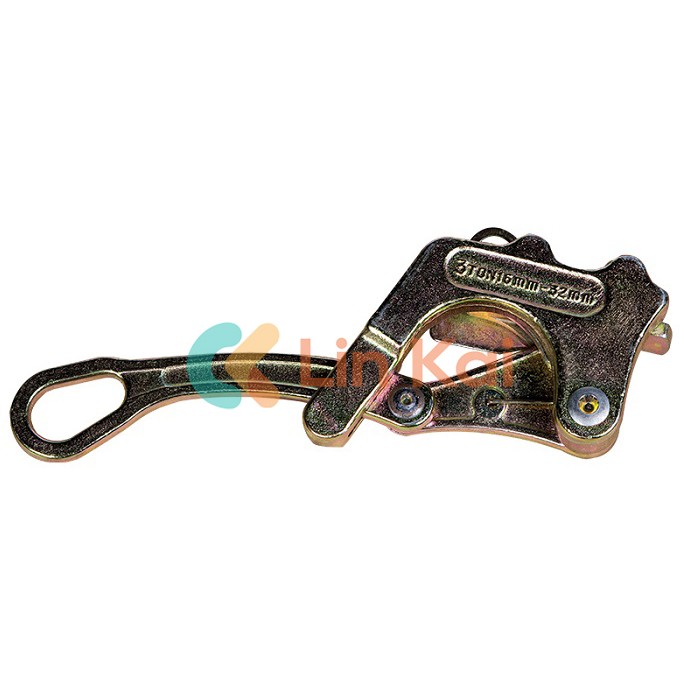

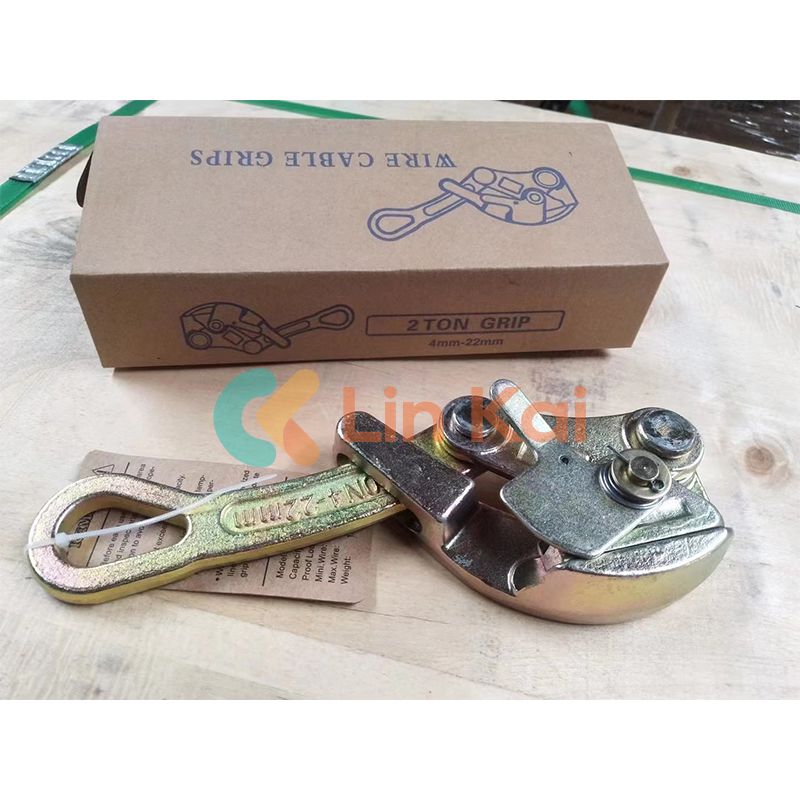

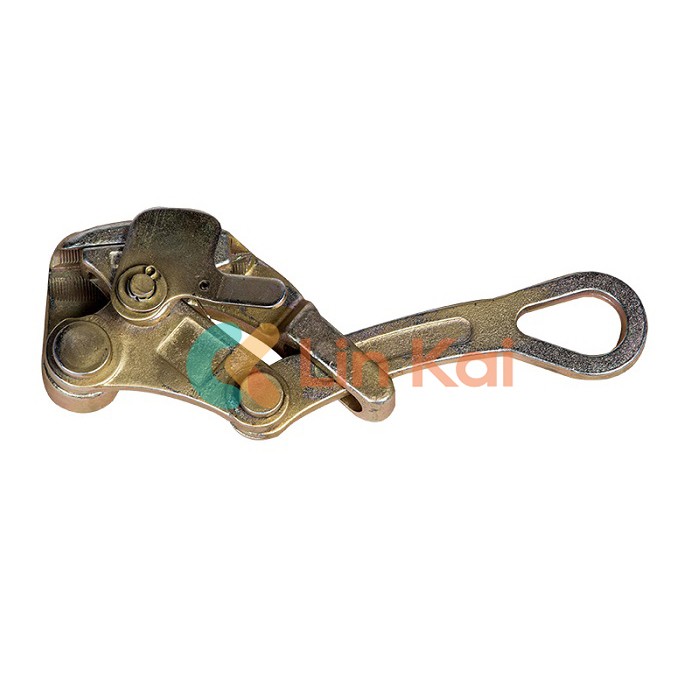

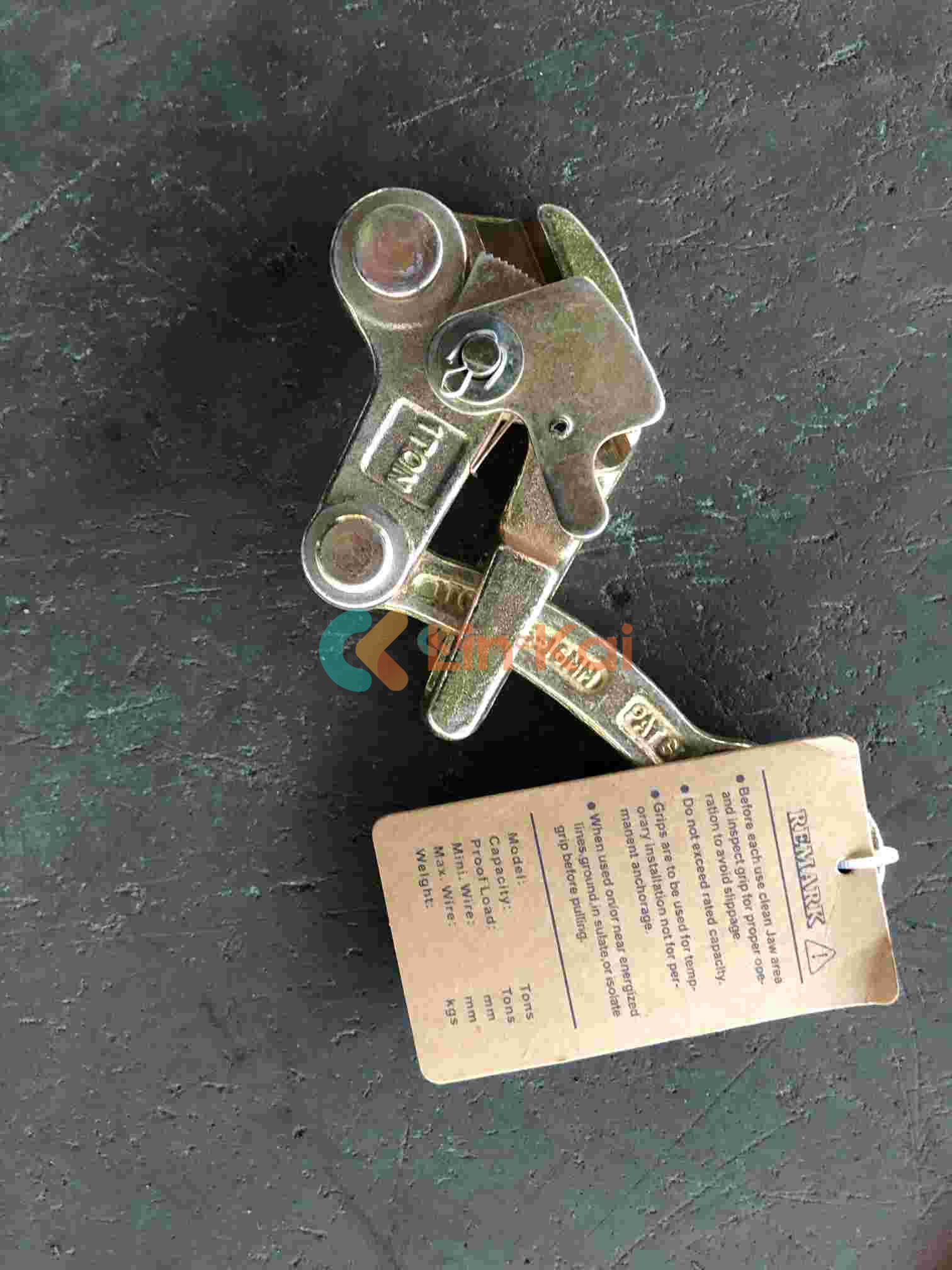

Strong anti-tension and high occlusion strength characterize the steel wire grippers made by Ningbo Lingkai plant, which are global self-gripping come-along clamps for ACSR. These steel wire grippers are brittle and prone to deformation. The jaws include a safety feature that prevents jumpers in part. China-made bulk grippers for steel wire, ACSR, or insulated wire are utilized. It is really inclusive.

Send Inquiry

Product Description


OEM steel wire grippers are made at the Lingkai plant in Ningbo. You are welcome to contact us for information on bulk purchases and the lowest MOQ price. We provide over fifty series of long clamps for the GSW CABLE, OPGW, ADSS, and ACSR, among others. Come-along clamp models differ in the characteristics of the clamping wire, thus each model is constructed from a different raw material. The high-strength alloy steel used in Steel Wire Grippers will grip the GSW cable firmly; the aluminum alloy will apply to the OPGW smoothly; and the aluminum magnesium alloy will be used for the ACSR ADSS conductor.


Steel Wire Grippers technical data sheet

Item number

Model

Rated Load

(KN)

Applicable Wire

Diameter

Weight

(KG)

13310

1000

10

4-14

1.3

13311

2000

20

7-20

1.6

13312

3000

30

16-32

2.8



We also manufacture a lot of automatic come along clamps for the ground wire, except the steel wire grippers, like SKDZ model earth wire grips, and SKD type ground wire grips and the SKDS Dual Cam Type Earth Wire Grips. They are all forged from quality alloy steel, and the jaws are specially designed for holding the ground wires.



SKDZ Model Earth Wire Grips (Automatic come along clamps for ground wires)


Item No.

Model

Rated Load (KN)

Breaking Load (KN)

Wire Size Range (mm²)

Max. Opening (mm)

Weight (kg)

13101

SKDZ-0.5

5

15

10-25

10

2

13102

SKDZ-1

10

30

25-50

12

2

13103

SKDZ-2

20

60

50-70

14

2.9

13104

SKDZ-3

30

90

70-120

16

3.5

13105

SKDZ-5

50

150

150-185

20

6.3


SKD type Ground Wire Grippers (Automatic come along clamps for ground wires)


Item No.

Model

Rated Load (KN)

Breaking Load (KN)

Wire Size Range (mm²)

Max. Opening (mm)

Weight (kg)

13113

SKD25

10

30

25

9.5

2.5

13114

SKD35

10

30

35

9.5

2.5

13115

SKD50

15

45

50

10

3.5

13116

SKD70

20

60

70

12.5

5.0

13117

SKD100

30

90

100

14

6.0

SKDS Dual Cam Type Earth Wire Grips

SKDZ is used for tensioning of earth wires and adjustment of guy wires. The gripping pressure of two knurled cams is applied to stranded steel wires.



Item No.

Model

Rated Load (KN)

Breaking Load (KN)

Wire Size Range (mm²)

Max. Opening (mm)

Weight (kg)

13141

SKDS-1

10

20

25-50

11

2.6

13142

SKDS-2

20

40

70-120

13

3.1

13143

SKDS-3

30

60

95-150

15

4.1
