Integrated Reel Stands

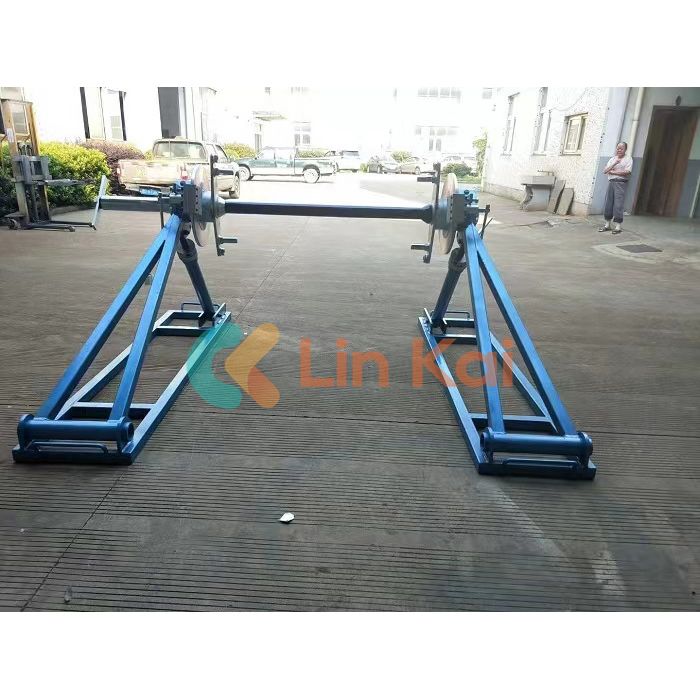

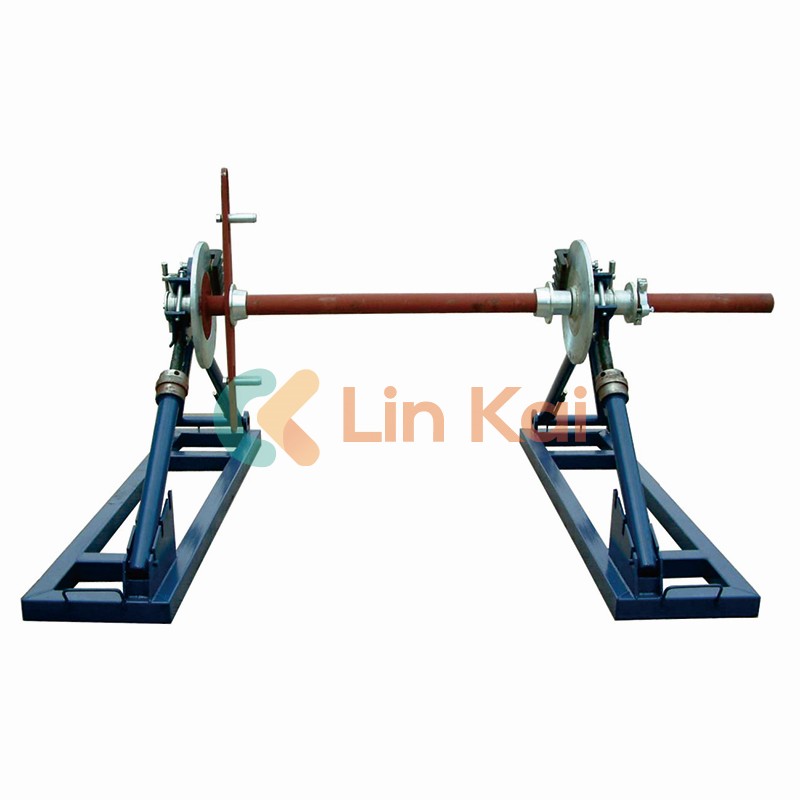

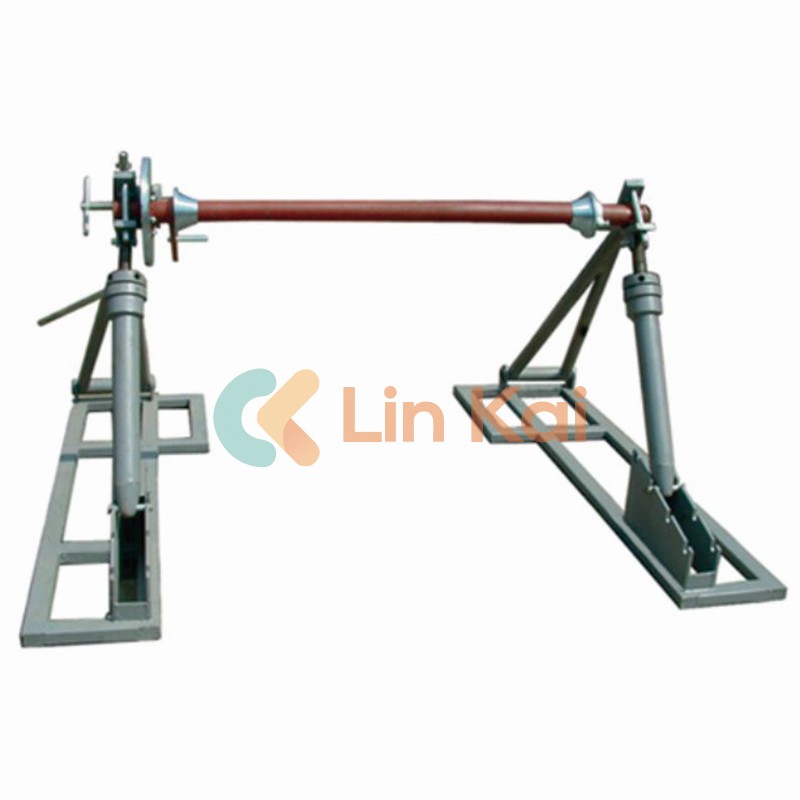

The integrated reel stands made by Ningbo Lingkai are cable reel stands with a removable design. It is employed for overhead line stringing, supporting the cable reel, and stringing lines at building sites. Our China-made integrated reel stands include 3 tons, 5 tons, and 7 tons of the finest top #8 steel. There are two disc brakes on the SIPZ 7 ton. Because each model can be taken apart into three parts, transporting them is made easier.

Send Inquiry

Product Description

At the Ningbo Lingkai facility in China, integrated reel stands are manufactured. These are brake reel stands with disc tension. When used for mechanical traction wire laying or tension stringing, it may sustain the reel. Reels may be braked using integrated reel supports as well. This device has three components that may be separated for convenient traveling. Our SIPZ-7-type product has a double-disc braking construction built into it.

Detachable type drum brakes spiral rise machinery wire rope reel support conductor in overhead line stringing construction site. Data sheet of Integrated Reel Stands as below.

Item Number		15141	15142	15143
Model		SIPZ3A	SIPZ5A	SIPZ-7
Applicable Reel	Diameter of Coil (mm)	Φ900~1600	Φ1600~2400	Φ1800~2500
	Width of Coil (mm)	≤1350	≤1350	≤1700
	Diameter of Axle Hole (mm)	Φ65-100	Φ65-100	Φ120
	Maximum Weight (kg)	3000	5000	7000
Braking Torque (N·m)		1000	1000	2000
Pay-off Speed (m/min)		80	80	80
Weight (kg)		200	215	480

We also manufacture the Large Capacity Hydraulic Conductor Reel Stands. it is connecting the hydraulic tension and hydraulic puller through the quick coupling.

Item number		15155	15158
Model		SIYZ10	SIYZ15
Applicable reel	Diameter of coil (mm)	Φ2000～3000	Φ2000～2800
	Max width of coil (mm)	1700	1950
	Diameter of axle hole (mm)	Φ125-130
	Maximum weight (kg)	10000	15000
Max working torque (N.m)		3300	4500
Max Speed (rpm)		45	45
Axle diameter		Φ94	Φ119
Weight (kg)		597	789
Length of hydraulic tube		15	20
