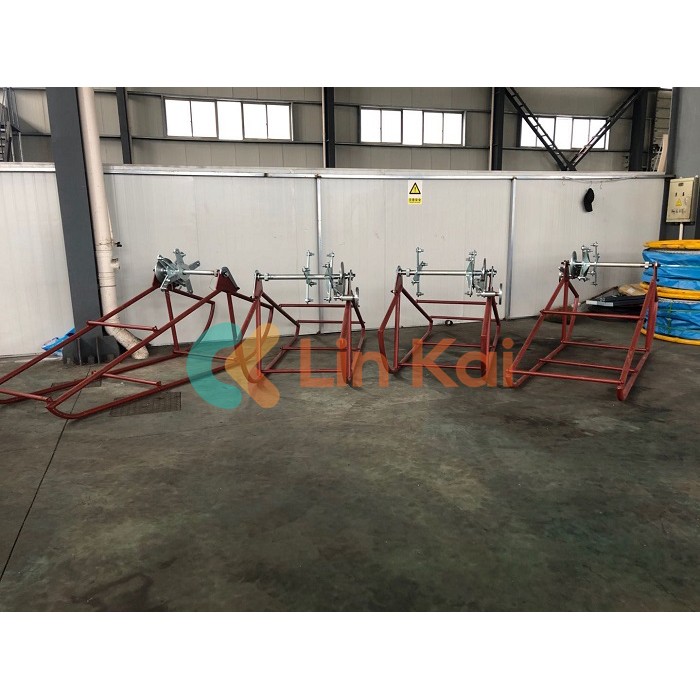

Cradle Reel Elevator

The overhead line transmission manufacturer, China Ningbo Lingkai, is the supplier of Cradle Reel Elevator; this type of elevator may be used to hold big cable reels in the laying conductor at the stringing site. Brakes are an option for the Cradle Reel Elevator made in China, and the GSP series reel is customizable.

Send Inquiry

Product Description

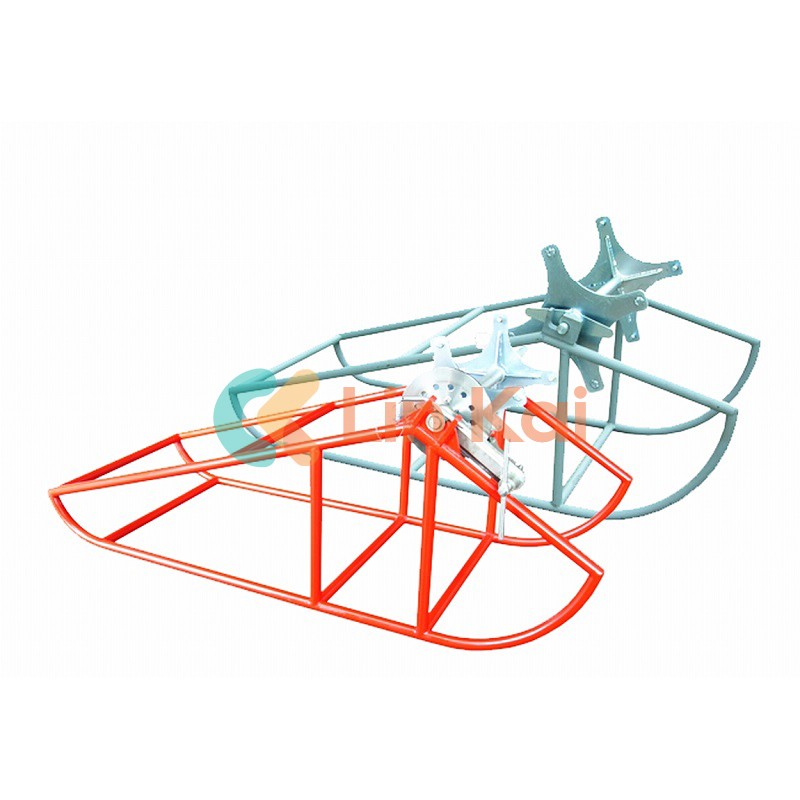

Cradle Reel Elevator manufactured by Ningbo Lingkai customized brake frame electric wire rope reel stand for support anti-twisting wire rope in GSP series reel has good stability and can be pulled directly.

Our elevator has the item number “J” series Cradle Reel Elevator without brake and the item number “Z” series Cradle Reel Elevator with brake. And the Cradle-Reel Elevator

can be customized.

Item number	Model	Matched reel
0629	SE-950J	GSP950
0630	SE-1200J	GSP1200
0631	SE-1400J	GSP1400
0632	SE-1600J	GSP1600
0633	SE1200Z	GSP1200
0634	SE1400Z	GSP1400
0635	SE1600Z	GSP1600
0636	SE950Z	GSP950

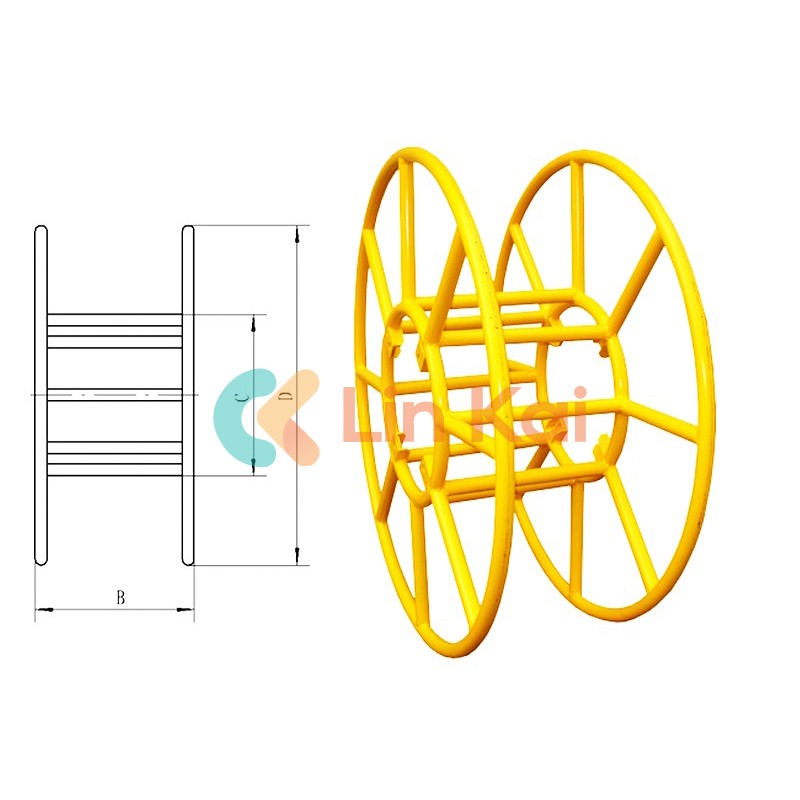

GSP series Reel

This GSP series Reel stand has batter be clearly indicated in the contract, if it is required by our customers.

Item number		Model	Reel Stand Dimension(MM)	Weight(KG)
Reel	Stand	Model	Reel Stand Dimension(MM)	Reel	Stand
07125A	07128A	950	Φ950xΦ400x450	48	20
07125B	07128B	1200	Φ1200xΦ570x560	65	30
07125C	07128C	1400	Φ1400xΦ570x560	74	40
07125D	07128D	1600	Φ1600xΦ570x560	102	50
07125E	07128E	1900	Φ1900xΦ570x560	119	70
