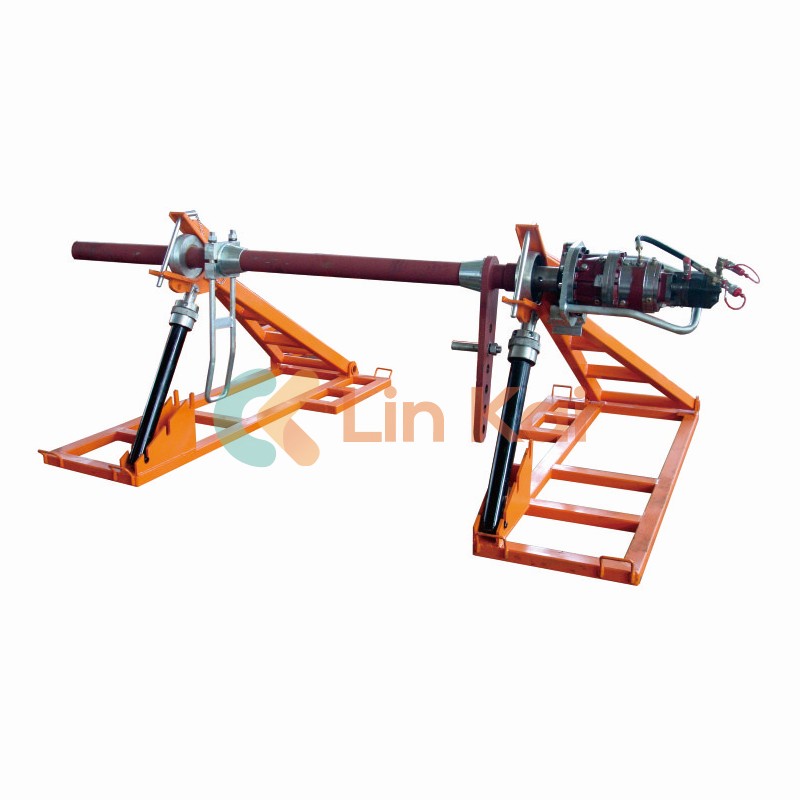

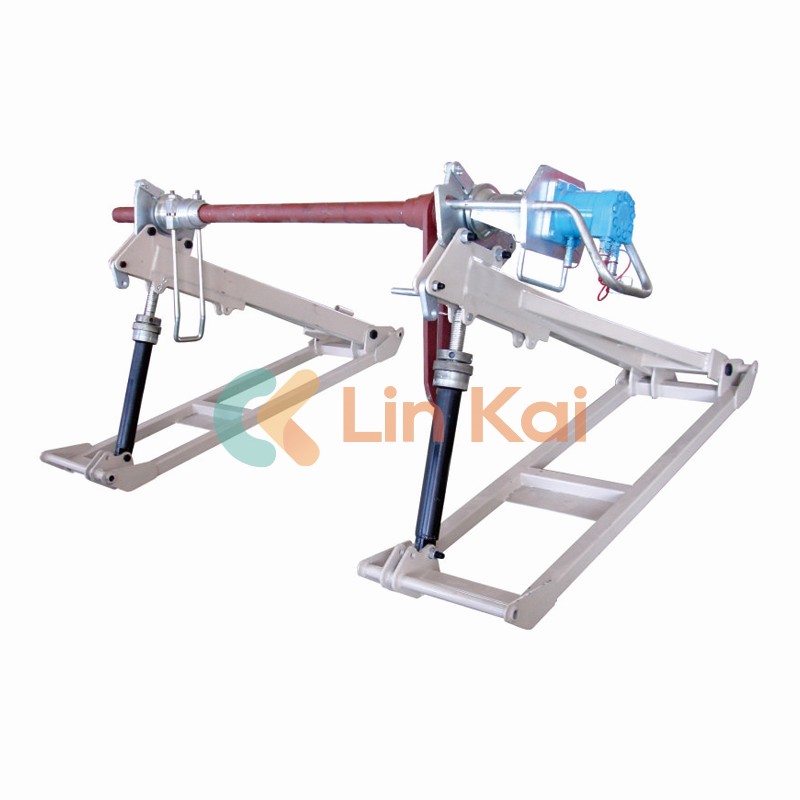

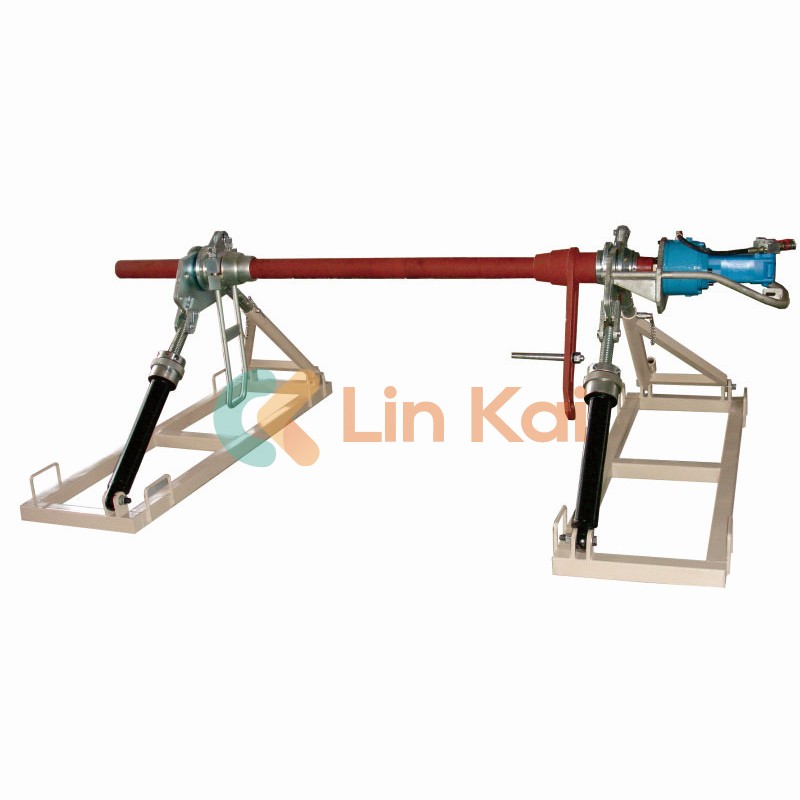

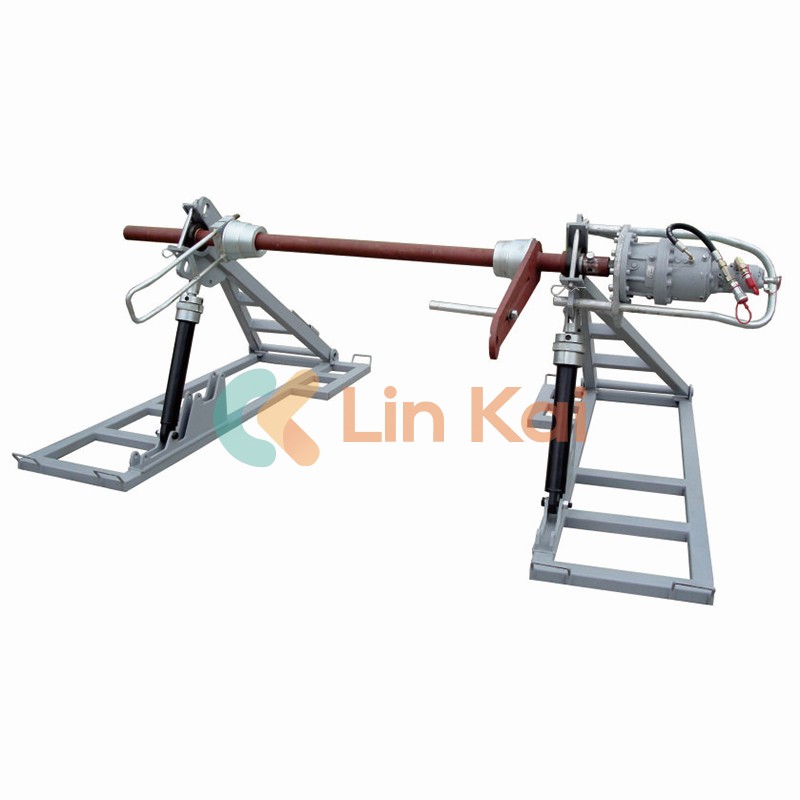

Conductor Reel Stands

China is where Ningbo Lingkai manufactures its conductor reel stands. These hydraulic conductor reel stands with huge capacities are used at the overhead line stringing site. Through the fast coupling, they are connected to a hydraulic tensioner or hydraulic puller tensioner. Please inform us to make extra preparations for you, and ensure that the coupling is right while connecting to the machine.

Send Inquiry

Product Description

Conductor reel stands are in stock at Ningbo Lingkai Manufacture, and we imported the motors installed in the hydraulic conductor reel stands. It makes this large-capacity reel highly efficient in stringing line sites and lasts a long time.

While a hydraulic puller tensioner is used to stretch and tension conductor wire, hydraulic conductor reel, conductor reel stands supports offer a sturdy platform for holding and transporting conductor reels. The hydraulic puller tensioner coupling ought to inform us, and our coupling is compatible with all machine models; the principle remains the same, but we must comply with our instructions to complete this coupling. Meanwhile, there is freedom to choose and modify the hydraulic tube's length.

Large Capacity Hydraulic Conductor Reel Stands data sheet

Item number		15155	15158
Model		SIYZ10	SIYZ15
Applicable reel	Diameter of coil (mm)	Φ2000～3000	Φ2000～2800
	Max width of coil (mm)	1700	1950
	Diameter of axle hole (mm)	Φ125-130
	Maximum weight (kg)	10000	15000
Max working torque (N.m)		3300	4500
Max Speed (rpm)		45	45
Axle diameter		Φ94	Φ119
Weight (kg)		597	789
Length of hydraulic tube		15	20
