Wire Take up Winch

Ningbo Lingkai Manufacture’s Wire Take Up Winch is a motorized cable take up winch machine. It is for withdrawing the old conductor or earth wire in the transmission line stringing and the maintenance operation. Our wire take up winch has 1 ton, 3 ton, and 5 tons, and the winding drum size can be customized, while the power can be gas, diesel, or electric. So when ordering this wire take-up winch, it can be especially made per your demands.

Send Inquiry

Product Description

Wire take up winch made in China by Ningbo Lingkai Manufacture is a take-up winch that can be used for pulling small cables on site or retrieving old conductor and earth wire in a conductor changing or OPGW changing project.

Our customized wire take up winch has different power engines and different speeds, so when you inquire about this machine, you can freely share with us your site demands, and we will technically propose one type and design one type for you on site. A motorized cable take-up winch machine is widely used for withdrawing the old conductor or earth wire in transmission.

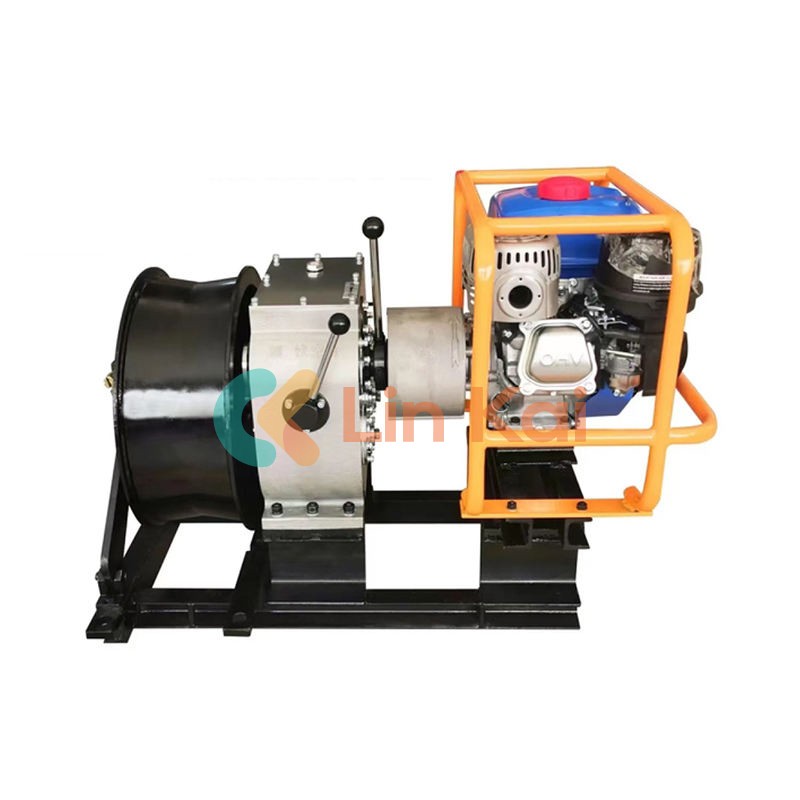

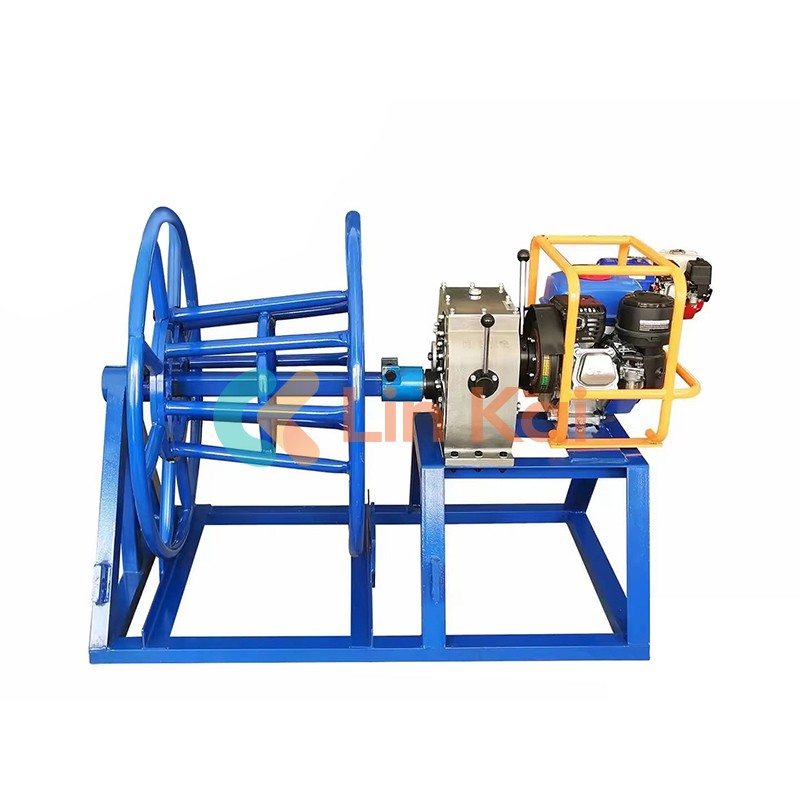

Motorized cable wire take up winch machine, the machine can be equipped with a Honda engine, a Yamaha engine, or a famous diesel domestic engine. And the steel drum can be detachable to change the old conductor or earth wire

Item No.		08151	08152
Model		SJZ-10B	SJZ-10C
Engine	Model	GX160 Gasoline engine	Z170F Diesel engine
	Power (hp)	5.5	4
	Speed (rpm)	1500	2600
Max. take-up force (KN)		10	10
Max. Take-up speed (m/min)		41	41
Reel Capacity (m)	ACSR95mm²	600	600
	ACSR120mm²	460	460
	ACSR185mm²	320	320
Weight (kg)		150	165
Dimension (m)		1.2 x 0.9 x 1	1.2 x 0.9 x 1

Wire Take-up Winch Machine

Item No.		08192	08193	08194
Model		LJ-300B	LJ-500A	LJ-500
Diameter of Capstans (mm)		Φ300	Φ500	Φ500
Petrol Engine	Model	Petrol GX270	R175A	Petrol GX270
	Power (hp)	9	6	9
	Speed (rpm)	3600	2600	3600
Pull force (KN) / Pull speed (m/min)	I	25/8.5	16/10.5	16/13.6
	II	15/13.4	10/16.6	10/21.5
	III	6/33.5	4/40.8	4/53.6
	Reverse	/9.6	/11.8	/15.3
Dimension (mm)		870 x 620 x 650	920 x 700 x 710	900 x 700 x 710
Weight (kg)		140	190	150
